Name: 8 Ports 10/100Mbps ,RJ45/SFP+2 Combo Port, Gigabit Managed Industrial Switch
Brand: BISMON
SKU: B1IPS31108FM
Price: 9136.00 THB
Availability: InStock

8 Ports 10/100Mbps ,RJ45/SFP+2 Combo Port, Gigabit Managed Industrial Switch

▸ คำอธิบายภาษาไทย
B1-IPS31108FM เป็นสวิตช์อีเธอร์เน็ตมัลติเจอร์ขั้นเดียว (Managed Industrial Switch) ที่พัฒนาโดย BISMON มีพอร์ต 8 ช่อง 10/100Mbps แบบ RJ45 และพอร์ตอัพลิงค์ 2 ช่อง 10/100/1000Mbps พร้อมพอร์ต Combo SFP 2 ช่องสำหรับเชื่อมต่อเส้นใยแก้ว ซึ่งแต่ละพอร์ตสามารถรองรับการส่งข้อมูลแบบเต็มความเร็ว อุปกรณ์นี้มีระบบความปลอดภัยที่สมบูรณ์ รองรับการจัดการ ACL/QoS และฟังก์ชัน VLAN ที่ย

Part number : B1-IPS31108FM

Brand : BISMON

Price : 9,136.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 pcs

Size : 165*148*54mm

Warranty : 3 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

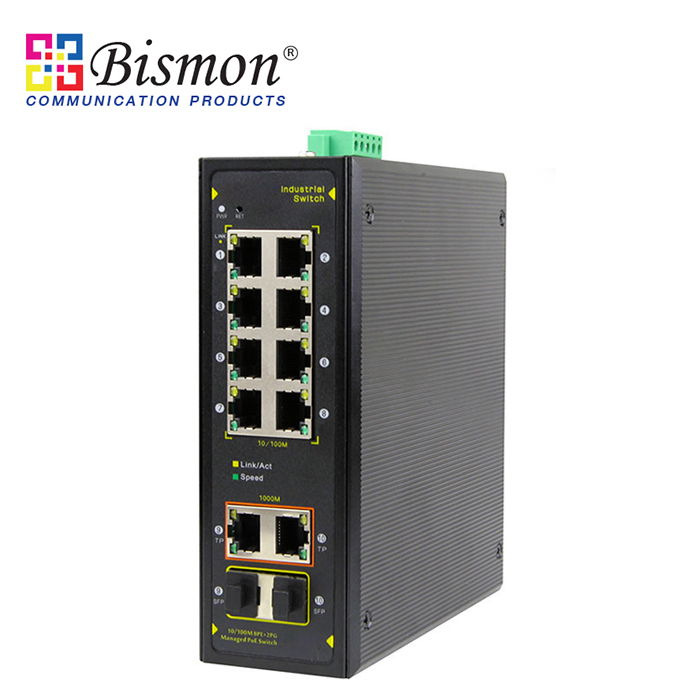

The B1-IPS31108FM is a gigabit uplink managed industrial Ethernet switch independently developed by BISMON. It has 8*10/100Base-TX RJ45 ports and 2*10/100/1000Base-T uplink RJ45 ports and 2*100/1000Base-X uplink SFP fiber combo ports. Each port can support wire-speed forwarding.

The B1-IPS31108FM adopts a new generation of high-performance hardware and software platform, supports a complete security protection mechanism, perfect ACL/QoS strategy and flexible VLAN function for easy management and maintenance, and meets users' needs for easy management, high security and low-cost networking of network equipment. It adopts aluminum alloy housing and has excellent adaptability to industrial site environments (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.). It is suitable for industrial scenarios such as intelligent transportation, rail transportation, power industry, mining, petroleum, shipping, metallurgy, and green energy construction to build economical, efficient, stable, and reliable communication networks.

FEATURE

100M access, uplink RJ45/SFP fiber combo port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

- Support RJ45 port and Gigabit uplink RJ45/SFP fiber combo port, which enables users to flexibly build networking to meet the needs of various scenarios.

Security

- IP+MAC+Port binding function.

- Support port isolation and port broadcast storm suppression.

- Support 802.1X authentication, provide authentication function for LAN computers, and control the authorization status of controlled ports according to the authentication results.

Strong business processing capability

- Support STP/RSTP/MSTP production tree protocol, and eliminate Layer 2 loops to achieve link backup.

- Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs, and support QinQ configuration.

- Support static aggregation and dynamic aggregation to effectively increase link bandwidth to achieve load balancing, and link backup to improve link reliability.

- Support QoS, three priority modes based on port, based on 802.1P, and based on DSCP, and four queue scheduling algorithms of Equ, SP, WRR, and SP+WRR.

- Support ACL to filter data packets by configuring matching rules, processing operations, and time permissions, and provide flexible security access control strategies.

- Support IGMP V1/V2 multicast protocol, IGMP Snooping meets the access requirements of multi-terminal high-definition video surveillance and video conferencing.

Stable and reliable

- CCC, CE, FCC, RoHS.

- The user-friendly panel can show the device status through the LED indicator of PWR and Link.

- Low power consumption, no fan, Aluminum alloy housing, and excellent heat dissipation to ensure the stable operation of the switch.

Easy O&M management

- Support CPU monitoring and memory monitoring.

- Support HTTPS, SSLV3, SSHV1/V2, and other encryption methods, making management more secure.

- Support Web network management, SNMP (v1/v2/v3), and other diversified management and maintenance.

- Support RMON, system log, and port traffic statistics to facilitate network optimization and transformation.

- Support LLDP to facilitate the network management system to query and judge the communication status of the link.

DIMENSION

10-port managed industrial Ethernet switch, industrial Ethernet switch

TECHNICAL SPECIFICATION

Model	B1-IPS31108FM
Interface Characteristics
Fixed Port	810/100Base-TX RJ45 ports (Data) 210/100/1000Base-T uplink RJ45 ports (Data) 2*100/1000Base-X uplink SFP fiber ports (combo ports) (Data) 2 sets V+, V- redundant DC power ports (5P Phoenix terminal)
Ethernet Port	Port 1-8 can support 10/100Base-TX and Port 9-10 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	14.8Gbps (non-blocking)
Forwarding Rate @64byte	4.17Mpps
MAC	16K
Buffer Memory	4M
Jumbo Frame	10K
LED Indicator	Power: PWR (Green), Network: Link, Link/Act (Yellow), Rate: Speed (Green)
Reset Switch	Yes, Press and hold the reset switch for 10s and release it to restore the factory settings
Power Supply
Working Voltage	DC12-48V, 5P industrial phoenix terminal, support anti-reverse protection
Power Consumption	Standby<8W, Full load<12W
Power Supply	No, optional 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	16514854mm
Net /Gross Weight	0.9kg/1.15kg

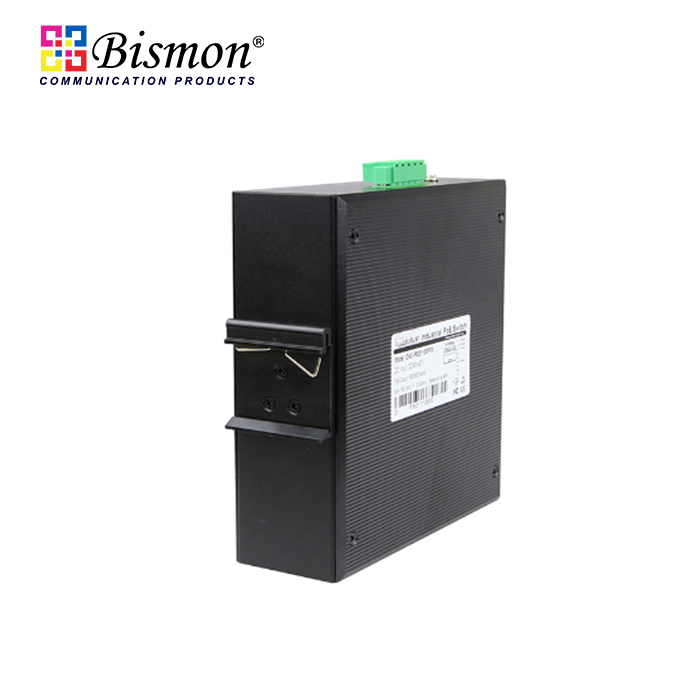

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	IEEE 802.3x flow control (Full duplex) Broadcast storm control based on port speed Limit the speed of the message traffic at the inbound and outbound ports mini granularity is 64Kbps
VLAN	4K VLAN based on port, IEEE 802.1q, QinQ configuration, VLAN based on protocol
Port Aggregation	LACP, Manual aggregation, Max 5 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Multicast	MLD Snooping, Multicast VLAN, IGMP Snooping v1/v2/v3, Max 64 multicast groups, Fast log out
Port Mirroring	Bidirectional data mirroring based on port
QoS	Diff-Serv QoS, Priority Mark/Remark Queue Scheduling Algorithm (SP,WRR,SP+WRR) 8*Output queues of each port, 802.1p/DSCP priority mapping
ACL	The L2-L4 packet filtering function can match the first 80 bytes of the message and provide ACL definition based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	IP+MAC+port binding function, Port isolation, Port broadcast storm suppression
DHCP	DHCP Client, DHCP Snooping, DHCP Relay
Management	NTP clock, One-click restore, SNMP V1/V2/V3, System work log, Web network management (https)

Product Detail

8 Ports 10/100Mbps ,RJ45/SFP+2 Combo Port, Gigabit Managed Industrial Switch

Download Datasheet
