8 Ports RJ45 10/100/1000M with 2 SFP uplink PoE Managed Switch (130W) ราคาเท่าไหร่ และสั่งซื้อได้ที่ไหน?

8 Ports RJ45 10/100/1000M with 2 SFP uplink PoE Managed Switch (130W) จำหน่ายโดย BISMON ตัวแทนจำหน่ายอย่างเป็นทางการในประเทศไทย สอบถามราคาได้ที่ sale@bismon.com หรือโทร 02-563-5000 มีสินค้าพร้อมส่งในไทย รองรับใบเสนอราคาและงานโครงการ

8 Ports RJ45 10/100/1000M with 2 SFP uplink PoE Managed Switch (130W) มีการรับประกันหรือไม่?

8 Ports RJ45 10/100/1000M with 2 SFP uplink PoE Managed Switch (130W) มีการรับประกันสินค้า พร้อมทีม Support ภายในประเทศไทย รองรับงานโครงการและงานราชการ จัดส่งทั่วประเทศ สอบถามเพิ่มเติมโทร 02-563-5000

BISMON เป็นตัวแทนจำหน่าย BISMON อย่างเป็นทางการในไทยหรือไม่?

BISMON เป็นผู้จัดจำหน่าย BISMON ในประเทศไทย มีสินค้าพร้อมส่ง รองรับการออกใบเสนอราคา ใบกำกับภาษี และงานโครงการขนาดใหญ่ ติดต่อได้ที่ 02-563-5000 หรือ sale@bismon.com

8 Ports RJ45 10/100/1000M with 2 SFP uplink PoE Managed Switch (130W) - BISMON | Communication Products - Fiber Optic, Industrial Switch, UTP Cable, OTDR Thailand

Name: 8 Ports RJ45 10/100/1000M with 2 SFP uplink PoE Managed Switch (130W)
Brand: BISMON
SKU: B1POE33108PFM
Price: 13936.00 THB
Availability: InStock

8 Ports RJ45 10/100/1000M with 2 SFP uplink PoE Managed Switch (130W)

▸ คำอธิบายภาษาไทย
คำอธิบายสินค้า สวิตช์ที่มีความสามารถในการจ่ายไฟผ่านสายเน็ตเวิร์ก (PoE) รุ่นนี้มีพอร์ต RJ45 จำนวน 8 พอร์ตพร้อมความเร็วแบบ Gigabit และมีพอร์ต SFP แบบไฟเบอร์ 2 พอร์ตสำหรับอัพลิงค์ เหมาะสำหรับการติดตั้งอุปกรณ์เครือข่ายระยะไกลเช่น WiFi AP กล้องวงจรปิด และโทรศัพท์ IP ได้พร้อมกันไม่เกิน 8 เครื่อง ด้วยการจ่ายไฟสูงสุด 30 วัตต์ต่อพอร์ต สวิตช์น

Part number : B1-POE33108PFM

Brand : BISMON

Price : 13,936.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 30 Days

Minimum order quantity : 1 Pcs.

Size : 270*181*44.5mm

Warranty : 2 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

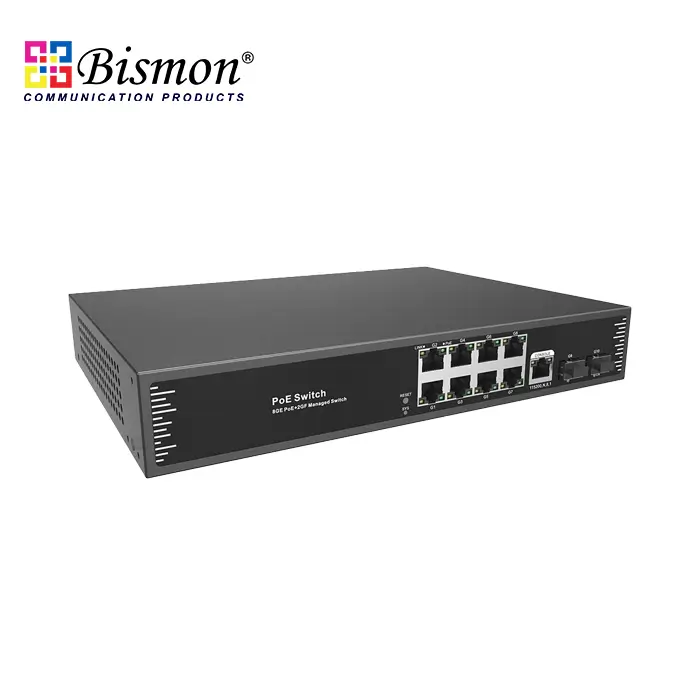

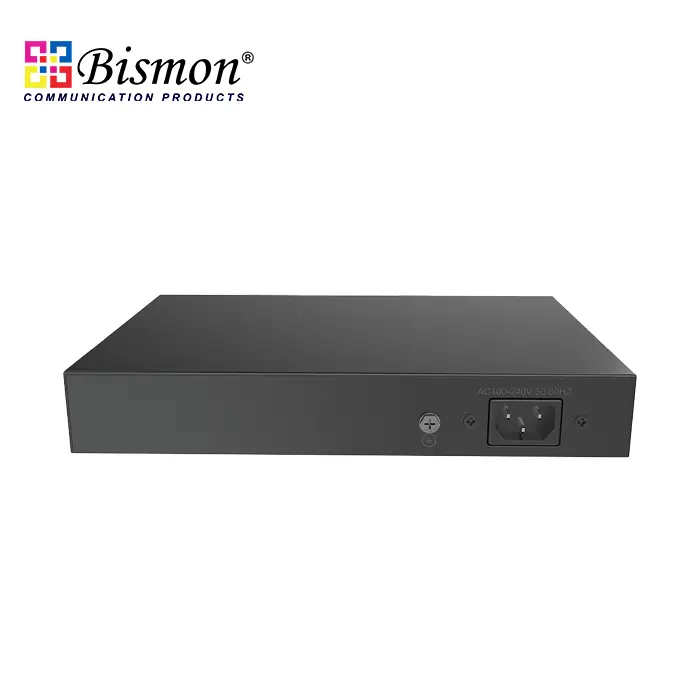

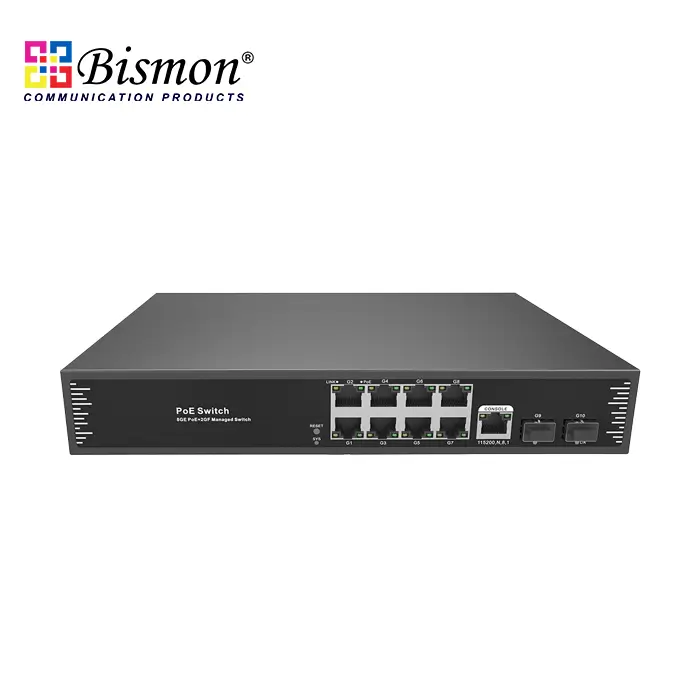

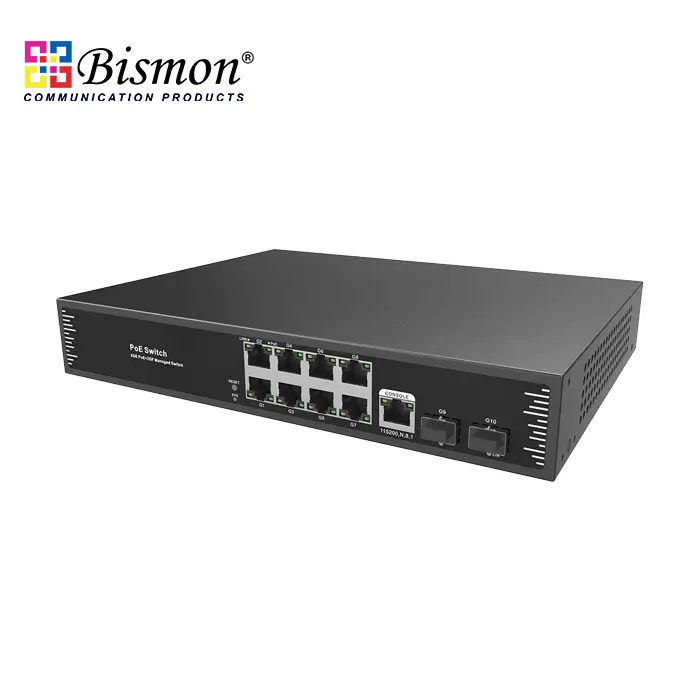

The B1-POE33108PFM is a gigabit L2+ managed PoE fiber switch independently developed by BISMON. It has 8*10/100/1000Base-T adaptive RJ45 ports and 2*100/1000Base-X SFP fiber ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and identify power-receiving devices that meet the standard and power them through the network cable. It can power wireless APs, IP cameras, IP phones, building visual access control intercoms, and other PoE terminal devices through network cables, meeting the network environment that requires a high-density PoE power supply and is suitable for hotels, campuses, parks, supermarkets, scenic spots, factory dormitories, and small and medium-sized enterprises to build economical and efficient networks.

The B1-POE33108PFM has L2+ network management functions, supports IPV4/ IPV6 management, static routing forwarding, complete security protection mechanism, perfect ACL/ QoS strategy, and rich VLAN functions for easy management and maintenance. Supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) and (ITU-T G.8032) ERPS (<20ms) to improve link backup and network reliability. When a unidirectional network fails, communication can be quickly restored to ensure uninterrupted communication of important transmissions. According to application needs, PoE power supply management, port flow control, VLAN division, QoS, and other functions can be configured through Web, CLI, SNMP, Telnet, and other network management methods.

FEATURE

Gigabit access, uplink SFP fiber port

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- Support Gigabit RJ45 port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

Smart PoE power supply

- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.

- 8*10/100/1000Base-T RJ45 ports support PoE power supply to meet security monitoring, conference call systems, wireless coverage, and other scenarios.

- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.

Strong business processing capability

- Support ERPS ring network and STP/ RSTP/ MSTP to eliminate layer 2 loops and realize link backup.

- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.

- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.

- Support QoS, port-based, 802.1P-based, and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.

- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.

- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.

Security

- Port isolation and storm control.

- IP+MAC+port+VLAN quadruple flexible combination binding function.

- 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Self-developed power supply, high redundancy, providing a long-term and stable PoE power output.

- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, and PoE.

- Low power consumption, with fan, galvanized steel metal shell, and excellent heat dissipation to ensure the stable operation of the switch.

Easy O&M management

- Support CPU monitoring, memory monitoring, Ping detection, and cable length detection.

- HTTPS, SSLV3, SSHV1/V2, and other encryption methods are more secure in management.

- RMON, system log, and port traffic statistics are convenient for network optimization and transformation.

- LLDP is convenient for the network management system to query and judge the communication status of the link.

- Support diverse management and maintenance methods such as Web network management, CLI command line (Console, Telnet), SNMP (V1/V2/V3), Telnet, etc.

DIMENSION

PoE switch, PoE switch gigabit, managed PoE switch, PoE switches

TECHNICAL SPECIFICATION

Model	B1-POE33108PFM	B1-POE33108PFM-at
Interface Characteristics
Fixed Port	*1Console RS232 port (115200,N,8,1) 810/100/1000Base-T PoE ports (Data/Power)* *2100/1000Base-X uplink SFP fiber ports (Data)**
Ethernet Port	Port 1-8 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm /0-550m, Single-mode: 1310nm /0-40km, 1550nm /0-120km.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	20Gbps (non-blocking)
Forwarding Rate@64byte	14.88Mpps
CPU	416MHz
DRAM	1G
FLASH	128M
Buffer Memory	4M
MAC	8K
Jumbo Frame	9.6K
LED Indicator	Power: PWR (Green), System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green), POE: PoE (Green)
Reset Switch	Yes, support one key to restore factory settings
PoE & Power Supply
PoE Port	Port 1-8
PoE Management	Port PoE output power allocation, on/off/af/at PoE power supply total power limit configuration PoE work and time scheduling, Power supply delay start Port PoE output priority configuration, Port PoE working status display
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR / Input Voltage	130W/ (AC100-240V)	250W/ (AC100-240V)
Power Consumption	Standby<8W, Full Load<120W	Standby<10W, Full Load<240W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 2.3A	Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation TEMP/ Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40°C~+75°C, 5%~95% RH Non condensing
*Dimension (LWH)*	*27018144.5mm*
Net /Gross Weight	1.3kg/ 1.9kg	1.5kg/ 2.1kg
Installation	Desktop, wall mount, 19-inch 1U cabinet mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	2 years, lifelong maintenance.
Network Management Feature
Interface	Port temperature protection setting IEEE 802.3x flow control (Full duplex) Port green Ethernet Energy-saving setting Broadcast storm control based on port speed Limit the speed of the message traffic at the inbound and outbound ports mini granularity is 64Kbps
L3 Feature	ARP protocol, max 1024 entries Static route /default route max 128 entries L2+ network management function, IPV4/IPV6 management L3 software routing non-wire-speed forwarding, support communication between different network segments and different VLAN
VLAN	Port-based VLAN (4K), IEEE802.1q Voice VLAN, Protocol-based VLAN Access, Trunk, Hybrid port configuration MAC address-based VLAN, QinQ configuration
Port Aggregation	LACP dynamic aggregation, static aggregation Max 5 aggregation groups and 8 ports per group
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network Protocol	G.8032 (ERPS), recovery time less than 20ms 255 Ring at most, Max 254 devices per ring.
Multicast	IGMP Snooping v1/v2/v3, Max 1024 multicast groups MLD Snooping, Multicast VLAN, User quick exit mechanism
Port Mirroring	Bidirectional data mirroring based on port
QoS	Flow-based packet filtering, Priority Mark/ Remark Flow-based redirection, Flow-based rate limiting *8Output queues of each port, 802.1p/ DSCP priority mapping Diff-Serv QoS, Queue Scheduling Algorithm (SP, WRR, SP+WRR)**
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	IEEE802.1X & MAC address authentication IP-MAC-VLAN-Port binding, MAC learning limit Broadcast storm control, Backup for host datum Mac black holes, IP source protection, Anti-DoS attack SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection AAA & RADIUS & TACACS+ certification, ARP inspection
DHCP	DHCP Client, DHCP Snooping, DHCP Server, DHCP Relay
Management	System work log, Link Layer Discovery Protocol NTP clock, Cable length detection, SNMP V1/V2/V3 Ping detection, Web network management (HTTPS) ONV-NMS platform cluster management (LLDP+SNMP) One click recovery, View CPU real-time utilization status FTP, TFTP, Xmodem, SFTP file upload and download management Console/ AUX Modem/ Telnet/ SSH2.0 CLI command line configuration
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
