OVERVIEW

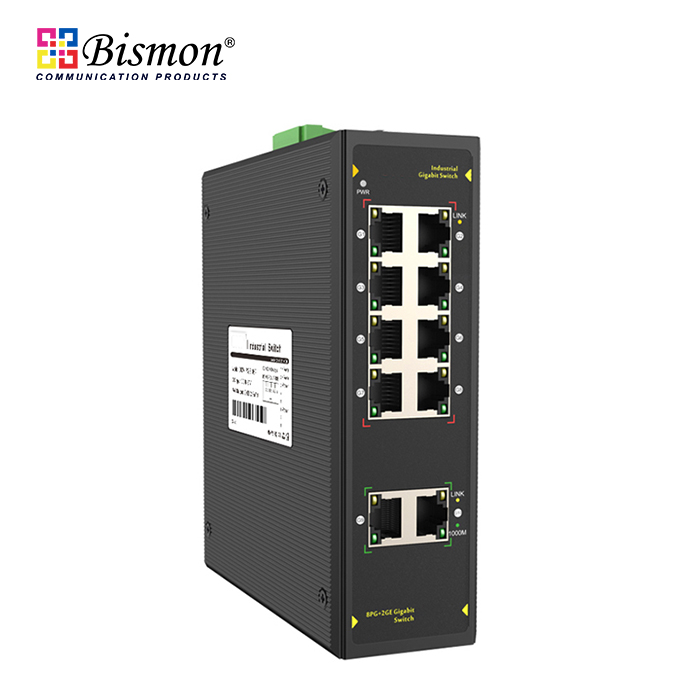

The B1-IPS33108 is a gigabit industrial Ethernet switch independently developed by BISMON. It is designed to meet industrial fields and systems and can operate stably for a long time in harsh environments. It has 10*10/100/1000M adaptive RJ45 ports. Each port can support full line-rate forwarding.
The B1-IPS33108 has excellent industrial field environment adaptability (including mechanical stability, climate adaptability, electromagnetic environment adaptability, etc.). It is suitable for industrial scenes such as intelligent transportation, rail transit, electric power, mining, metallurgy and green energy construction to form a cost-effective and stable communication network. Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Gigabit wire speed forwarding
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Support gigabit RJ45 port and uplink RJ45 port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR and Link.
- Low power consumption, no fan, aluminum shell, and excellent heat dissipation to ensure the stable operation of the switch.
DIMENSION
Stable and reliable
• CE, FCC, RoHS.
• Low power consumption, No fan, aluminum shell.
• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link.
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS33108
|
|
Interface Characteristics
|
|
Fixed Port
|
10*10/100/1000Base-T RJ45 ports (Data)
2 sets V+, V- redundant DC power ports (5P Phoenix terminal)
|
|
Ethernet Port
|
Port 1-10 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 1000Base-T, IEEE 802.3x
|
|
Forwarding Mode
|
Store and Forward (Full Wire Speed)
|
|
Switching Capacity
|
20Gbps (non-blocking)
|
|
Forwarding Rate @64byte
|
14.88Mpps
|
|
MAC
|
8K
|
|
Buffer Memory
|
4M
|
|
Jumbo Frame
|
9.2K
|
|
LED Indicator
|
Power: PWR (Green), Network: Link, Link/Act (Yellow)
|
|
Power Supply
|
|
Working Voltage
|
DC12-48V, 5P industrial phoenix terminal, support anti-reverse protection
|
|
Power Consumption
|
Standby<6W, Full load<8W
|
|
Power Supply
|
No, optional 24V/24W industrial power supply
|
|
Physical Parameter
|
|
Operation TEMP/ Humidity
|
-40°C~+75°C, 5%~90% RH Non condensing
|
|
Storage TEMP/ Humidity
|
-40°C~+85°C, 5%~95% RH Non condensing
|
|
Dimension (L*W*H)
|
145*134.5*47mm
|
|
Net /Gross Weight
|
0.9kg/ 1.1kg
|
|
Installation
|

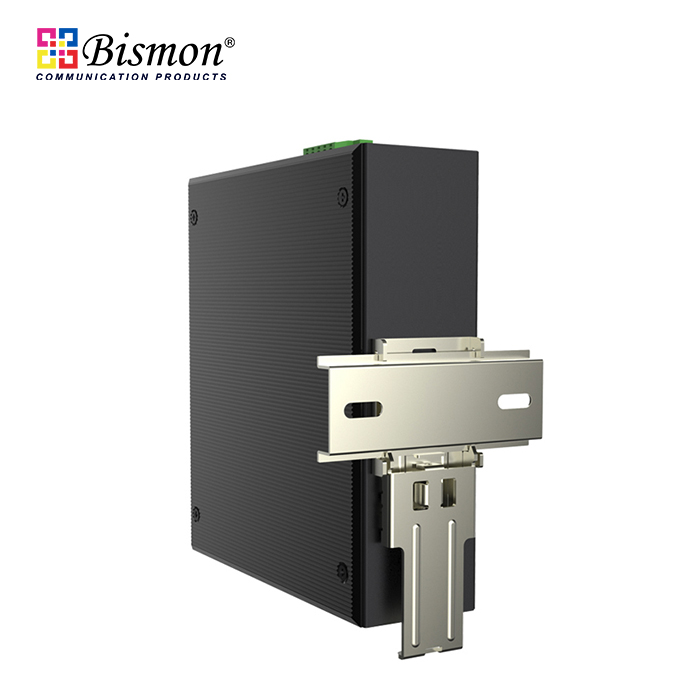

Desktop, 35mm DIN Rail
|
|
Certification & Warranty
|
|
Lightning Protection
|
Protection level: IP40
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class B
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
|
|
Certification
|
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
