OVERVIEW

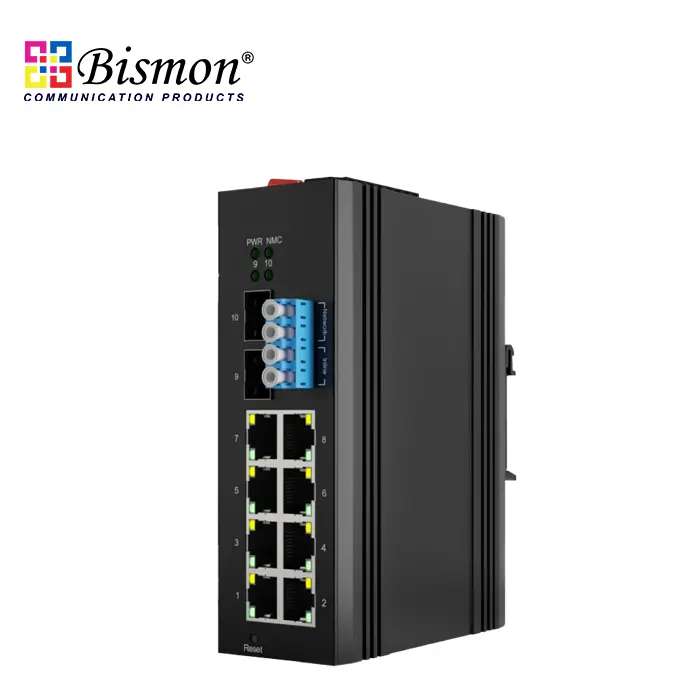

Industrial grade Switch 8 port Gigabit(10/100/1000Mbps) 802.3af/at, Poe/PoE+ for 1-8 Ports uplink 2xSFP slot fiber optic port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40-120km. รองรับ Input Voltage: DC-12-58V, สามารถทำงานได้ที่ อุณหภูมิ -40 ถึง 85 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Antistatic
ได้ที่ 8KV-15KV, รองรับการทำงานแบบ Layer 2+ switching, support DIN-Rail, Standardcomplies CCC, RoHs, FCC, CE, ISO, รองรับ Managed QoS, DDOS, ACL, STP, RSTP, MSTP,ERPS Ring, IPv4/IPv6 Static Routing มีระบบ Bypass Function
|
Provider Mode Ports
|
|
Fixed port
|
2*1000 Base-X , 8*10/100/1000 Base-T
|
|
Management Port
|
Support console
|
|
Power interface
|
Phoenix terminal, Dual power redundancy
|
|
LED Indicators
|
PWR ,Link/ACT LED
|
|

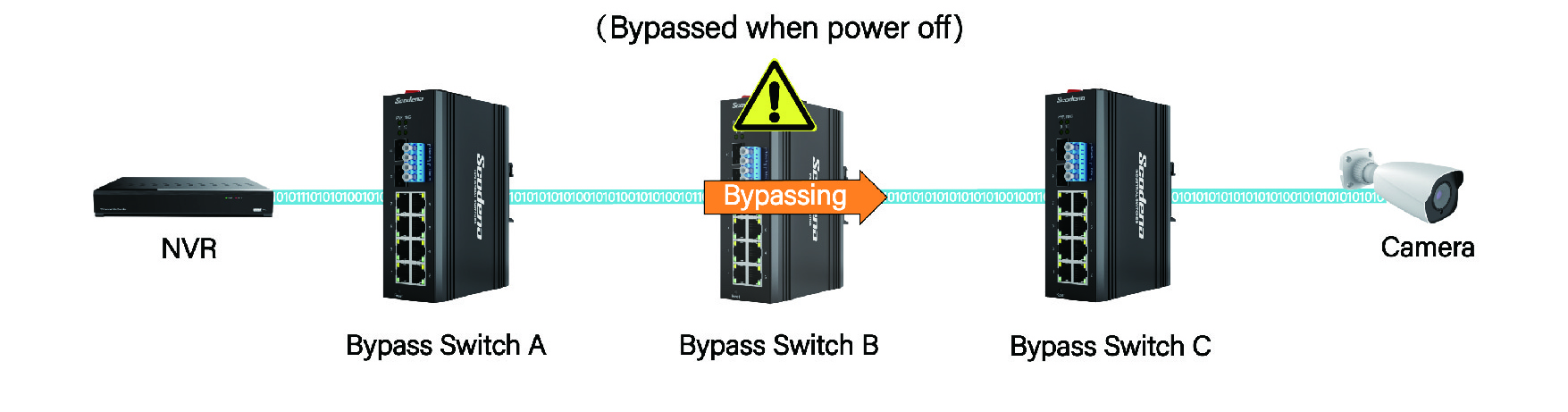

Bypass interface
|
Support
|
|
Error! Filename not specified.Cable type&Transmission distance
|
|
Twisted-pair
|
0-100m( CAT5e,CAT6)
|
|
Monomode optical fiber
|
20/40/60/80/100KM
|
|
Multimode optical fibre
|
550m
|
|
Network Topology
|
|
Ring topology
|
Support
|
|
Star topology
|
Support
|
|
Bus topology
|
Support
|
|
Tree Topology
|
Support
|
|
Hybrid topology
|
Support
|
|
Electrical Specifications
|
|
Input voltage
|
Non PoE: DC12-58
VPoE:DC48-58V
|
|
Total Power consumption
|
Non PoE<10W
PoE<250W
|
|
PoE Support Optional
|
|
PoE port
|
1-8
|
|
PoE Protocol
|
802.3af ,802.3at
|
|
Pin Assignment
|
1,2,3,6
|
|
PoE Management
|
Support
|
|
PoE Support Optional
|
|
PoE port
|
1-8
|
|
PoE Protocol
|
802.3af ,802.3at ,802.3bt(1-2 )
|
|
Pin Assignment
|
af/at: 1,2,3,6 bt : 1-8
|
|
PoE Management
|
Support
|
|
Layer 2 Switching
|
|
Switching capacity
|
36G
|
|
Packet forwarding rate
|
26.78Mpps
|
|
MAC address table
|
16K
|
|
VLAN
|
Support4K
|
|
Buffer
|
12M
|
|
Forwarding delay
|
<10us
|
|
MDX/MIDX
|
Support
|
|
Flow control
|
Support
|
|
Jumbo Frame
|
Support 10Kbytes
|
|
Spanning Tree
|
Support STP/RSTP/MSTP
|
|

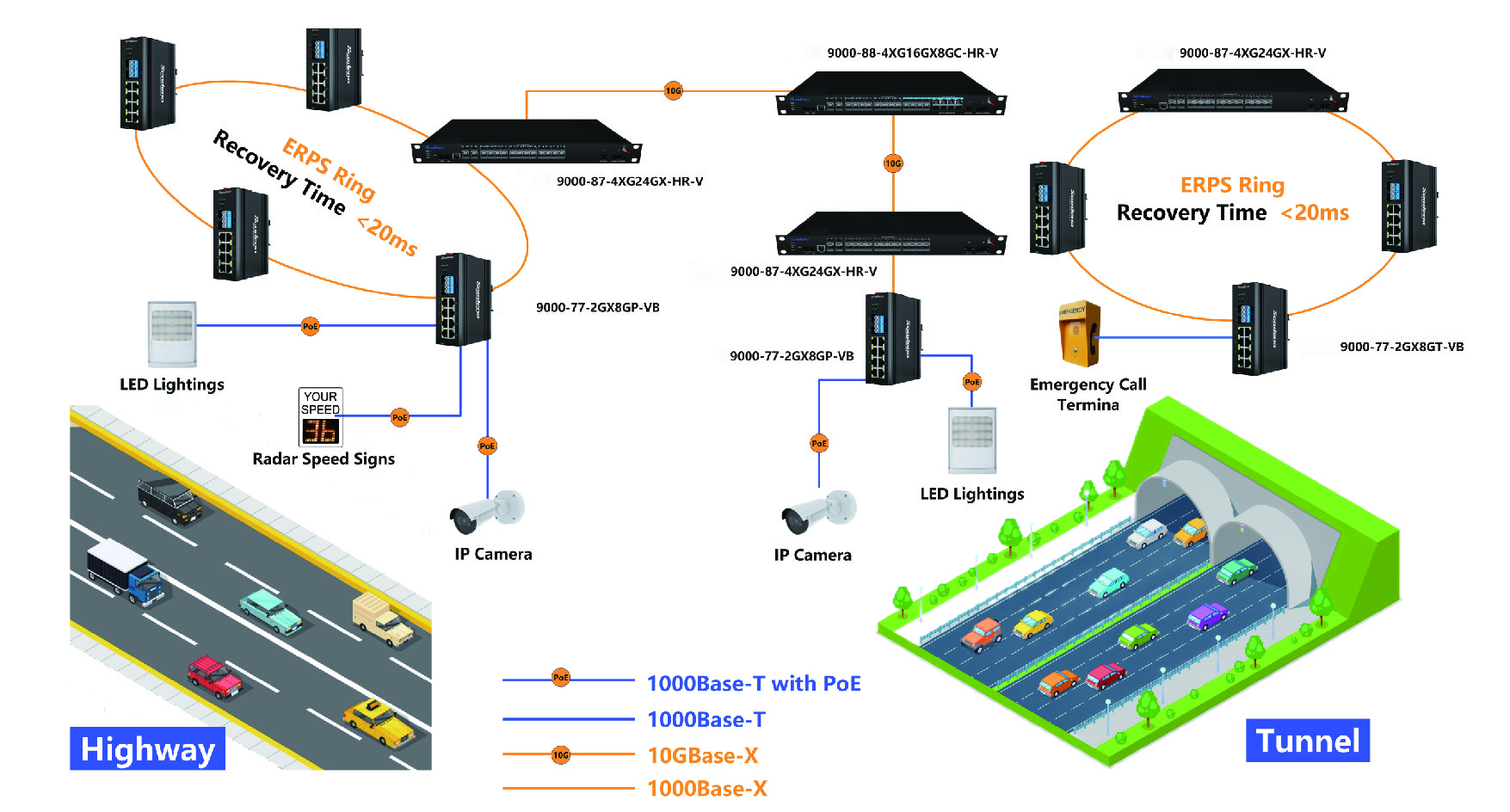

Ring Protocol
|
Support ERPS
|
|
Link Aggregation
|
Support 12 groups
|
|
Multicast
|
Support IGMP Snooping
|
|
Port Mirroring
|
Support
|
|
Storm Control
|
Support
|
|
Interface Counters
|
Support
|
|
Interface Counters
|
Support
|
|
QINQ
|
Support
|
|
802.1X
|
Support
|
|
MAC??
|
Support
|
|
Port Isolation
|
Support
|
|
Rmon
|
Support
|
|
NTP client
|
Support
|
|
DHCP client
|
Support
|
|
DHCP snooping
|
Support
|
|
Ping/tracert Detection
|
Support
|
|
Dying gasp
|
Support
|
|
DDM
|
Support
|
|
Port security
|
Support
|
|
IP Source Guard
|
Support
|
|
Device Scanning
|
Support
|
|
Convergence
|
|
ACL
|
Support 500 ACL entries;
Support IP standard ACL;
Support MAC extension ACL;
Support IP extension ACL;
|
|
QOS
|
Support QoS re labeling and priority mapping;
Support SP and WRR queue scheduling;
Support entrance and exit speed limits;
Support flow based QoS
|
|
Management
|
|
CLI
|
Yse
|
|
Console
|
Yse
|
|
Telnet/SSH
|
Yse
|
|
Web Management
|
Yse
|
|
Manage IP
|
IPV4/IPV6
|
|
SNMP
|
SNMPv1/v2c/v3
|
