8-port 10/100/1000Base-T with 2SFP managed bypass industrial Ethernet switch

Name: 8-port 10/100/1000Base-T with 2SFP managed bypass industrial Ethernet switch
Brand: BISMON
SKU: B1IPS33010FMBY
Price: 15468.00 THB
Availability: InStock

8-port 10/100/1000Base-T with 2SFP managed bypass industrial Ethernet switch

▸ คำอธิบายภาษาไทย
B1-IPS33010FM-BY เป็นสวิตช์ Ethernet อุตสาหกรรมแบบ Managed ระดับ L2+ ที่มี 8 พอร์ต Gigabit RJ45 และ 2 พอร์ต SFP สำหรับการเชื่อมต่อด้วยสายไฟเบอร์ ซึ่งสามารถส่งข้อมูลด้วยความเร็วสูงสุดของแต่ละพอร์ตได้พร้อมกัน อุปกรณ์นี้มาพร้อมระบบ Bypass optical switching ที่จะเปลี่ยนการเชื่อมต่อไฟเบอร์เป็นสถานะ bypass-through โดยอัตโนมัติเมื่อสวิตช์ขาดไฟ เพื่อป้องกันการหยุดชะงักของการสื่อสารและรักษา

Part number : B1-IPS33010FM-BY

Brand : BISMON

Price : 15,468.00 Baht / pcs

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 20 Days

Minimum order quantity : 1 pcs

Size : 165*148*54mm

Warranty : 3 Year

ใหม่ / NEW ขอใบเสนอราคา & สั่งซื้อออนไลน์ได้แล้ว / Request a quote & order online

ใบเสนอราคาRequest Quote

สั่งซื้อออนไลน์Order Online

เครดิตเทอมCredit Term

จัดส่งทั่วไทยNationwide

กดเมนูด้านบนเพื่อเพิ่มสินค้าลงตะกร้า แล้วขอใบเสนอราคา / สั่งซื้อ / เครดิตได้ทันที / Click to add to cart, then request a quote, order, or credit

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

The B1-IPS33010FM-BY is a full Gigabit L2+ managed bypass industrial Ethernet fiber switch independently developed by BISMON. It has 8*10/100/1000Base-T RJ45 ports and 2*100/1000Base-X SFP fiber ports. Each port can support wire-speed forwarding. The switch integrates the Bypass optical switching module. When the power supply of the switch is interrupted, the optical fiber is automatically switched to the bypass-through state to avoid communication interruption due to switch failure and ensure the reliability of network transmission.

The B1-IPS33010FM-BY has L2+ network management function, support IPV4 static route forwarding, complete security protection mechanism, ACL/QoS policy and rich VLAN functions, easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP(<50ms) to improve link backup and network reliability to ensure uninterrupted communication of important applications. According to actual application needs, port management, routing address management, port flow control, VLAN division, IGMP, security policy and other application service configurations are performed through Web, CLI, SNMP, Telnet and other network management methods. The shell is made of aluminum alloy, which has excellent industrial field environmental adaptability (including mechanical stability, climate environment adaptability, electromagnetic environment adaptability, etc.), protection level is IP40, support dual redundant power supply, low power consumption and no fan, 5-year warranty. It is suitable for industrial scenarios such as intelligent transportation, rail transit, electric power industry, mining, petroleum, shipping, metallurgy and green energy construction to establish a cost-effective, stable and reliable communication network.

FEATURE

Gigabit access, SFP fiber port uplink, Integrated Bypass function

- Support non-blocking wire-speed forwarding.

- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.

- Support Gigabit Ethernet port and Gigabit SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.

- Support physical single-mode single fiber optical path(Bypass) function, pure hardware switching, short switching time, does not affect the data transmission rate and improves the stability of the network system.

Network management and fast ring function

- STP/RSTP/MSTP.

- Static and dynamic aggregation.

- IEEE802.1Q VLAN, flexible VLAN division, Access,Trunk and Hybrid.

- QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including EQU, SP, WRR & SP+WRR.

- IGMP Snooping V1/V2/V3 meets multi-terminal high-definition video surveillance and video conference access requirements.

- ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

Security

- 802.1X authentication.

- Port isolation, storm control.

- IP-MAC-VLAN-Port binding.

Stable and reliable

- CCC, CE, FCC, RoHS.

- Low power consumption, No fan, aluminum shell.

- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A.

One-stop remote control and management

- HTTPS, SSLV3, and SSHV1/V2.

- RMON, system log, LLDP, and port traffic statistics.

- CPU monitoring, memory monitoring, Ping test, and cable diagnose.

- Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

TECHNICAL SPECIFICATION

Model	B1-IPS33010FM-BY
Interface Characteristics
Fixed Port	1RS232 console port (115200,N,8,1) 810/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP slot ports (Data) 2 set of V+, V- redundant DC power interface (5 Pin Phoenix terminal)
Bypass Optical Port	Power ON: P1— P4 intercommunication, P2—P3 intercommunication Power OFF: P1— P3 Pass-through
Ethernet Port	Port 1-8 support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
SFP Slot Port	Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm / 0-500m Single-mode: 1310nm / 0-40km, 1550nm / 0-120km
Chip Parameter
Network Management Type	Layer 2+
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	20Gbps
Forwarding Rate@64byte	14.88Mpps
CPU(Hz)	500M
DRAM	1G
Flash	128M
MAC	8K
Buffer Memory	4M
Jumbo Frame	10K
LED Indicator	Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green)
Reset Switch	Yes, Press and hold the reset switch for 10s and release it to restore the factory settings
Power Supply
Working Voltage	DC12-48V, 5 Pin industrial Phoenix terminal, support anti-reverse protection.
Power Consumption	Standby<8W, Full load<12W
Power Supply	No, optional 24V/24W industrial power supply
Physical Parameter
Operation TEMP / Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension	16514854mm
Net /Gross Weight	0.9kg / 1.1kg

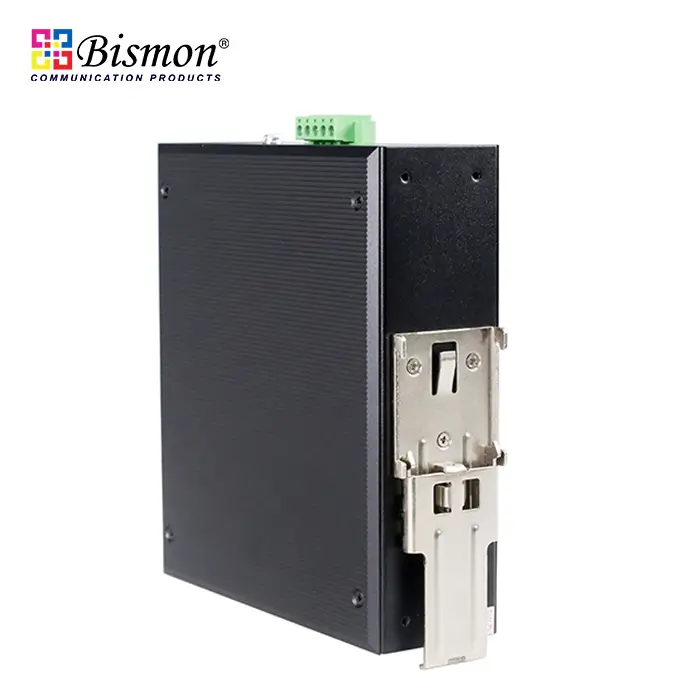

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m(80~1000MHz) FCC Part 15/ CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4 (EFT): Power cable:±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission):10V (150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock) IEC60068-2-32 (Free Fall)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3x flow control (Full duplex) Port real-time traffic management (Flow Interval) Broadcast storm suppression based on port rate Limit the rate of packet traffic on the ingress and egress ports. The mini granularity is 16Kbps and the max is 1Gbps
Layer 3 Features	Static routing/ default routing with max 128 entries L2+ network management, ARP protocol max entries 1024
VLAN	Port configuration of Access, Trunk, Hybrid 4K VLAN based on port, IEEE802.1q, VLAN based on the protocol
Port Aggregation	LACP dynamic aggregation, Static aggregation Max 5 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Multicast	Multicast VLAN, Fast log out IGMP Snooping v1/v2/V3, Max 1024 multicast groups
Port Mirroring	Bidirectional data mirroring based on port
QoS	Diff-Serv QoS, Priority Mark/ Remark Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based rate limiting, Flow-based packet filtering 8*output queues of each port, 802.1p/DSCP priority mapping
ACL	Port-based Issuing ACL, ACL based on port and VLAN L2 to L4 packet filtering, matching first 80 bytes message. Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc.
Security	IP-MAC-VLAN-Port binding ARP inspection, Anti-DoS attack AAA & RADIUS, MAC learning limit Mac black holes, IP source protection IEEE802.1X & MAC address authentication Broadcast storm control, Backup for host datum SSH 2.0, SSL, Port isolation, ARP message speed limit User hierarchical management and password protection
DHCP	DHCP Client, DHCP Snooping, DHCP Server
Management	FTP, TFTP file upload and download management ONV NMS platform cluster management (LLDP+SNMP) NTP, System work log, Ping Test, SNMP V1/V2/V3, LLDP CPU instant utilization status view, Console/ Telnet/ SSH2.0 CLI Web Management (HTTPS), Cable Diagnose, One-key recovery
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable
