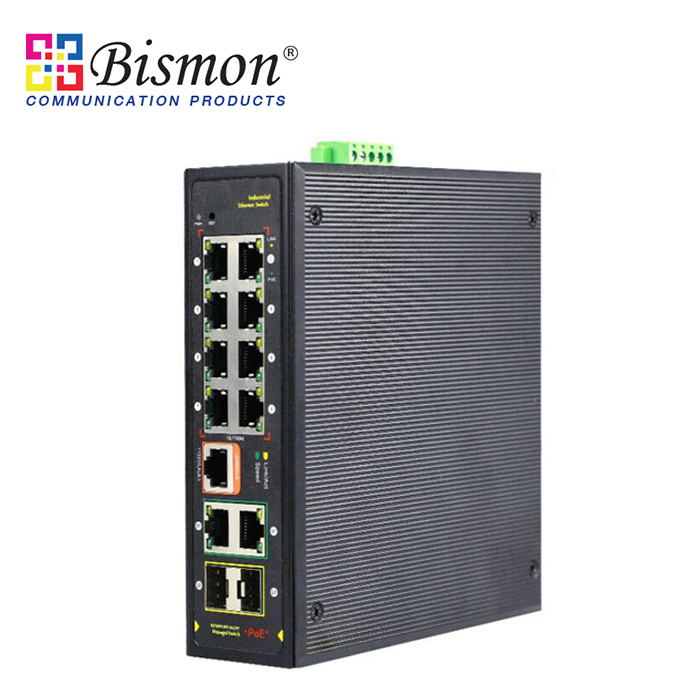

8 ports 10/100Mbps RJ45 PoE+ Gigabit 2 Port RJ45/SFP Combo Industrial Switch Managed

Name: 8 ports 10/100Mbps RJ45 PoE+ Gigabit 2 Port RJ45/SFP Combo Industrial Switch Managed
Brand: BISMON
SKU: B1IPS31108PFM
Price: 9680.00 THB
Availability: InStock

8 ports 10/100Mbps RJ45 PoE+ Gigabit 2 Port RJ45/SFP Combo Industrial Switch Managed

▸ คำอธิบายภาษาไทย
B1-IPS31108PFM เป็นสวิตช์อุตสาหกรรมที่มีความสามารถในการจัดการเครือข่าย (Managed Switch) พร้อมเทคโนโลยี PoE+ ที่สามารถส่งจ่ายไฟฟ้าผ่านสายเคเบิล RJ45 ไปยัง 8 พอร์ต โดยแต่ละพอร์ตสามารถให้พลังงาน 30W ได้อย่างต่อเนื่อง และรองรับกำลังไฟฟ้ารวมสูงสุด 120W-240W เพื่อจ่ายให้อุปกรณ์เครือข่าย เช่น กล้องวิดีโอ ระบบ Wi-Fi และอื่นๆ ได้อย่างมีประสิทธิภาพ สินค้านี้มี 8 พอร์

Part number : B1-IPS31108PFM

Brand : BISMON

Price : 9,680.00 Baht / pcs

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 15 Day

Minimum order quantity : 1 pcs

Size : 165*148*54mm

Warranty : 3 Year

ใหม่ / NEW ขอใบเสนอราคา & สั่งซื้อออนไลน์ได้แล้ว / Request a quote & order online

ใบเสนอราคาRequest Quote

สั่งซื้อออนไลน์Order Online

เครดิตเทอมCredit Term

จัดส่งทั่วไทยNationwide

กดเมนูด้านบนเพื่อเพิ่มสินค้าลงตะกร้า แล้วขอใบเสนอราคา / สั่งซื้อ / เครดิตได้ทันที / Click to add to cart, then request a quote, order, or credit

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

The B1-IPS31108PFM series is a gigabit uplink L2 managed industrial PoE fiber switch independently developed by BISMON. It has 8*10/100Base-TX RJ45 ports and 2*100/1000Base-T(X) combo ports, Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 120W(at-240W). and each port can realize line-speed forwarding.

The B1-IPS31108PFM series adopts a new generation of high-performance hardware and software platforms to provide flexible and cost-effective 100Mbps access and uplink ports. It can support security protection mechanisms, ACL/QoS policies, and VLAN functions, and is easy to manage and maintain. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal device such as wireless AP, IP camera, industrial sensor through the network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, sea transportation. Industrial scenes such as metallurgy and green energy construction form a cost-effective, stable and reliable communication network.

L2 managed industrial PoE fiber switch with 8*10/100M RJ45 ports and 2*10/100/1000M uplink RJ45 ports and 2*100/1000M uplink SFP slot ports (combo port), Port 1-8 can support IEEE802.3af/at PoE. Support DC dual power supply input and DIN rail mounting.

FEATURE

100M access, Gigabit combo port uplink

• All series support “10/100M Ethernet port and Gigabit combo port” combination, which enables users to flexibly build networking to meet the needs of various scenarios.

• Support non-blocking wire-speed forwarding.

• Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE power supply

• 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

• IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

• Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.

• PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.

Strong business processing capability

• IEEE802.1Q VLAN, flexible VLAN division, Voice VLAN and QinQ configuration.

• QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including Equ, SP, WRR & SP+WRR.

• ALC, filter data packet through configuring matching rules, processing operation & time permission, and provide flexible and safe access control.

• IGMP V1/V2 and IGMP Snooping.

• ERPS/STP/RSTP/MSTP.

• Static and dynamic aggregation.

Security

• 802.1X authentication.

• Port isolation, Storm control.

• IP-MAC-VLAN-Port binding.

Stable and reliable

• Low power consumption, no fan, aluminum casing.

• CCC, CE, FCC, RoHS.

• The user-friendly panel, it can show the device status through the LED indicator of PWR, Link, PoE.

Easy operation and maintenance management

• Web management, CLI command line (Console, Telnet), SNMP (V1/V2/V3).

• HTTPS, SSLV3, and SSHV1/V2.

• RMON, system log, LLDP, and port traffic statistics.

• CPU monitoring, memory monitoring, Ping test, and cable diagnose.

TECHNICAL SPECIFICATION

Model	B1-IPS31108PFM
Interface Characteristics
Fixed Port	810/100Base-TX PoE ports (Data/Power) 210/100/1000Base-T uplink RJ45 ports (Data) 2*100/1000Base-X uplink SFP fiber ports (Combo port)(Data) 2 sets V+, V- redundant DC power port (5P industrial Phoenix terminal)
Ethernet Port	Port 1-8 can support 10/100Base-TX and port 9-10 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm /0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	L2
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	14.8Gbps (non-blocking)
Forwarding Rate@64byte	4.17Mpps
CPU(Hz)	150M
DRAM	256M
FLASH	128M
MAC	16K
Buffer Memory	4M
Jumbo Frame	10K
LED Indicator	POE: PoE (Green), Rate: Speed (Green), Power: PWR(Green), Network: Link, Link/Act (Yellow)
PoE & Power Supply
PoE Port	Port 1-8
PoE Management	Power delay start, PoE work, and time scheduling Port PoE working status display, Port PoE output power distribution
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<8W, Full load af<120W, at<240W
Input Voltage/ Interface	DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	16514854mm
Net /Gross Weight	0.9kg/ 1.15kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable: ±4kV; data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V,1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m,1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3x flow control (Full-duplex) Broadcast storm control based on port speed Limit the rate of packet traffic on the incoming and outgoing ports with mini granularity 16Kbps
VLAN	IEEE802.1q, Port-based VLAN(4K), Protocol-based VLAN, QinQ configuration
Port Aggregation	LACP, Manual aggregation, Max 3 aggregation groups and 8 ports per group.
Spanning Tree	STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
Multicast	MLD Snooping, Multicast VLAN, Fast log-out IGMP Snooping v1/v2/v3, Max 64 multicast groups
Port Mirroring	Bidirectional data mirroring based on port
QoS	Diff-Serv QoS, 8*output queues of each port Queue Scheduling Algorithm (SP, WRR, SP+WRR) 802.1p/ DSCP priority mapping, Priority Mark/ Remark
ACL	L2-L4 packet filtering function can match the first 80 bytes of the packet, and provide ACL based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port range, VLAN, etc.
Security	Binding function of IP+MAC+port, Port isolation, Port broadcast storm suppression
DHCP	DHCP Client, DHCP Snooping, DHCP Relay
System	One-key recovery, NTP clock, System work log, SNMP V1/V2/V3, Web Network Management (https)

Product Detail

8 ports 10/100Mbps RJ45 PoE+ Gigabit 2 Port RJ45/SFP Combo Industrial Switch Managed

Download Datasheet
