OVERVIEW

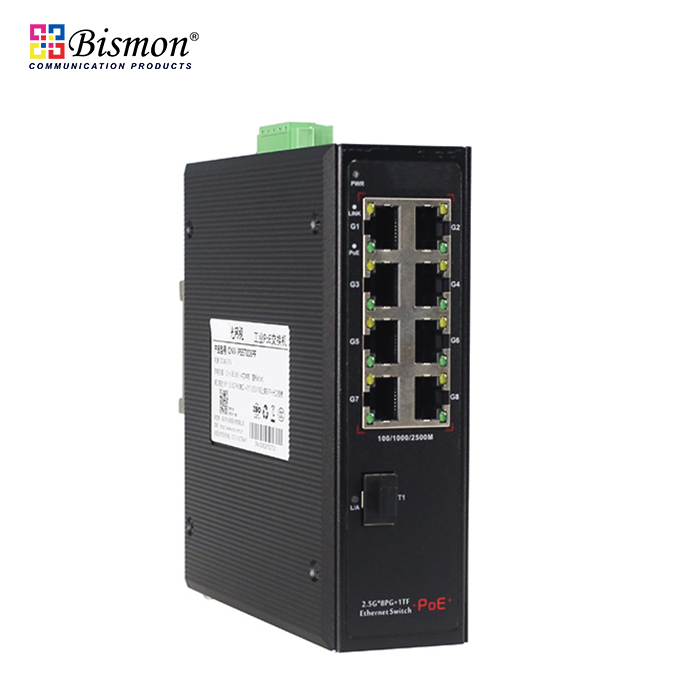

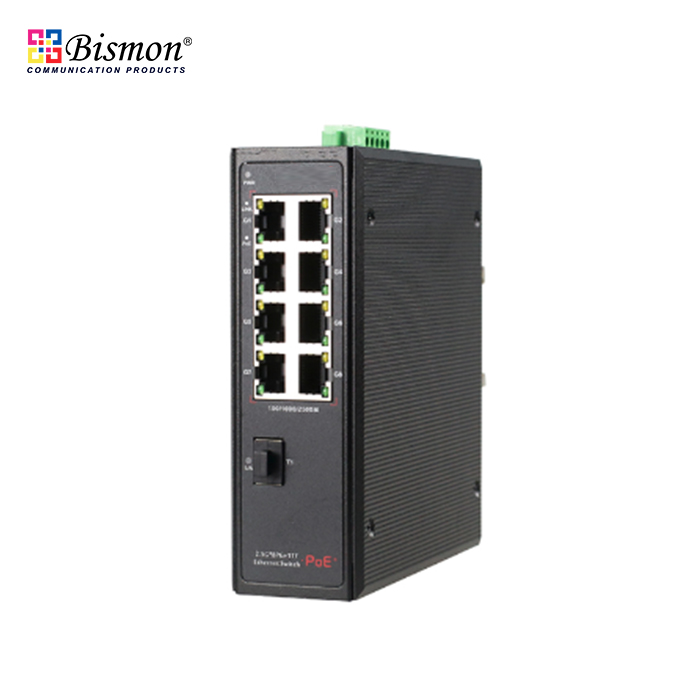

The B1-IPS57008PF is a 2.5G industrial PoE switch independently developed by BISMON. It has 8*10/100/1000/2500Base-T adaptive RJ45 ports and 1*1/2.5/10G uplink SFP+ fiber port. Port 1-8 can support IEEE 802.3 af/at PoE standard, and the single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP cameras, VoIP phones, and industrial sensors through a network cable. It also meets the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy, green energy, and industrial scenes such as construction, setting up a cost-effective and stable communication network. Unmanaged mode, plug and play, no configuration, easy to use.
FEATURE
2.5G access, uplink 1/2.5/10G SFP+ fiber port
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
- Support 2.5G RJ45 port and 1/2.5/10G SFP+ fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- The PoE port supports the priority mechanism. When the remaining power is insufficient, the power of the high-priority port is given priority to avoid overloading of the device.
- 8*10/100/1000/2500Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, industrial automation systems, wireless coverage and other scenarios.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, L/A, and PoE.
- Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure stable operation of the switch.
TECHNICAL SPECIFICATION
|
Model
|
B1-IPS57008PF
|
|
Interface Characteristics
|
|
Fixed Port
|
1*1/2.5/10G uplink SFP+ fiber port (Data)
8*10/100/1000/2500Base-T PoE ports (Data/Power)
2 set V+, V- redundant DC power ports (5P industrial Phoenix terminal)
|
|
Ethernet Port
|
Port 1-8 can support 10/100/1000/2500Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
|
Twisted Pair Transmission
|
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
2500BASE-T: Cat6a or later UTP (≤100 meters)
|
|
Optical Fiber Port
|
1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
|
|
Optical Cable/ Distance
|
Multi-mode: 850nm/ 0-550m, 850nm/ 0-300m (10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
|
|
Chip Parameter
|
|
Network Protocol
|
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3bz 2.5GBase-T, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x
|
|
Forwarding Mode
|
Store and forward (Full wire speed)
|
|
Switching Capacity
|
60Gbps (non-blocking)
|
|
Forwarding Rate@64byte
|
44.6Mpps
|
|
MAC
|
4K
|
|
Buffer Memory
|
8.1M
|
|
Jumbo Frame
|
12K
|
|
LED Indicator
|
Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
|
|
PoE& Power Supply
|
|
PoE Port
|
Port 1-8
|
|
Power Supply Pin
|
1/2(+)3/6 (-)
|
|
Max Power Per Port
|
30W, IEEE 802.3 af/at
|
|
Power Consumption
|
Standby<13W, Full load af<120W, at<240W
|
|
Input Voltage/ Interface
|
DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
|
|
Power Supply
|
No, optional 48V/120W or 48V/240W industrial power supply
|
|
Physical Parameter
|
|
Operation Temp/ Humidity
|
-40~+75°C, 5%~90% RH non condensing
|
|
Storage Temp/ Humidity
|
-40~+85°C, 5%~95% RH non condensing
|
|
Dimension (L*W*H)
|
145*134.5*47mm
|
|
Net /Gross Weight
|
0.8kg/ 1.0kg
|
|

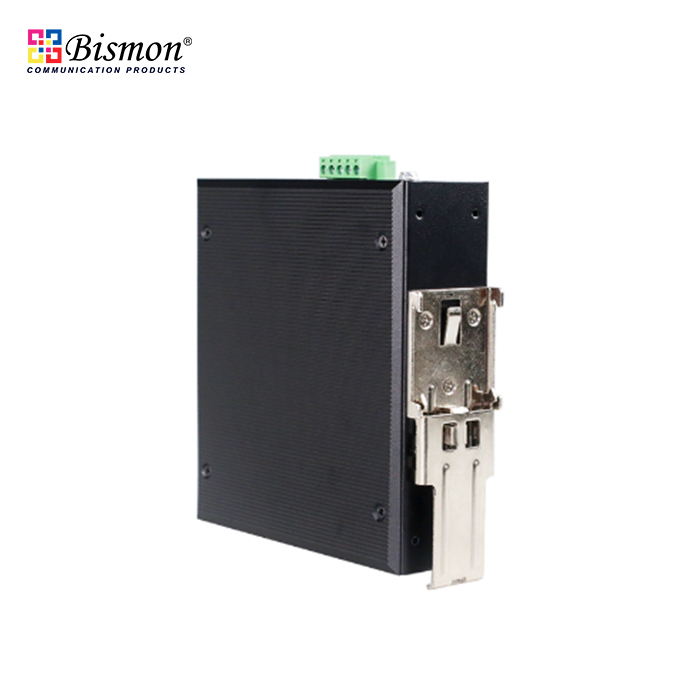

Installation
|
Desktop, 35mm DIN Rail
|
|
Certification& Warranty
|
|
Lightning Protection
|
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class A
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
Protection level: IP40, Lightning protection: 6KV 8/20us
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
|
|
Mechanical Properties
|
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
|
|
Certification
|
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
|
|
Warranty
|
3 years, lifelong maintenance.
|
