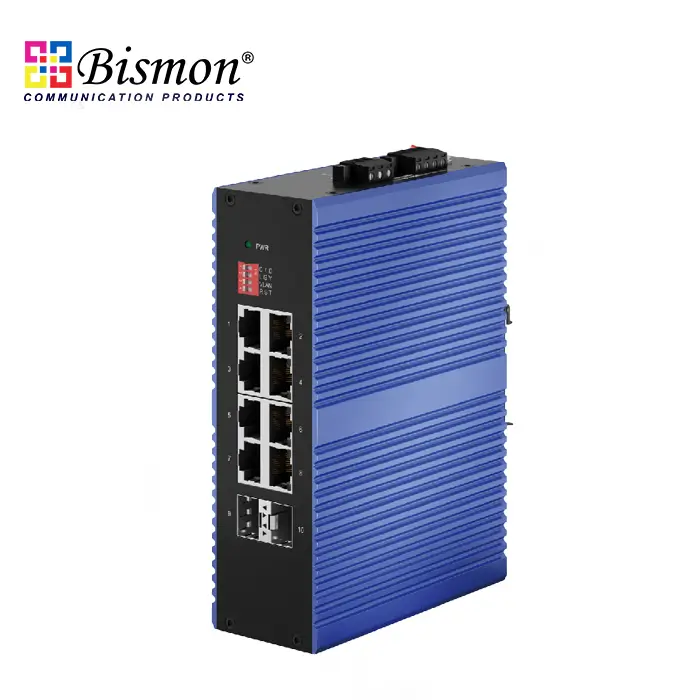

8x10/100/1000Base-T to 2x1000Base-X Industrial Switch Unmanaged (PoE)
Part number : B1-65-2GX8GP-XA
Brand : BISMON
Price : 19,268.00 Baht
Minimum order quantity : 1 Pcs.
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
Overview
Industrial grade Switch 8 port Gigabit(10/100/1000Mbps) 802.3af/at, Poe/PoE+ for 1-8 Ports uplink 2xSFP slot fiber optic port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40-120km. รองรับ Input Voltage: DC-10-58V, สามารถทำางานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Antistatic ได้ที่ 8KV-15KV (Surge protection 4KV), มีระบบ Dual Power Redundacy, มีระบบ PoE Watchdog, มี Port Isolation, support DIN-Rail, Standard complies CCC, RoHs, FCC, CE, ISO ,ได้รับมาตรฐาน EMC Class A
Feature
Management Type : Unmanaged
Shell : IP40, fanless design
Anti-static : 8~15KV
Input Voltage : DC12~58V
Operating Temperature : -40°C~75°C
Certification : CCC, RoHS, FCC, CE
EMC Class A Standards
|
Provider Mode Ports |
||
|
Fixed port |
2*1000 Base-X, 8*10/100/1000 Base-T |
|
|
Power interface |
Phoenix terminal,dual power redundancy |
|
|
LED Indicators |
PWR ,OPT ,NMC,ALM |
|
|
Reset |
Dial code reset |
|
|
1 C/D |
Remote PD restart |
|
|
2 LGY |
Standard/Non-standard PoE selection |
|
|
3 VLAN |
Port isolate |
|
|
4 RST |
Reset |
|
|
|
||
|
Twisted-pair |
0-100m( CAT5e,CAT6) |
|
|
Monomode optical fiber |
20/40/60/80/100KM |
|
|
Multimode optical fibre |
550m |
|
|
Network Topology |
||
|
Ring topology |
Not Supported |
|
|
Star topology |
Support |
|
|
Bus topology |
Support |
|
|
Tree Topology |
Support |
|
|
Electrical Specifications |
||
|
Input voltage |
Non PoE: DC18-58V PoE :DC48-58V |
|
|
Total Power consumption |
Non PoE full load<6W PoE full load<246W |
|
|
Voltage Alarm |
Support |
|
|
PoE Support Optional |
||
|
PoE port |
1-8 |
|
|
PoE Protocol |
802.3af ,802.3at |
|
|
Pin Assignment |
1,2,3,6 |
|
|
PoE Mode |
Both standard and non-standard are supported |
|
|
Remote PD Reset |
Support |
|
|
Layer 2 Switching |
||
|
Switching capacity |
26G |
|
|
Packet forwarding rate |
19.34Mpps |
|
|
MAC address table |
16K |
|
|
Buffer |
2M |
|
|
Forwarding delay |
<5us |
|
|
MDI/MDIX |
Support |
|
|
Jumbo Frame |
Support 10Kbytes |
|
|
Watch Dog |
Support |
|
|
Port isolation |
Support |
|
|
Mechanical Dimensions |
||
|
Product size |
161*115*53mm |
|
|
Installation Method |
|
|
|
Weight |
0.85KG |
|
|
Environment |
||
|
Operating temperature |
-40°C ~ +85°C |
|
|
Storage temperature |
-40°C ~ +85°C |
|
|
Relative humidity |
5%~95% Non-condensing |
|
|
Thermal methods |
Fanless design, natural heat dissipation |
|
|
MTBF |
100,000 hour |
|
|
EMC&INGRESS PROTECTION |
||
|
IP Level |
IP40 |
|
|
Surge protection of Power |
IEC 61000-4-5 Level 4 (4KV/2KV)( 8/20us) |
|
|
Surge protection of Ethernet port |
IEC 61000-4-5 Level 4 (4KV/2KV)( 10/700us) |
|
|
RS |
IEC 61000-4-3 Level 3(10V/m) |
|
|
EFI |
IEC 61000-4-4 Level 3( 1V/2V) |
|
|
CS |
IEC 61000-4-6 Level 3( 10V/m) |
|
|
PFMF |
IEC 61000-4-8 Level 4( 30A/m) |
|
|
DIP |
IEC 61000-4-11 Level 3( 10V) |
|
|
ESD |
IEC 61000-4-2 Level 4( 8K/15K) |
|
|
Free fall |
0.5m |
|
|
Authentication |
||
|
Authentication |
Inspection reports and network access permits from the Ministry of Public Security and the Ministry of Industry and Information Technology, CE/FCC/RoHS |
|
