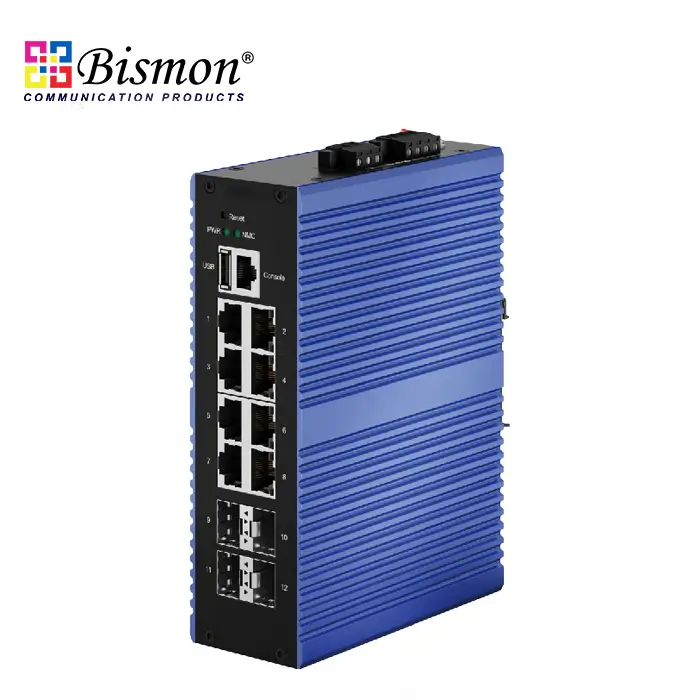

8x10/100/1000Base-T to 4x10G Base-X Industrial Switch managed (L3) PoE
Part number : B1-88-4XG8GP-VXA
Brand : BISMON
Price : 39,336.00 Baht
Minimum order quantity : 1 Pcs.
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
Overview
Industrial grade Switch 8 port Gigabit(10/100/1000Mbps) 802.3af/at, Poe/PoE+ for 1-8 Ports uplink 4x 10G SFP slot fiber optic port รองรับ 1000Mbps ทั้ง SX, LX, ZX โดยขึ้นอยู่กับ module transceiver SFP Mini GBIC รองรับระยะได้ตั้งแต่ 10,20,40-120km. รองรับ Input Voltage: DC-10-58V, สามารถทำางานได้ที่ อุณหภูมิ -40 ถึง 75 องศาเซลเซียส, รองรับการใช้งานภายนอกอาคารได้ตามมาตรฐาน IP40 Fanless design และ Antistatic ได้ที่ 8KV-15KV (Surge protection 4KV), มีระบบ Dual Power Redundacy, รองรับระบบ ACL QoS STP/RSTP/MSTP/ ERPS Ring OSPFv2/RIP/IS-IS/BGP4 Dynamic Routing, support DIN-Rail, Standard complies CCC, RoHs, FCC, CE, ISO ,ได้รับมาตรฐาน EMC Class A
Feature
Management Type : L3 managed
Shell : IP40, fanless design
Anti-static : 8~15KV
Input Voltage : DC12~58V
Operating Temperature : -40°C~75°C
Certification : CCC, RoHS, FCC, CE
EMC Class A Standards
|
Provider Mode Ports |
|
|
Fixed port |
4*10GBase-X ,8*10/100/1000 Base-T |
|
Management Port |
Support console,Supports USB |
|
Power interface |
Phoenix terminal,dual power redundancy |
|
LED Indicators |
PWR ,Link/ACT LED |
|
|
|
|
Twisted-pair |
0-100m( CAT5e,CAT6) |
|
Monomode optical fiber |
20/40/60/80/100KM |
|
Multimode optical fibre |
550m |
|
Network Topology |
|
|
Ring topology |
Support |
|
Star topology |
Support |
|
Bus topology |
Support |
|
Tree Topology |
Support |
|
Hybrid topology |
Support |
|
Electrical Specifications |
|
|
Input voltage |
DC18-58V |
|
Total Power consumption |
Full load<20W POE full load<260W |
|
PoE Support Optional |
|
|
PoE port |
1-8 |
|
PoE Protocol |
802.3af ,802.3at |
|
Pin Assignment |
1,2,3,6 |
|
PoE Management |
Support |
|
Layer 2 Switching |
|
|
Switching capacity |
160G |
|
Packet forwarding rate |
95.23 Mpps |
|
MAC address table |
16K |
|
VLAN |
Support 4K |
|
Buffer |
12M |
|
Forwarding delay |
<10us |
|
MDX/MIDX |
Support |
|
Flow control |
Support |
|
Jumbo Frame |
Supports 10Kbytes |
|
Spanning Tree |
Support STP/RSTP/MSTP |
|
Ring Protocol |
Support ERPS |
|
Link Aggregation |
Support 12 groups |
|
Multicast |
Support IGMP Snooping |
|
Port Mirroring |
Support |
|
Storm Control |
|
|
Interface Counters |
Support |
|
QINQ |
Support |
|
802.1X |
Support |
|
Radius/Mac authentication |
Support |
|
Port Isolation |
Support |
|
Rmon |
Support |
|
NTP client |
Support |
|
DHCP client |
Support |
|
DHCP snooping |
Support |
|
Ping/racert detection |
Support |
|
Dyinggasp |
Support |
|
DDM |
Support |
|
Port security |
Support |
|
IP Source Guard |
Support |
|
Device scanning |
Support |
|
layer 3 function |
|
|
Static Routing |
Support 1K static routes |
|
ARP |
ARP table entry aging |
|
Equivalent routing |
Equivalent routing |
|
The maximum number of next hop configurable ECMP |
|
|
Support traffic balance configuration |
|
|
VRRP |
Virtual router redundancy protocol |
|
RIP |
Support |
|
OSPFv2 |
Support |
|
BGP4 |
BGP4 |
|
DHCP server |
Support |
|
Convergence |
|
|
ACL |
Support 500 ACL entries; Support IP standard ACL; Support MAC extension ACL; Support IP extension ACL; |
|
QOS |
Support QoS re labeling and priority mapping; Support SP and WRR queue scheduling; Support entrance and exit speed limits; Support flow based QoS |
|
Management |
|
|
CLI |
Support |
|
Console |
Support |
