96 Port Wall Mount Outdoor Cabinet


Part number : B1-WM96-OUT377

Brand : BISMON

Price : 17,500.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

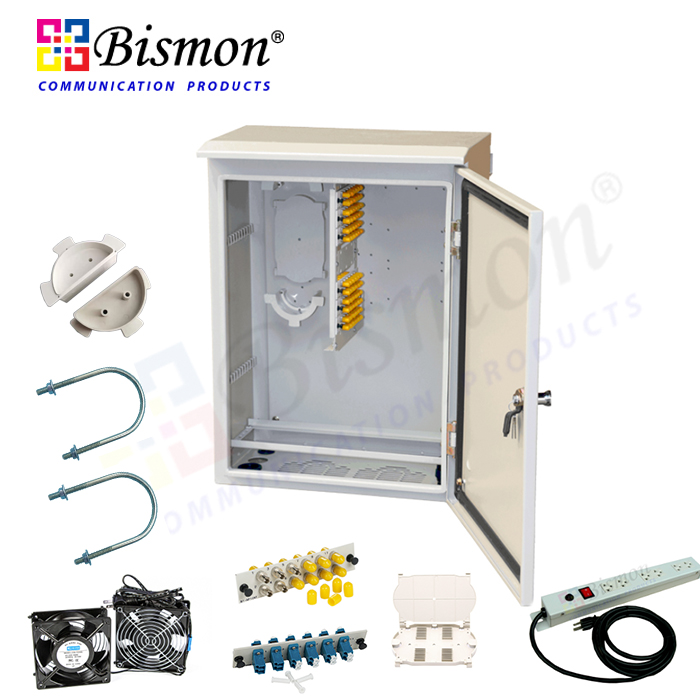

Wall-Mount Outdoor Fiber made of sheet EG Steel or stainless steel or Aluminium make to order one by one They can compliant with IP55 or IP 65 standard. they can accommodate the fiber from12-96 Fiber support ST/SC/FC Cable entry 8 port use cable glands EG/PG29 depand on cable dia. The cable can be held the preformed holes and LC, inside a 2 section cable inlet or cable feed through gromment. Application for CCTV or IP Camera.



Specification

Brand Bismon
Model B1-WM96-OUT377
Equipment Type Wall-Mount Outdoor
Size 700 mm x 700 mm x 300 mm (HighxWidthxDepth)
Standard Compliant IP55 or IP 65 standard.
Material Made of EG Steel (Electro galvanized steel )
Application Can use for CCTV & IP Camera solution or other fiber optic solution
Features • One door lockable,
  • Provided 4mm thickness CNC Foam Gasket Technology for protection water & rustproof
  • The color of cabinet made from outdoor type
  • All screw or nut made of stainless steel
  • Can Change one panel 12-96 port Max. Capacity use for snap-in plate 6 or 12 port
  • Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 8 pcs
  • Can support splice tray 12 or 24 port maximum 8 ea
  • Can support FAN 2x4” for air flow
  • Complete set tools for hang on pole and support 4 hole for wall type
  • Can support steel plate for stand UPS 500-1000VA below wall box
Option (Made to order) -

Product Review



Related Product in - Wall Mount Outdoor Fiber optic Double Layer


Wall-mount-Outdoor-for-CCTV-ตู้สำหรับงานไฟเบอร์ออพติก-CCTV

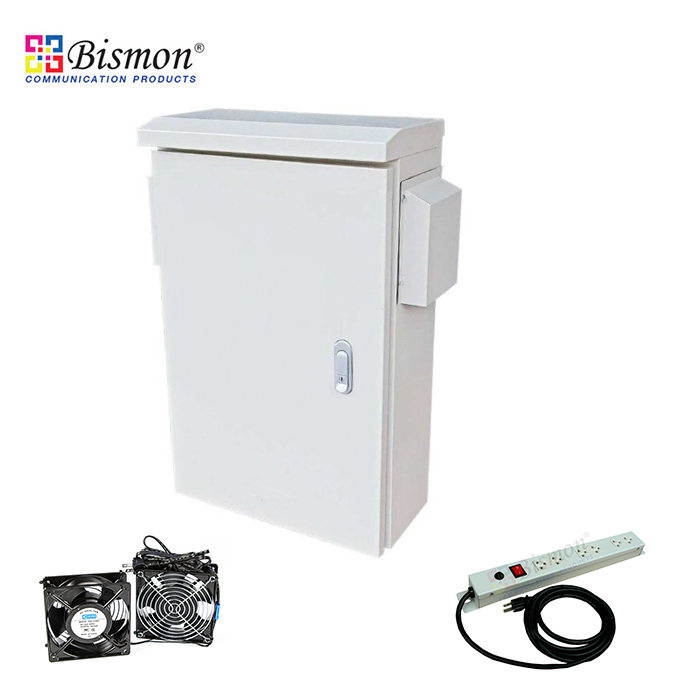

Wall mount Outdoor for CCTV (ตู้สำหรับงานไฟเบอร์ออพติก CCTV)
