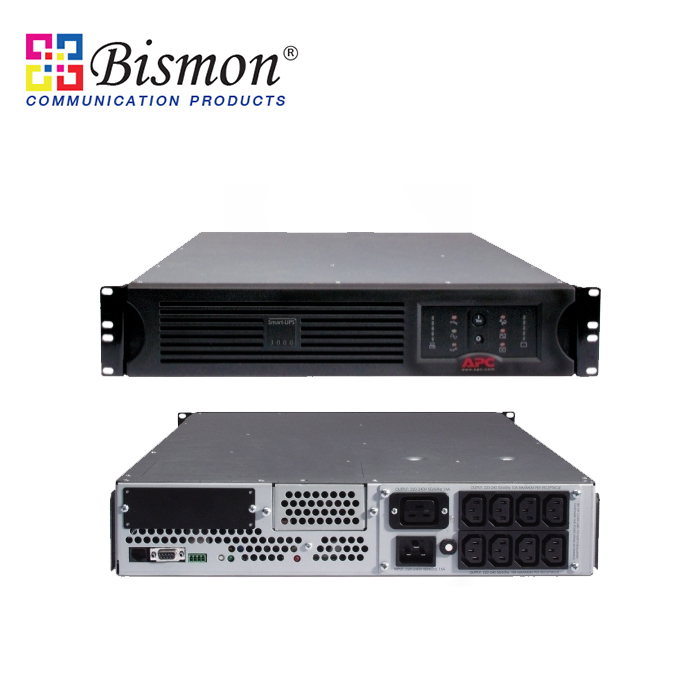

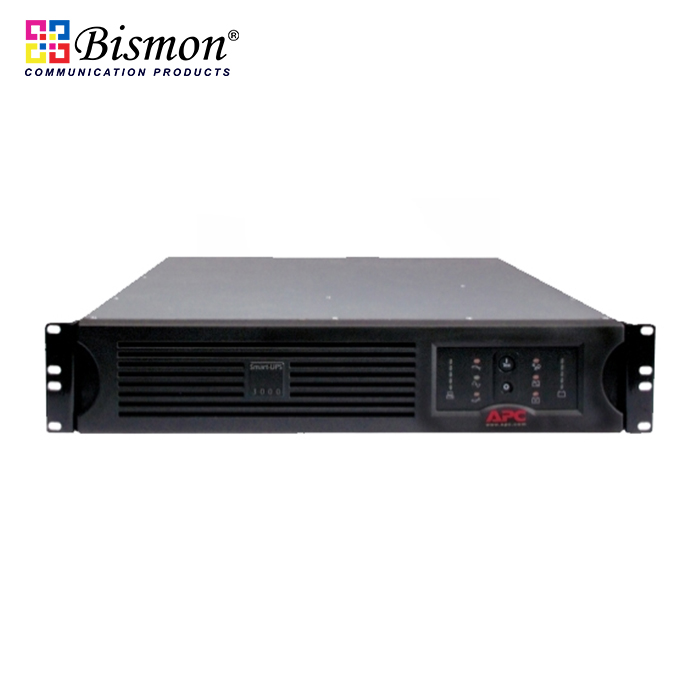

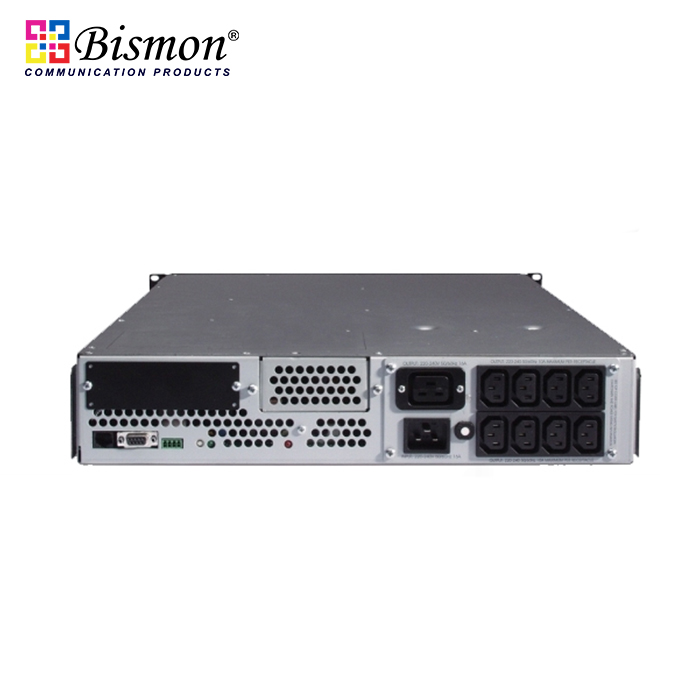

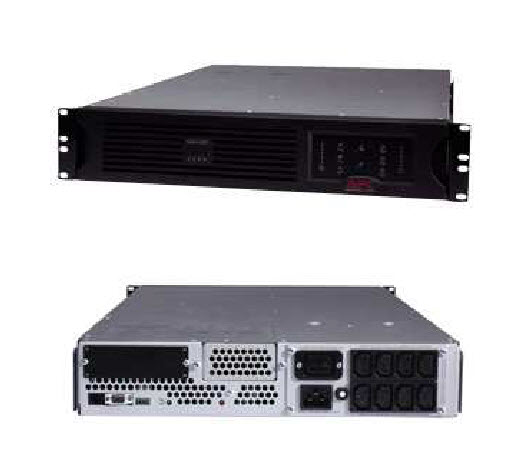

(APC) SMART-UPS 3000VA USB& Serial RM 2U 230V, RACK
 SMART-UPS 3000VA USB.jpg)
 SMART-UPS 3000VA USB 2.jpg)
 SMART-UPS 3000VA USB 3.jpg)
Part number : SUA3000RMI2U
Brand : APC
Price : 92,000.00 Baht
| APC Smart-UPS 3000VA USB & Serial RM 2U 230V |
| • Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| • Includes: CD with software, Rack Mounting Brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual |
| Output |
| Max Configurable Power (Watts) : 2.7kWatts / 3.0kVA |
| Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage |
| Output Voltage Distortion: Less than 5% at full load |
| Output Frequency (sync to mains) : 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
| Topology : Line Interactive |
| Waveform type : Sine wave |
| Transfer Time : 2ms typical |
| Input |
| Input frequency : 50/60 Hz +/- 3 Hz (auto sensing) |
| Input voltage range for main operations : 160 - 286V |
| Input voltage adjustable range for mains operation : 151 - 302V |
| Number of Power Cords : 1 |
| Batteries & Runtime |
| Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical recharge time : 3hour(s) |
| Replacement Battery : RBC43 |
| Expected Battery Life (years) : 3 - 5 |
| RBC Quantity : 1 |
| Battery Volt-Amp-Hour Capacity : 528 |
| Physical |
| Maximum Height : 89MM, 8.9CM |
| Maximum Width : 483MM, 48.3CM |
| Maximum Depth : 660MM, 66.0CM |
| Net Weight : 43.64KG |
| Shipping weight : 54.0KG |
| Shipping Height : 250MM, 25.0CM |
| Shipping Width : 600MM, 60.0CM |
| Shipping Depth : 980MM, 98.0CM |
| Color : Black |
| Master Carton Units : 1.0 |
| Units per Pallet : 8.0 |
| Environmental |
| Operating Temperature : 0 - 40 °C |
| Operating Relative Humidity : 0 - 95 % |
| Operating Elevation : 0-3000meters |
| Storage Temperature : -15 - 45 °C |
| Storage Relative Humidity0 : - 95 % |
| Storage Elevation : 0-15000meters |
| Audible noise at 1 meter from surface of unit : 47.0dBA |
|
Online thermal dissipation : 400.0BTU/hr
|
