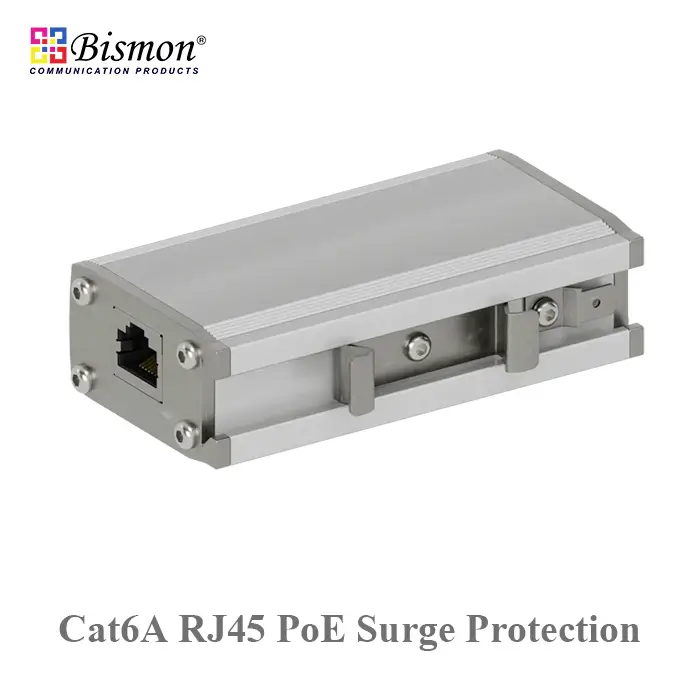

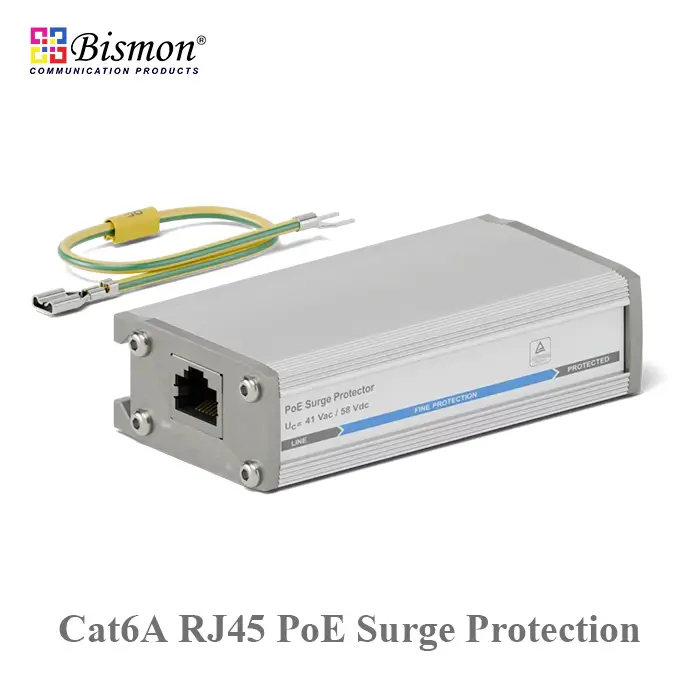

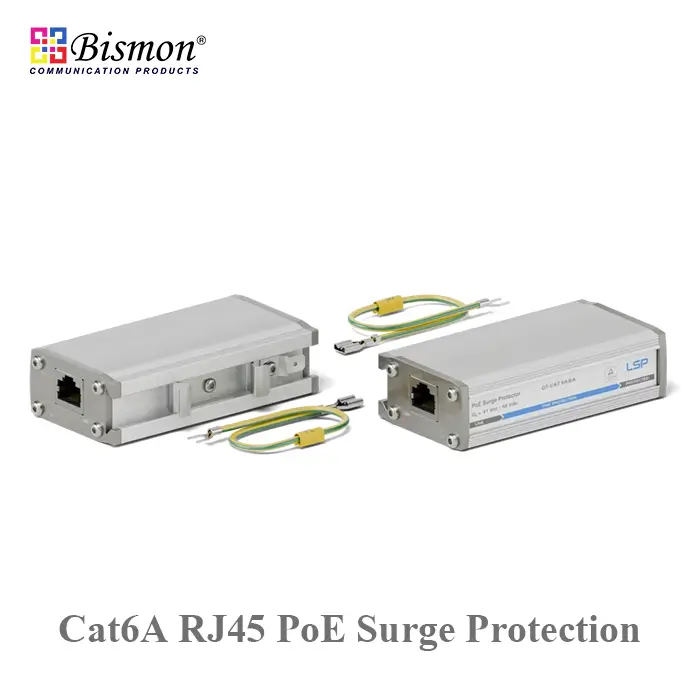

Cat.6A PoE Surge Protector (Class II / Type 2) speed 10GB Din-Rail
"อุปกรณ์ป้องกันไฟกระชากสาย LAN รองรับ PoE+ สำหรับสาย CAT 6A ความเร็ว 10 Gigabit Ethernet ตัวอุปกรณ์เป็นวัสดุ อลูมิเนียม ป้องกันฟ้าผ่า ทาง สาย LAN สำหรับ IP Camera, NVR, PoE Switch, Outdoor AP หรือระบบที่เกี่ยวข้อง"
Part number : B1-PoE-CAT6A
Brand : BISMON
Price : สอบถามราคา / Tel
Delivery time : 20 day
Warranty : 1 Year
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
Cat.6A PoE Surge Protector (Class II / Type 2) speed 10GB Din-Rail
Add to cart Done!
You can continue to products or select "Shopping Cart" for payment.
อุปกรณ์ป้องกันไฟกระชากสำหรับสายแลน Power over Ethernet (PoE Surge Protector) รุ่น B1-PoE-CAT6A เป็น SPD ระดับ Premium ตามมาตรฐาน IEC/EN 61643-21 (Class II / Type 2) สำหรับสาย CAT 6A รองรับ ความเร็ว 10 Gigabit Ethernet ตามมาตรฐาน ANSI/TIA/EIA-568 รองรับ PoE+ (IEEE 802.3at) กระแสสูงสุด 1A และแรงดัน DC สูงสุด 58V ป้องกันความเสียหายจากฟ้าผ่าและไฟกระชากที่เข้ามาทางสาย UTP/STP ตัวเรือนเป็น Aluminum Housing ทนทาน ติดตั้งบน DIN-Rail สำหรับ ระบบ IP Camera, NVR, PoE Switch, Wireless AP และอุปกรณ์ Network outdoor และสามารถติดตั้งกับราง DIN-RAIL มาตรฐานได้
The B1-PoE-CAT6A Power over Ethernet Surge Protector is a Premium-grade Class II / Type 2 SPD designed in strict accordance with IEC/EN 61643-21 international standards for CAT 6A cable systems supporting up to 10 Gigabit Ethernet per ANSI/TIA/EIA-568 specifications. Engineered to support PoE+ (IEEE 802.3at) with rated current up to 1A and maximum DC voltage of 58V, this device effectively protects against lightning and surge events transmitted through UTP/STP cables. Featuring robust aluminum housing and DIN-Rail mounting, ideal for IP Cameras, NVR systems, PoE Switches, Wireless Access Points, and outdoor network equipment.
Features
- Class II / Type 2 — ป้องกันไฟกระชากในสาย LAN
- รองรับสาย CAT 6A — 10 Gigabit Ethernet
- รองรับ PoE+ (IEEE 802.3at) สูงสุด 1A / 58V DC
- ผ่านมาตรฐาน IEC/EN 61643-21 (Signal/Data SPD)
- ตามมาตรฐาน ANSI/TIA/EIA-568 (Cable Standard)
- Lightning Protection Zone (LPZ) 0B-2 และสูงกว่า
- Total Discharge Current 2.5 kA (10/350μs)
- Nominal Discharge C2 (Total) 7 kA
- Up Line-Earth ≤ 600V — ระดับการป้องกันดีเยี่ยม
- Up Line-Line ≤ 500V — ป้องกัน Differential Mode
- ตัวเรือน Aluminum Housing ? — ทนทาน กันรบกวน EMI
- ขั้วต่อ RJ45 มาตรฐาน — Plug & Play ติดตั้งง่าย
- ติดตั้งบน DIN-Rail (Optional bracket)
- Certified TUV / CB
-รับประกัน 1-3 ปี โดย Bismon
Application / การใช้งาน
ระบบกล้องวงจรปิด (CCTV / IP Camera):
- IP Camera Outdoor (PoE)
- PTZ Camera ใช้พลังงาน PoE+
- NVR ที่รับสัญญาณจาก PoE Switch
- Smart City CCTV
- ตู้ Outdoor CCTV บนเสา
ระบบเครือข่าย Network:
- PoE Switch (24-port, 48-port)
- Industrial Switch outdoor
- Network Cabinet ภายนอกอาคาร
- Distribution Cabinet
ระบบ Wireless / WiFi:
- Outdoor Wireless Access Point (AP)
- WiFi Mesh ภายนอก
- Long-range Wireless Bridge
- Cellular Antenna PoE
ระบบภายในอาคาร:
- ตู้ Network Server Room
- Patch Panel
- Distribution Frame
- Telecom Closet
Smart Infrastructure:
- Smart Streetlight ระบบ PoE
- Smart Parking
- Smart Traffic Light
- Smart Building Automation
Industrial:
- Industrial Network Camera
- Factory Monitoring System
- SCADA / IoT Gateway
ทำไมต้องเลือก B1-PoE-CAT6A?
1.รองรับ CAT 6A — 10 Gigabit Ethernet ?
- รองรับสายความเร็วสูงสุด
- Future-proof สำหรับอนาคต
- เหนือกว่ารุ่น CAT5e ทั่วไปในตลาด
2. รองรับ PoE+ (IEEE 802.3at) เต็มประสิทธิภาพ
- กระแส 1A — เพียงพอสำหรับ PoE+ Camera, AP
- ไม่ลด Power สู่อุปกรณ์ปลายทาง
3. Up ต่ำเพียง 500-600V
- ปลอดภัยสำหรับอุปกรณ์ Sensitive (Camera, Switch)
- ป้องกันได้ละเอียดกว่ารุ่น Up 700V+
4. Total Discharge 7 kA — ทนกระแสสูง
- ป้องกันฟ้าผ่าใกล้เคียงและ Surge ทาง LAN
- อายุการใช้งานยาว
5. Aluminum Housing
- ทนทานกว่าพลาสติก
- EMI Shield ป้องกันสัญญาณรบกวน
- ระบายความร้อนดีกว่า
6. RJ45 Plug & Play
- ติดตั้งง่าย ไม่ต้องตัดสาย
- ใช้กับ Patch Cord ทั่วไปได้
7. Certified TUV / CB
- ผ่านมาตรฐานสากล
- ใช้กับงานราชการ / TOR ได้
Specifications Table
|
Parameter |
Value |
|
Model No. |
B1-PoE-CAT6A (LSP: DT-CAT 6A/EA) |
|
SPD Type |
Class II / Type 2 |
|
SPD Standard |
IEC/EN 61643-21 |
|
Cable Standard |
CAT 6A — ANSI/TIA/EIA-568 |
|
PoE Standard |
PoE+ (IEEE 802.3at) |
|
Lightning Protection Zone |
LPZ 0B-2 and higher |
|
Rated Current IL |
1 A |
|
Max. Continuous Voltage AC (Uc) |
41 V |
|
Max. Continuous Voltage DC (Uc) |
58 V |
|
Max. Continuous Voltage DC Pair-Pair PoE (Uc) |
57 V |
|
Impulse Durability (Line-Line) C1 |
500V / 250A |
|
Impulse Durability (Line-PE) C2 |
5 kV / 2.5 kA |
|
Impulse Durability (Line-PE) C3 |
1000V / 10A |
|
Impulse Durability (Line-PE) C1 |
1000V / 500A |
|
Nominal Discharge Current C2 (Total) |
7 kA |
|
Total Discharge Current (10/350μs) |
2.5 kA |
|
Voltage Protection Up C1 (Line-Line) |
500 V |
|
Voltage Protection Up C2 (Line-Earth) |
600 V |
|
Voltage Protection Up C3 (Line-Earth) |
600 V |
|
Connector |
RJ45 (8P8C) |
|
Enclosure Material |
Aluminum Housing ? |
|
Earthing |
Connecting Line |
|
Mounting |
DIN-Rail Mountable |
|
Certifications |
TUV / CB Certified |
|
Warranty |
1 Year (Standard) / 3 Years (Professional Edition) |



Specifications Table
|
Parameter |
Value |
|
Model No. |
B1-PoE-CAT6A |
|
SPD Type |
Class II / Type 2 |
|
SPD Standard |
IEC/EN 61643-21 |
|
Cable Standard |
CAT 6A — ANSI/TIA/EIA-568 |
|
PoE Standard |
PoE+ (IEEE 802.3at) |
|
Lightning Protection Zone |
LPZ 0B-2 and higher |
|
Rated Current IL |
1 A |
|
Max. Continuous Voltage AC (Uc) |
41 V |
|
Max. Continuous Voltage DC (Uc) |
58 V |
|
Max. Continuous Voltage DC Pair-Pair PoE (Uc) |
57 V |
|
Impulse Durability (Line-Line) C1 |
500V / 250A |
|
Impulse Durability (Line-PE) C2 |
5 kV / 2.5 kA |
|
Impulse Durability (Line-PE) C3 |
1000V / 10A |
|
Impulse Durability (Line-PE) C1 |
1000V / 500A |
|
Nominal Discharge Current C2 (Total) |
7 kA |
|
Total Discharge Current (10/350μs) |
2.5 kA |
|
Voltage Protection Up C1 (Line-Line) |
500 V |
|
Voltage Protection Up C2 (Line-Earth) |
600 V |
|
Voltage Protection Up C3 (Line-Earth) |
600 V |
|
Connector |
RJ45 (8P8C) |
|
Enclosure Material |
Aluminum Housing ? |
|
Earthing |
Connecting Line |
|
Mounting |
DIN-Rail Mountable |
|
Certifications |
TUV / CB Certified |
|
Warranty |
1 Year (Standard) / 3 Years (Professional Edition) |
Download Datasheet
