OVERVIEW

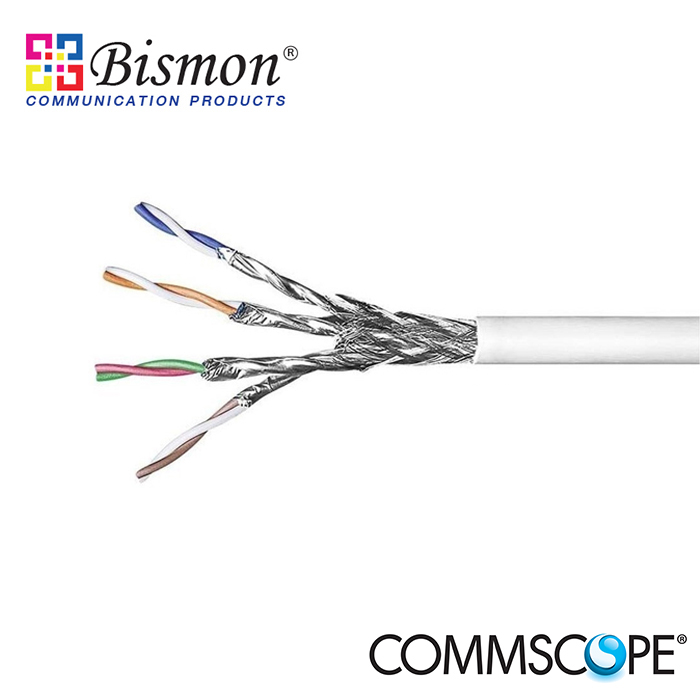

Copper Cable, category 7, 4 pair simplex, S/FTP, LSFRZH, XG, 23 AWG solid, 305 m, white

Specifications

General

ANSI/TIA Category                                             7

Cable Component Type                                    Horizontal

Cable Type                                                          S/FTP (shielded)

Conductor Type, singles                                   Solid

Conductors, quantity                                        8

Jacket Color                                                        White

Pairs, quantity                                                    4

Transmission Standards                                  ANSI/TIA-568.2-D | CENELEC EN 50288-4-1 | ISO/IEC 11801 Class F

Dimensions

Cable Length                                                     305.105 m | 1001 ft

Diameter Over Conductor                             1.501 mm | 0.0591 in

Diameter Over Jacket, nominal                    7.29 mm | 0.287 in

Conductor Gauge, singles                              23 AWG

Material Specifications

Conductor Material                                         Bare copper

Insulation Material                                          Polyolefin

Jacket Material                                                 Low Smoke Fire Retardant Zero Halogen (LSFRZH)

Shield (Tape) Material                                     Aluminum/Polyester
