OVERVIEW

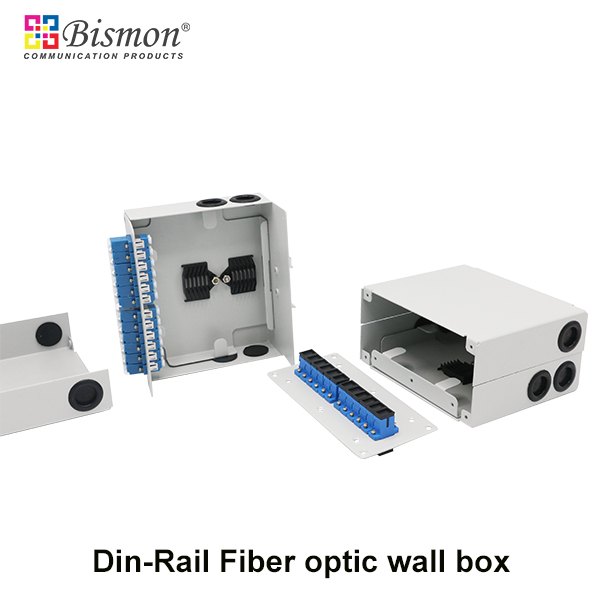

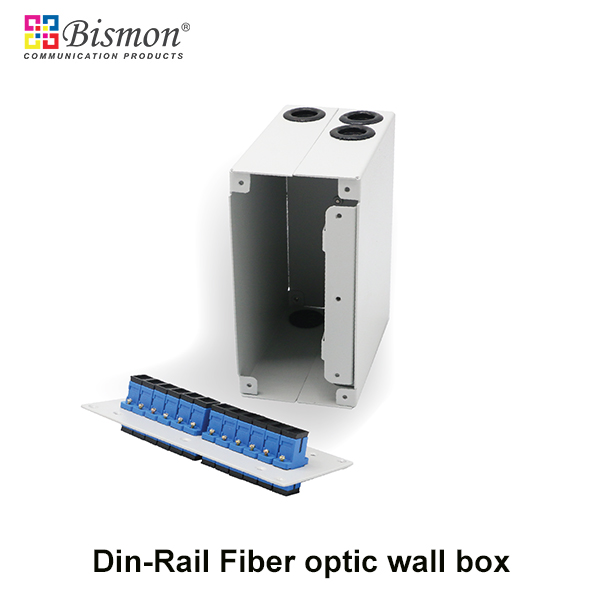

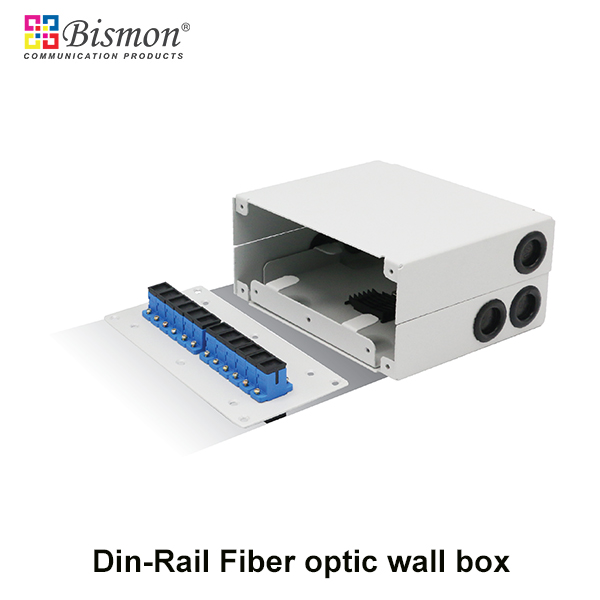

BISMON’s design of DIN Rail fiber optic enclosures offer a rugged and versatile product line ideal for secure terminations within industrial settings. Utilizing BISMON’s existing Adapter SC/LC series adapter plates for enclosure product family is based on a proven design that offers versatility and ease of installation. The enclosures can accommodate one or two adapter plates and include a splice block for fusion splicing up to 12 fibers. Optical fiber cable ties for managing proper cable bend radius are also included. The DIN Rail enclosure features a fixed outer housing access to the terminated cable. A capture screw secures the housing Upgrades or modifications to the existing network structure can be made as easily as changing an adapter plate for support many style for SC/LC type with Multi-mode & Single-mode

Feature

•  Din-Rail fiber optic enclosure

•  Available SC or LC connector fiber optic

•  Support SC-connector Max 12 Core, Simplex Type

•  Support LC-connector Max 24 Core, Duplex Type

•  Compact size for limited space requirements

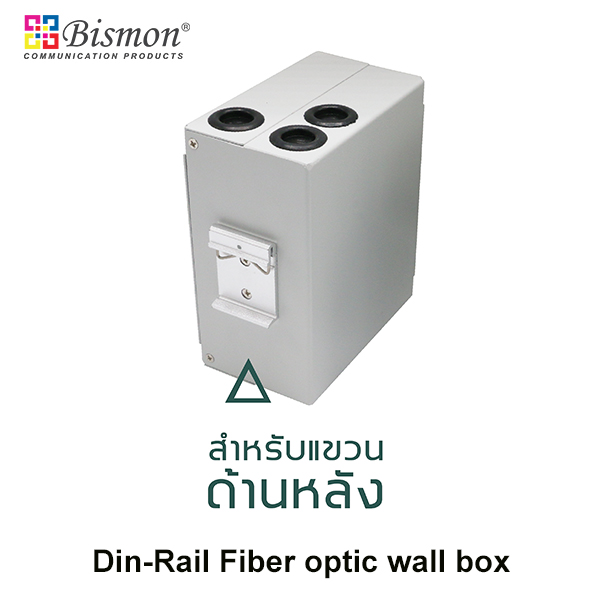

•  Quick snap-on installation onto any standard 35mm DIN rail

•  All-metal construction ensures durable and reliable terminations

•  Interior cable management for proper bend radius requirements

•  Options for cable entry and exit grommets or glands

•  Made from Aluminum material high grade

Applications:

•  Industrial Automation

•  Transportation

•  Oil & Gas

•  Power Generation and Transmission

•  Mining

Specification

•  Dimension : 12.2x7.3x14.cm.

•  Cable entry : 3 top and 3 bottom

•  Cable entry dia: max:1.6mm

•  Material : Metal Steel high grade

•  Max capacity adapter: 12 Fiber

•  DIN-Rail Style

•  Splice tray include 12 Core

•  Support Fiber adapter SC simplex and LC duplex Single-mode and Multi-mode
