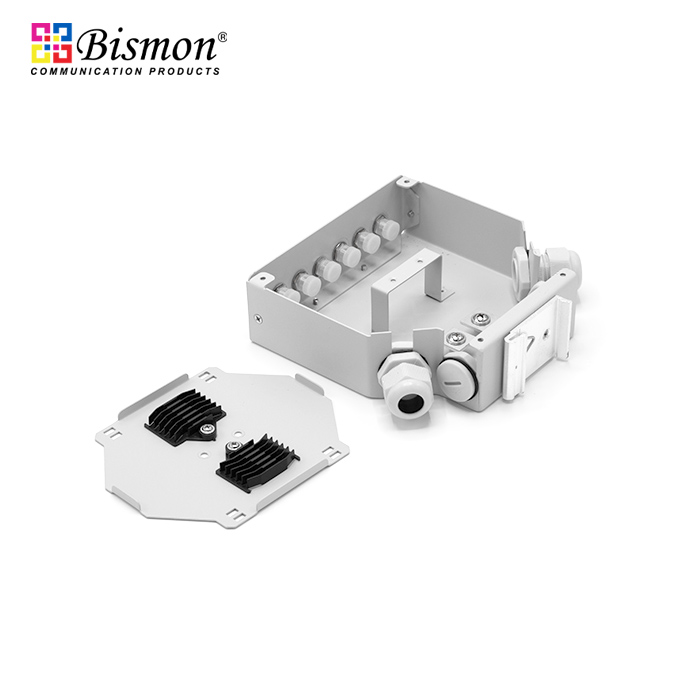

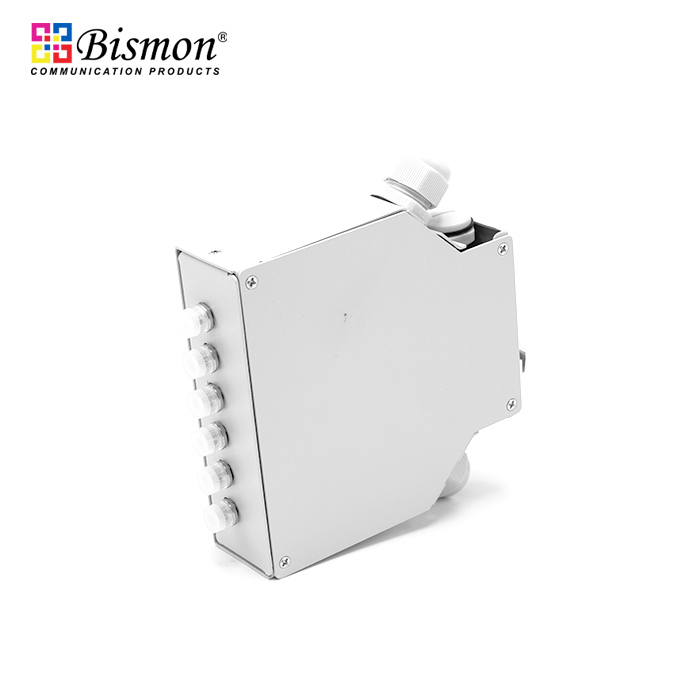

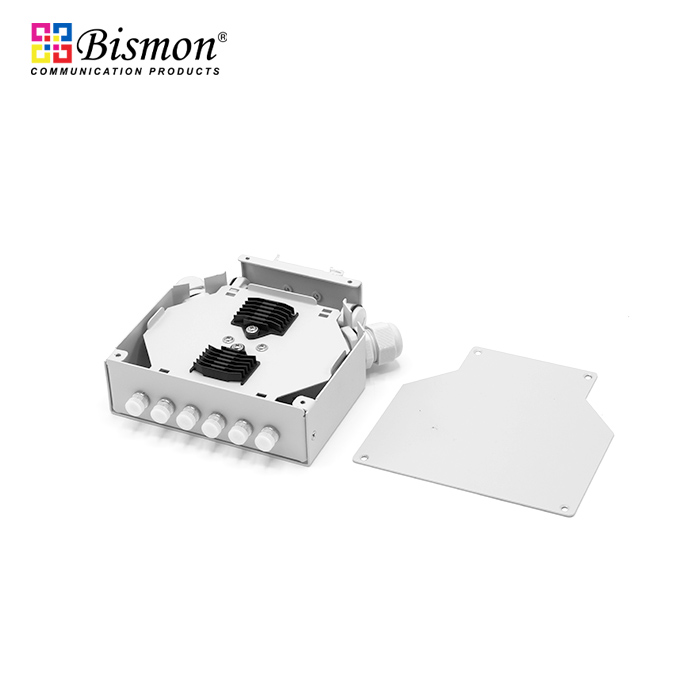

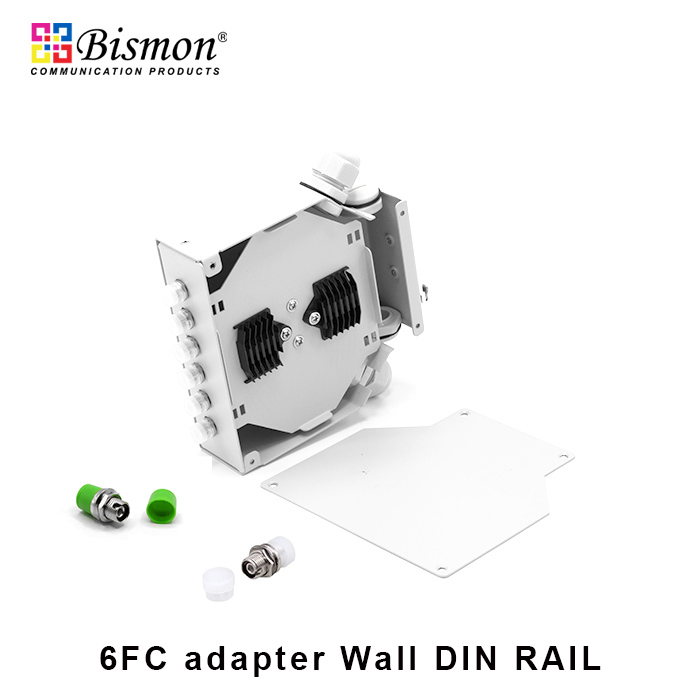

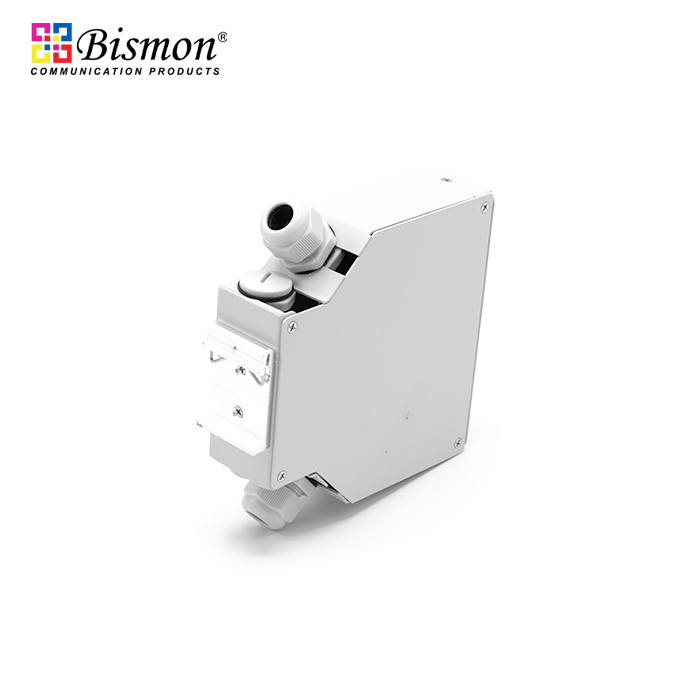

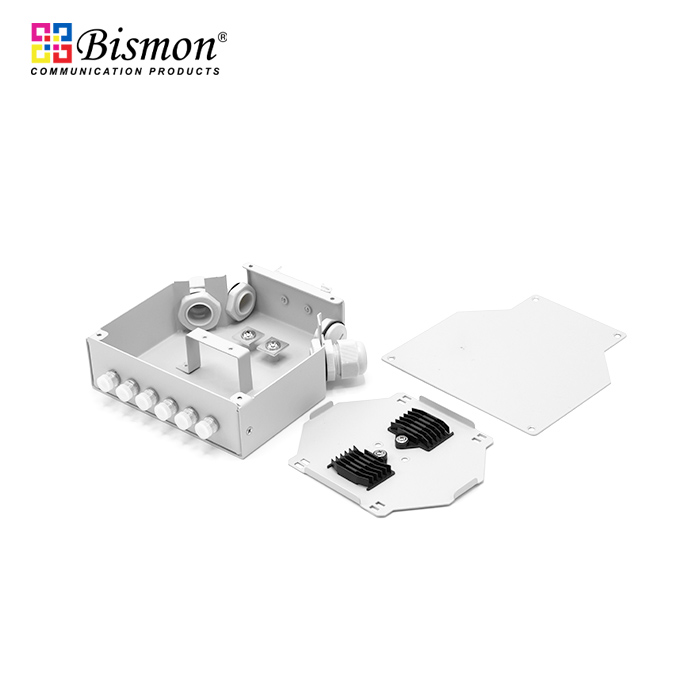

DIN Rail 6 Core FC adapter D-type Fiber optic terminal box is available for the distribution with FC adapter single-mode 6 core and terminal connection for various kinds of optical fiber systems,

especially suitable for mini-network terminal distribution, in which the optical cables, patch cores, or pigtails are connected. All of the Din Rail boxes can be fully populated.

- FC adapter simplex D-type = 6 pcs

Support Single-mode  adapter

Application:

- Suitable for Pigtail, ribbon, and bunch cable connect distribution

- Used for wall-mounted applications

- Used in FTTH, Telecommunications, CATV etc.

Feature:

- Cold rolled steel

- Suitable for different adapters: FC

 - 4 pcs cable entry/exit ports; 6 pcs pigtail entry/exit ports

- Splicing module of 12 fibers inside

- Max. 6 pcs adapters can be loaded FC adapter simplex for 6 Core

- Dimension: 129x130x40.4mm

- Color Grey color (RAL7035)
