PowerVault ME4 Series
|

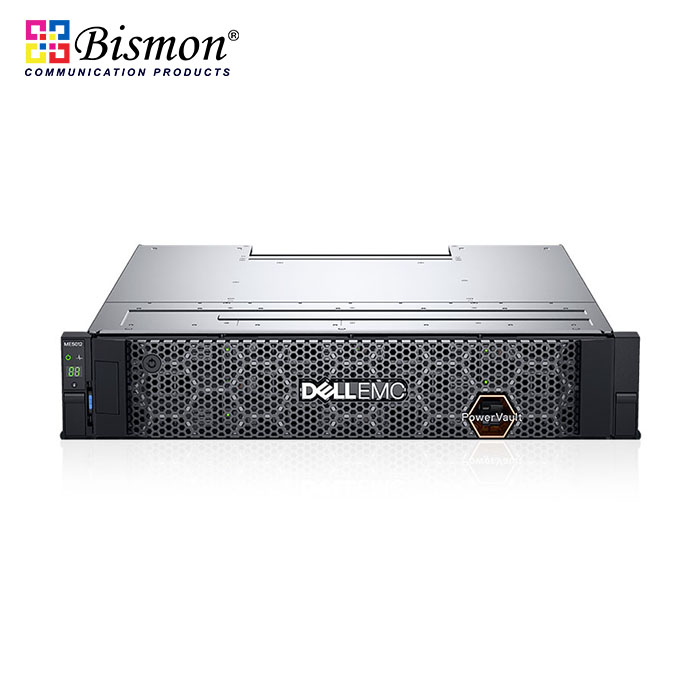

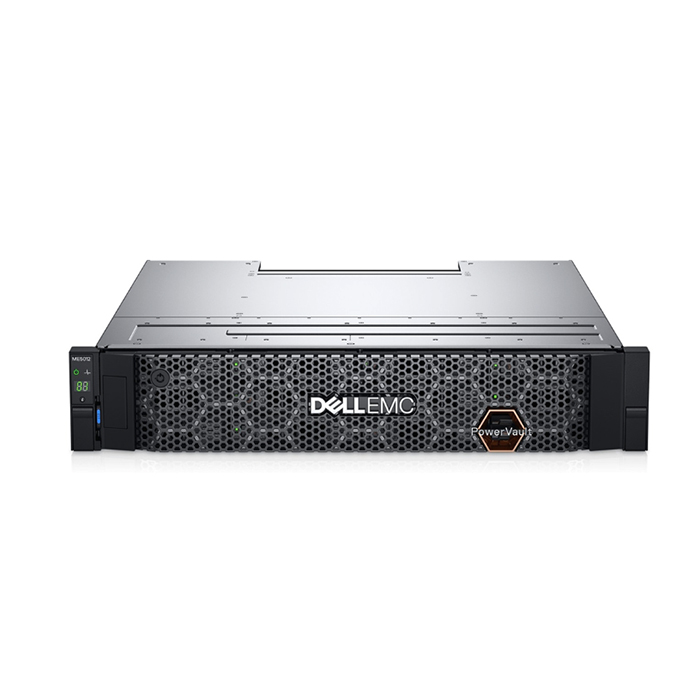

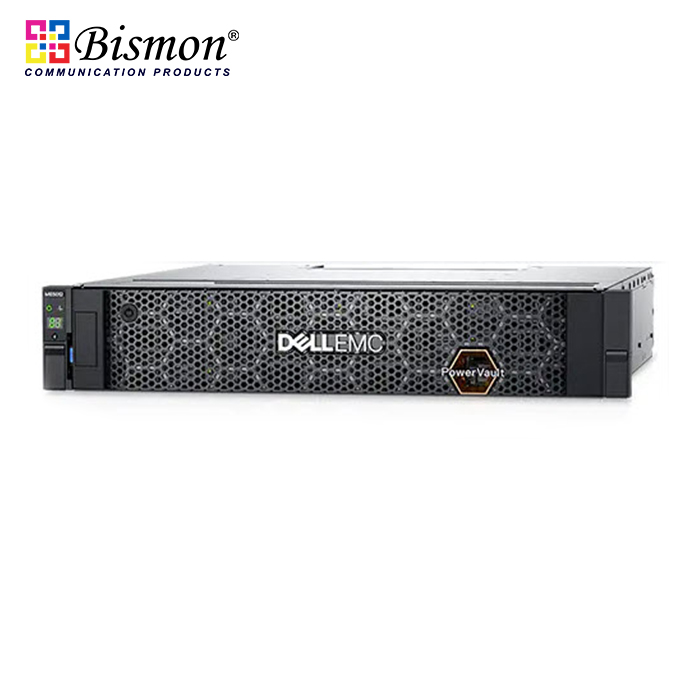

ME5012
|
ME5024
|

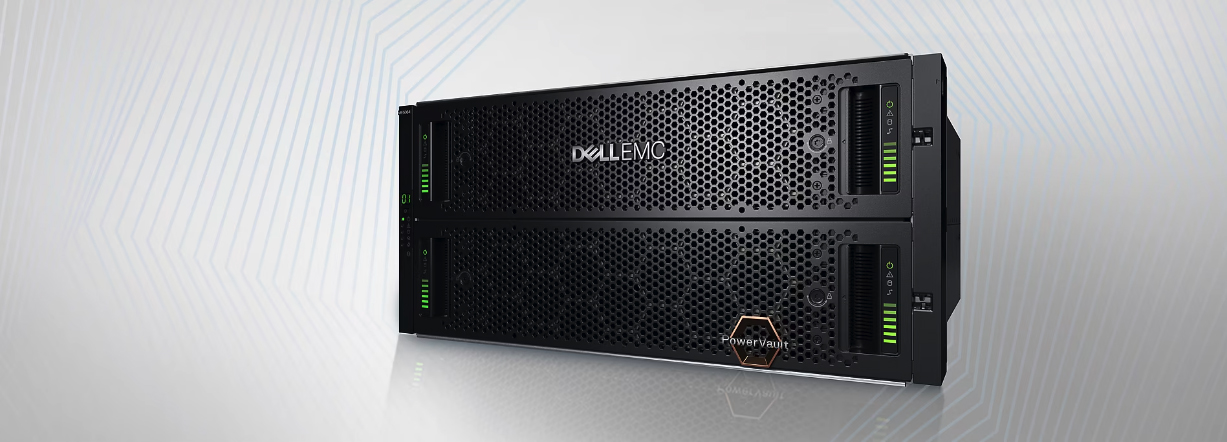

ME5084
|
|
Chassis Overview
|
|
Chassis format
|
All-in-one (single/dual controllers, internal drive bays, networking) with expansion options
|
|
Rack size
|
2U
|
2U
|
5U
|
|
Controllers
|
2 hot-swappable per chassis (dual active)
Single/dual controller support for 2U
|
2 hot-swappable per chassis (dual active)
Single/dual controller support for 2U
|
2 hot-swappable per chassis (dual active)
Dual controller only support for 5U
|
|
Processors
|
Intel Xeon Processor
|
Intel Xeon Processor
|
Intel Xeon Processor
|
|
Internal storage
|
12 x 3.5” drive bays (2.5” drive carriers supported)
|
24 x 2.5” drive bays
|
84x 3.5” drive bays (2.5” drive carriers supported)
|
|
System memory
|
16GBper controller (32GB total)
|
16GBper controller (32GB total)
|
16GBper controller (32GB total)
|
|
Expansion Capacity
|
|
Min/Max drive count
|
2/264
|
2/276
|
28/336
|
|
Max raw capacity
|
2.40PB (with 9xME412 expansion)
1.83PB (with 9xME424 expansion)
1.89PB (with 9xME424 expansion)
5.28PB (with 3xME484 expansion)
|
2.34PB (with 9xME412 expansion)
5.22PB (with 3xME484 expansion)
|
6.72PB (with 3xME484 expansion)
|
|
NAS Support
|
Supported with NX Series Windows NAS appliance
|
|
Storage media
|
SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
- NLSAS 7.2K 3.5” – 4TB, 8TB, 12TB, 16TB, 16TB FIPS, 20TB
- SAS 10K 2.5” – 1.2TB, 2.4TB, 2.4TB FIPS
- SSD – 960GB RI, 1.6TB MU, 1.92TB, 3.84TB, 3.84TB FIPS, 7.68TB RI
- SDD and HDD: FIPS-certified SEDs
|
|
Network and Expansion I/O
|
|
Host interface
|
FC, iSCSI (optical or BaseT), SAS
|
|
Max 32Gb FC ports
|
8 per array (support auto-negotiate to 16Gb)
|
|
Max 25Gb iSCSI ports
|
8 SFP+ or SFP28 ports per array
|
|
Max 10Gb iSCSI ports
|
8 BaseT ports per array (only support auto negotiate to 1Gb)
|
|
Max 12Gb SAS ports
|
8 12Gb SAS ports
|
|
Max management ports
|
2 per array (1Gb BASE-T)
|
|
Disk expansion protocol
|
12Gb SAS
|
|
Disk interface expansion ports
|
2 12Gb SAS (wide-Port) per array (1 port per controller)
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
|
|
|
ME4012
|
ME4024
|
ME4084
|
|
Functional
|
|
Array configurations
|
All-flash, hybrid flash, HDD only arrays
|
|
Storage format
|
Native block-level SAN or DAS
|
|
Data Optimization
|
|
Auto-tiering
|
Up to 3 primary (media-based) tiers
|
|
RAID support
|
RAID 1, 5, 6, 10, or ADAPT RAID; any combination of RAID levels can exist in single array
|
|
Adapt
|
Distributed erasure coding that reduces rebuild times when drive failures occur
|
|
Thin provisioning
|
Active by default on all volumes, operates at full performance across all features
|
|
Snapshots
|
1024 maximum snapshots per array
|
|
Data Mobility and Migration
|
|
Replication
|
Asynchronous replication via FC or iSCSI – ME4 to ME5; ME5 to ME4; ME5 to ME5
Target/source relationships may be one-to-many or many-to-one
|
|
Volume copy
|
Copy complete standalone volumes
|
|
Data Protection, Disaster Recovery, Security
|
|
Business continuity
|
VMware Site Recovery Manager
|
|
Data-at-rest encryption
|
Self-encrypting drives (SEDs) in SSD or HDD formats
Full Disk Encryption (FCE) based on AES-256
Drives certified to FIPS 140-2 Level 2
|
|
Key manager
|
Internal controller key management
|
|
Management
|
|
Management
|
PowerVault Manager HTML5 GUI element manager, CLI, OpenManage Enterprise 3.9
|
|
VMware vCenter
|
VMware vCenter plugin to manage ME5 arrays through vCenter.
|
|
Scripting
|
CLI API
Redfish/Swordfish REST API
|
|
Host OS support
|
Windows 2022, 2019 and 2016
RHEL 8.2 and 7.8
SLES 15.2 and 12.5
VMware 7.0 and 6.7
Citrix XenServer 8.x and 7.x
|
|
Virtualization integration
|
VMware vSphere (ESXi)
vCenter; SRM
Microsoft Hyper-V
|
|
|
ME5012
|
ME5024
|
ME5084
|
|
Physical
|
|
Rack size
|
2U
|
2U
|
5U
|
|
Height
|
8.79 cm (3.46 inches)
|
8.79 cm (3.46 inches)
|
22.23 cm (8.75 inches)
|
|
Width
|
48.30 cm (19.01 inches)
|
48.30 cm (19.01 inches)
|
48.30 cm (19.01 inches)
|
|
Depth
|
61.87mm (24.36 inches)
|
54.78mm (21.56 inches)
|
981mm (38.62 inches)
|
|
Weight at max configuration
|
32.00 kg (71.00 lbs)
|
30.00 kg (66.00 lbs)
|
135.00 kg (298.00 lbs)
|
|
Weight empty
|
4.80 kg (10.56 lbs) without drives
|
4.80 kg (10.56 lbs) without drives
|
64.00 kg (141.00 lbs) without drives
|
|
Power
|
|
Power/wattage
|
580W
|
580W
|
2200W
|
|
Heat dissipation
|
1980 BTU
|
1980 BTU
|
7507 BTU
|
|
Voltage
|
100-240 VAC
|
100-240 VAC
|
200-240 VAC
|
|
Frequency
|
50/60 Hz
|
50/60 Hz
|
50/60 Hz
|
|
Amperage
|
7.6-3.0A (x2)
|
7.6-3.0A (x2)
|
11.07-9.23A (x2)
|
|
Environmental Operating Conditions
|
|
Operating temperature
|
5°C - 35°C (41°F - 95°F, derated by 1°C per 300mm above 900m)
|
|
Non-operating temperature
|
-40°C to 70°C (-40 to 158°F) Maximum temperature changes in an hour: 20°C
|
|
Operating humidity ranges (non-condensing)
|
-12C dew point minimum, 8% to 85% maximum, non-condensing
|
|
Non-operating humidity (noncondensing)
|
21°C dew point maximum, 5% to 100% maximum, non-condensing
|
| |
