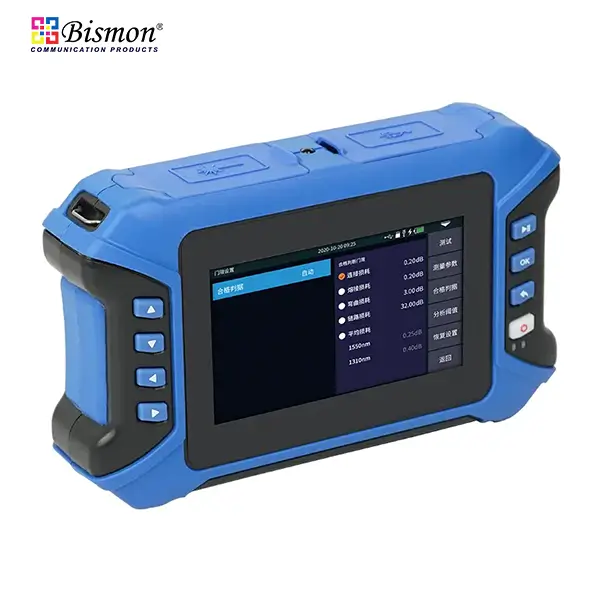

F1 Mini OTDR 4.3-in LCD touchscreen SM 1310/1550nm(32/30dB)
Add to cart Done!
Product added to shopping cart successfully.
You can continue to products or select "Shopping Cart" for payment.
A 4.3-in LCD touchscreen and buttons make it easy to use.
Wavelength: 1310 nm/1550 nm. Dynamic Range: 32/30 dB
A minimum test blind zone of 1 m.

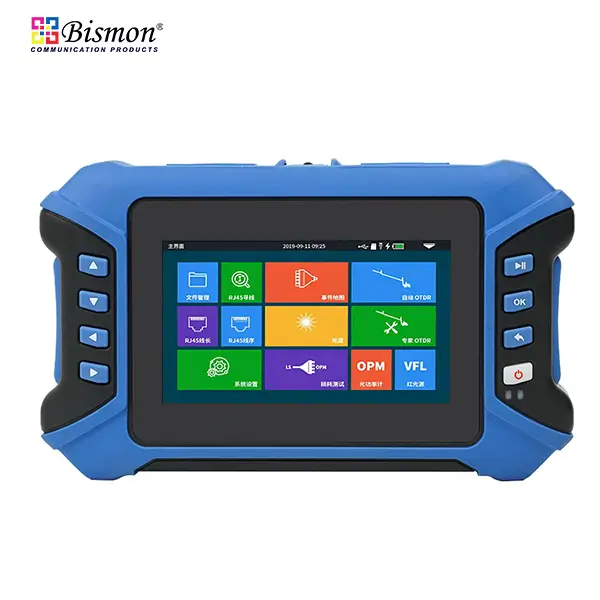

Integrates OTDR, Optical Power Meter (OPM), Visual Fault Locator (VFL), Optical Light Source (OLS), and RJ45 network cable testing — all in one compact device.
Less than 1 kg and portable, with a 12-hour battery life.
Enables one-click testing, auto-diagnosis of results, and real-time measurement for easy, efficient use.
Supports USB, MiniUSB, and Ethernet interfaces, enabling connection to USB flash drives, printers, and PCs.

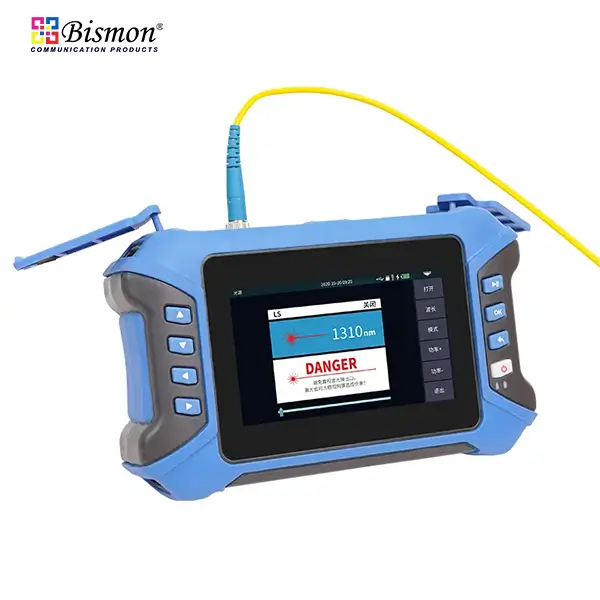

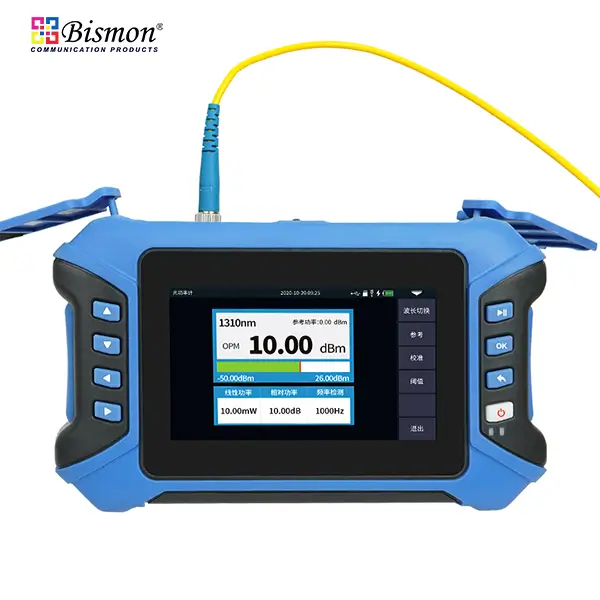

OPM, VFL, OLS
Fault location
Optical loss test

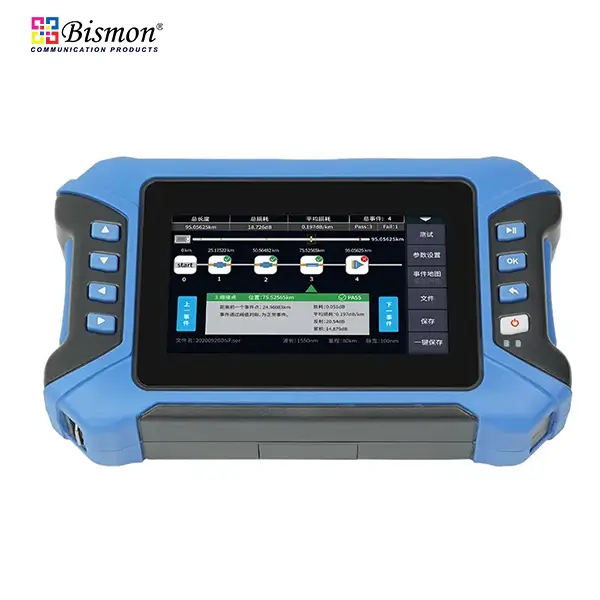

Event Map (optical eye)
The mini OTDRs supports remote control and multi-interface expansion, and is suitable for fiber patch cord testing and FTTx link maintenance. It serves as the ideal testing companion for field engineers.
Specifications
Model / Items
F1 mini OTDR
Wavelength
1310/1550 nm
Dynamic Range
32/30 dB
Event Dead Zone(m)
1 m
Attenuation Dead Zone(m)
8 m
Test Range
500 m, 1 km, 2 km, 4 km, 8 km, 16 km, 32 km, 64 km, 128 km, 256 km
Distance Accuracy
±(1 m+ sampling interval + 0.005%*test distance)
Optical Connector
FC/PC ?interchangeable SC, ST?
OPM
-70 dBm to +26 dBm
Battery
6300mAh. Standby time over 12 hours
Weight
1 kg
