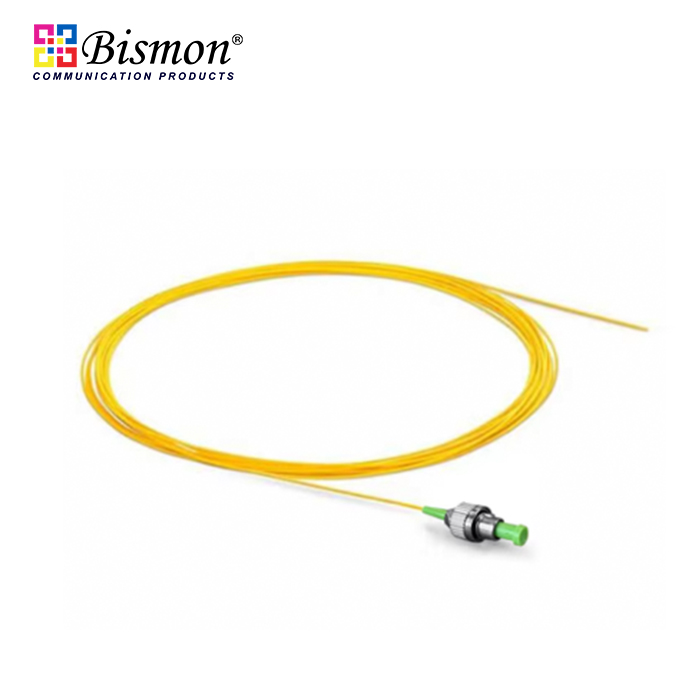

FC/APC Pigtail Fiber optic simplex 1.5M 9/125um Single-mode, OD:3.0mm, PVC Sheath

FC/APC Pigtail Fiber optic simplex 1.5M 9/125um Single-mode, OD:3.0mm, PVC Sheath

Part number : 9SFCAPP015

Brand : Bismon: Fiber Pigtail

Price : 80.00 Baht

(Dealer price can log-in/Ex-Vat 7%)

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

OVERVIEW

FC/APC Pigtail Fiber simplex 1.5M 9/125um Single-mode

Features:

• UPC Polishing

• High return loss, Low insertion loss

• High reliability, High temperature stability

• Compliant with Telecordia GR-326-Core, TIA/EIA and IEC

• Insert draw connection (simple, easy)

• Comply to IEC standard

Applications:

• 10GB/s high speed LAN Network

• Telecommunication networks

• Local area networks (LANs)

• Wide area networks (WANS)

• High speed and legacy networks with Gigabit & Fast Ethernet

• Supports video, data and voice service

Specifications

Fiber Type: Single Mode (G.652.D, G.657A1, G.657A2)

Insertion loss(dB): ≤0.2

Temperature(C): -40~+80

Repeatability(dB): ≤0.1

Durability: ≥ 1,000 Matings

Return loss(dB): PC≥45, UPC≥50, APC≥65

Cable diameter(mm): Ø3.0, Ø2.0, Ø0.9

Tensile Strength(N): ≥90N(OD:3.0), ≥ 70N (OD:2.0mm)

Bend radius min.: 20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm

Download Datasheet
