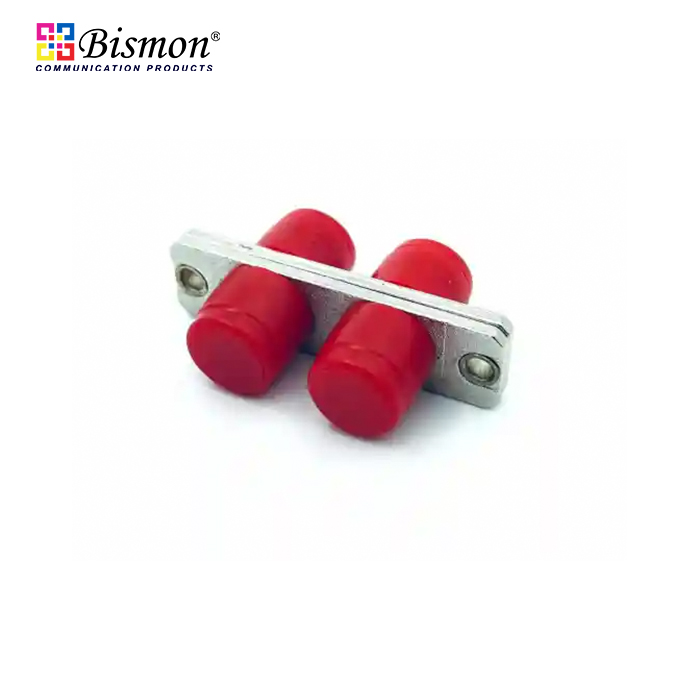

FC-FC adapter Duplex Steel Single-mode
Part number : B1-ASFC-D
Brand : BISMON
Price : 72.00 Baht
FC-FC adapter Duplex Steel Single-mode
The optical fiber connector is one of the most basic passive components in optical fiber communication. There are different ferrule materials (ceramic, plastic, metal), and a variety of body and boot colors to choose from. Through the process of curing and polishing, etc., the connector is combined with various fiber optic cables and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system,
Design & Materials
| Adaptor material | Zinc Alloy with nickel plating |
| Split Sleeve Material | Zirconia ceramic |
| Capillary diameter tolerance (Single Mode) | 126 ± 0.5μm |
| Capillary diameter tolerance (Multimode) | 127± 0.5μm |
| Operating Temperature | -40 to +85º C |
| Storage Temperature: | -40 to +85º C |
| Mating durability | >500 Mating Cycles |
Standards Compliance
- TIA/EIA-568-C.3
- TIA/EIA-604 RoHS
- REACH SvHC compliant
