OVERVIEW

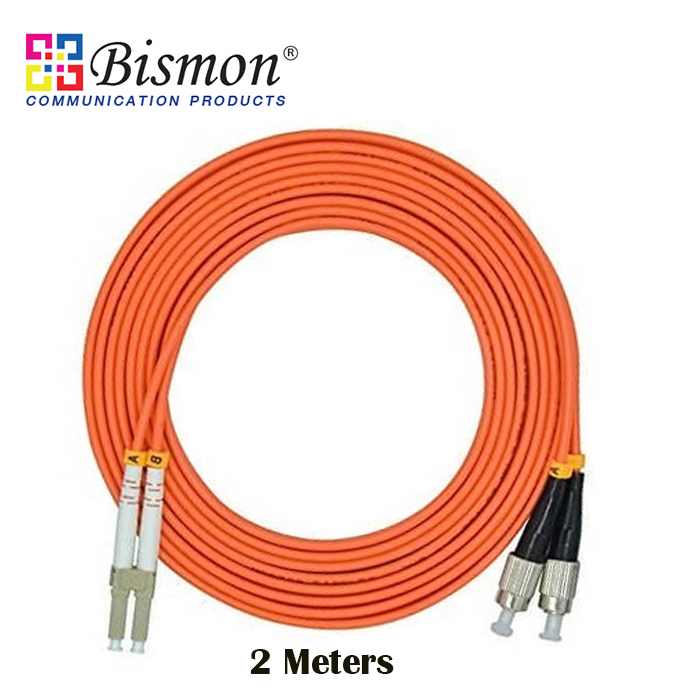

FC-LC Patch Cord Duplex Multi-Mode 50/125um (2,3,5,10 Meters)

Features

 • Optical testing follows ITU, IEU and EIA/TIA-FOTP spec

 • Optical testing follows Telcordia GR-326-CORE

 • Meet UL, OFNR & OFNP flame retardant rating

 • Lowest losses at interconnections

 • High reliability and stability

 • High return loss and low insertion Loss

 • Comply to IEC standard

Applications

 • CATV, Metro, Test equipment

 • Telecommunication networks

 • Local area networks (LANs)

 • Wide area networks (WANs)

 • Premise installations

 • Data processing networks

Specification

 • Insertion loss(dB):               ≤0.25

 • Temperature(C):                 -40~+80

 • Repeatability(dB):               ≤0.1

 • Interchange(dB):                 ≤0.2

 • Return loss(dB):                   PC≥45, UPC≥50, APC≥65

 • Cable diameter(mm):         Ø3.0, Ø2.0, Ø0.9

 • Ferrule material:                 Zirconia Ceramic

 • Bend radius min.:                20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm

 • Cable design:                       PVC Jacket or LSZH

 • Color:                                   Orange color
