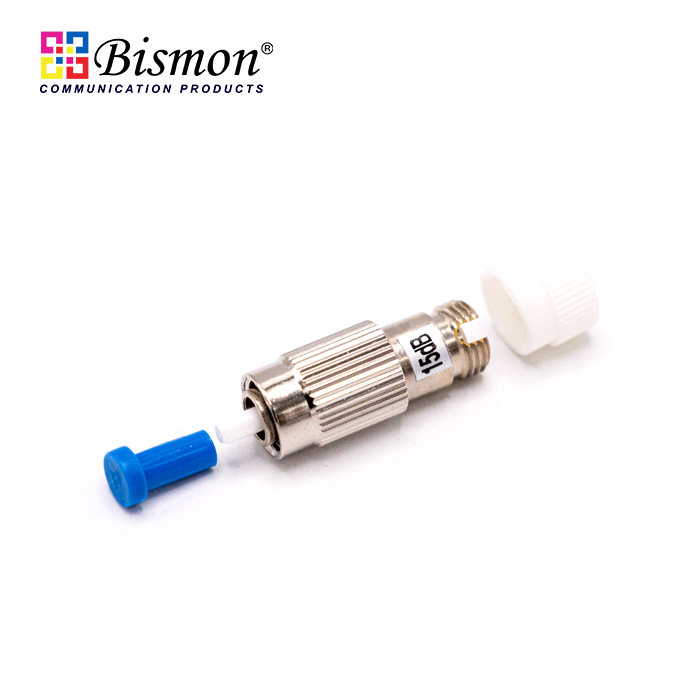

FC/UPC male-FC female 15dB Attenuator for 1310/1550nm
Part number : B1-8723
Brand : Attenuator Fiber
Price : 240.00 Baht
| OVERVIEW |
| fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source. |
| Features |
| • Metal Ion Doped Fiber |
| • High-power Light Source Durability |
| • Wavelength Independence / Precise Control of Attenuation Range |
| • High Attenuation for Connector & In-line Type Attenuators |
| • Attenuation Levels Ranging from 1dB to 30dB |
| • Standard and Premium Tolerances, plus Custom Configurations. |
| • 1310nm, 1550nm, 1250-1625nm and 1350/1550nm Dual Wave Lengths |
| Application |
| • Fiber optical CATV |
| • Fiber optical telecommunication system |
| • Fiber optical sensor |
| • Fttx |
| Specification |
| Connector : FC/UPC male-FC female |
| Wavelength : 1310/1550nm |
|
Attenuation range : 15dB Return Loss UPC type: 55dB Polarization Dependent Loss: 0.2dB Durability: 500 Cycles Operating Temperature: -40 C - 75 C Humidity: 75 C 95% RH
|
