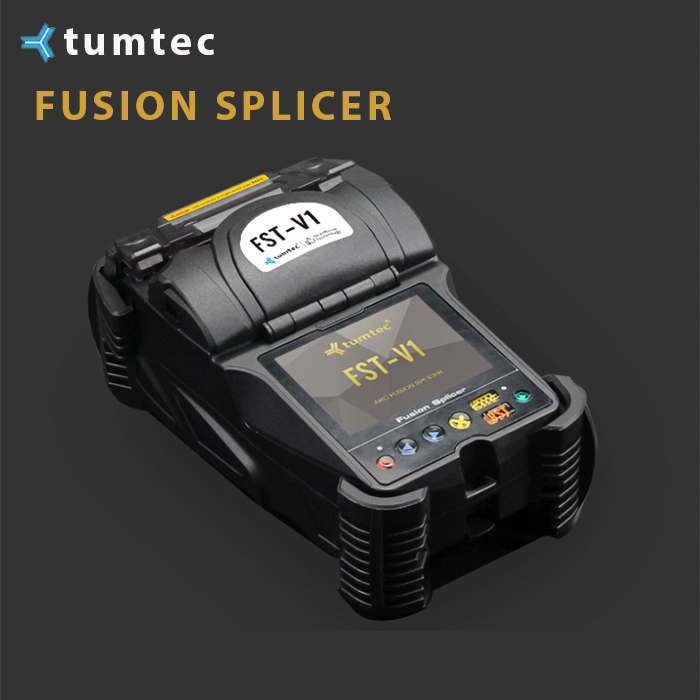

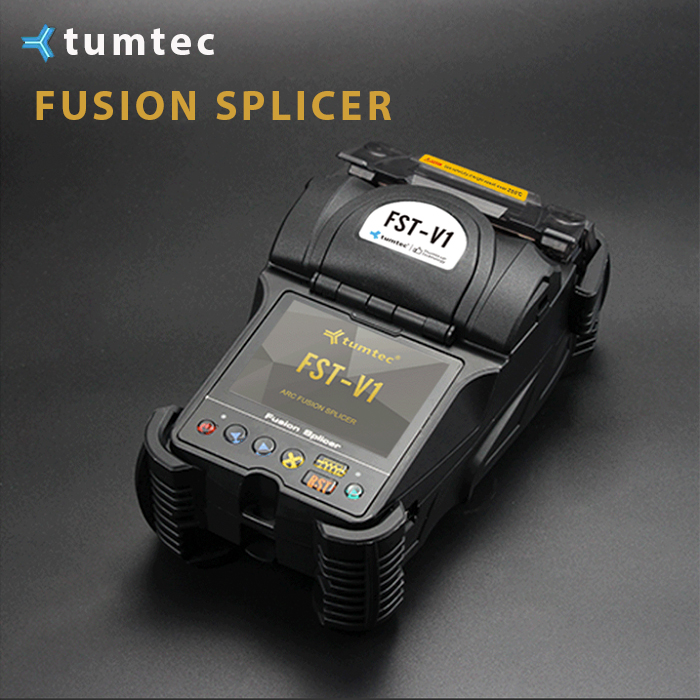

FST-V1 TUMTEC Mini Fusion Splicer Cladding Alignment

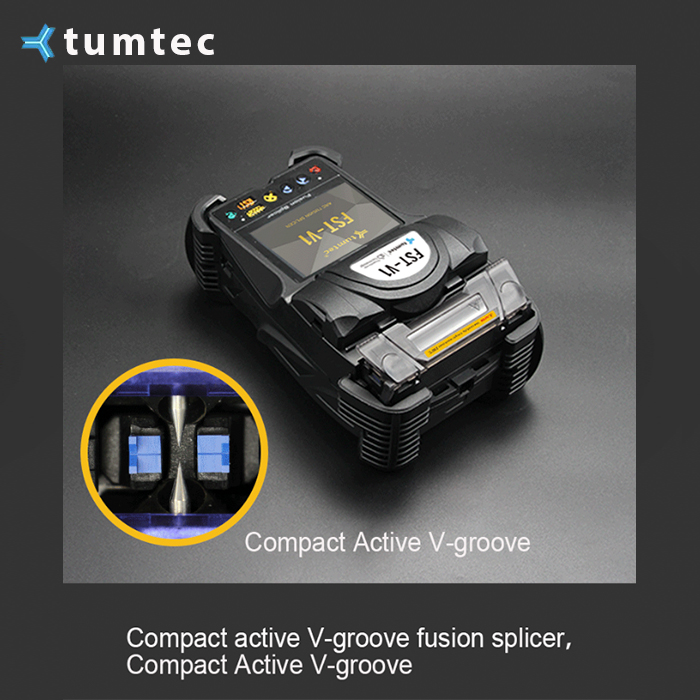

ST-V1 Fiber Optic Splicing Machine Fusion Machine :
- Tumtec new fiber fusion splicer FST-V1, up to 3S boot, 6S splicing. 13S heating.
- Compact active V-groove fusion splicer.
- Unique three-dimensional core setting.
- excellent splicing effect.
- lower loss, and improve work efficiency.
- Light weight, small size, handheld splicing device, more convenient to carry.

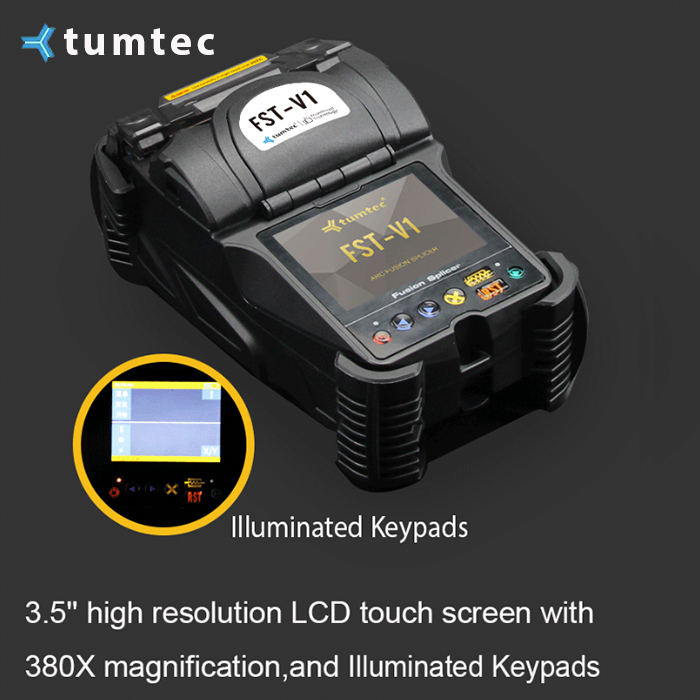

- With a 3.5-inch high-resolution LCD touch screen, 380X magnification effect, and better observation of the optical fiber fusion effect.

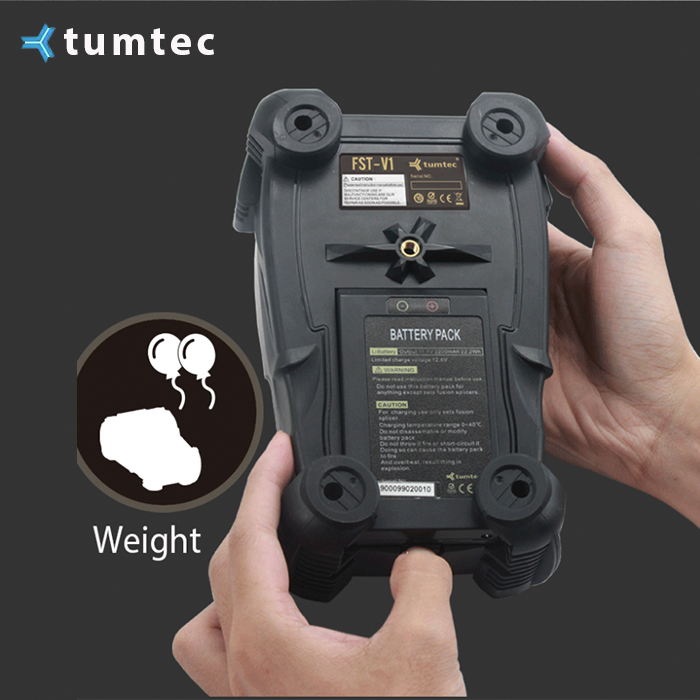

- The machine is equipped with soft rubber around the body, which can prevent shock and fall.
- The machine is also dustproof, waterproof,and high temperature

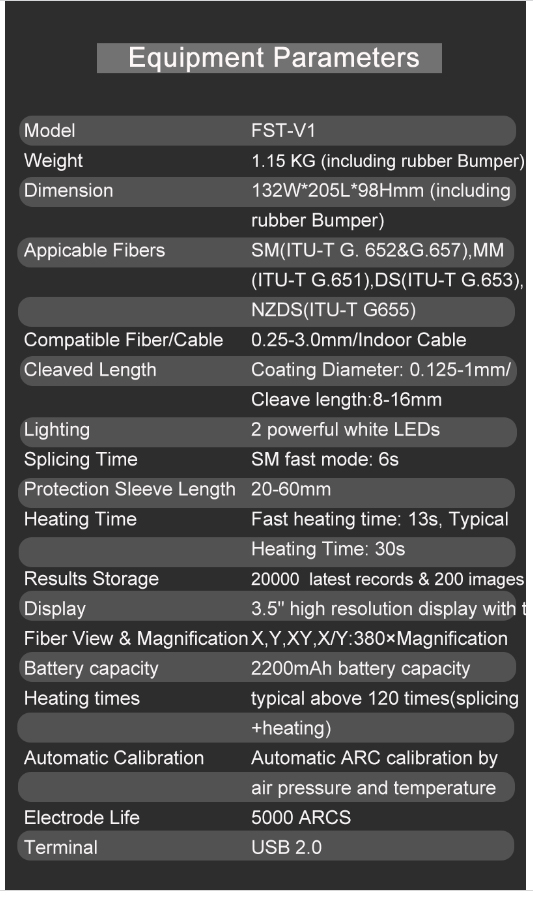

| Model |
FST-V1 |
| Applicable Fibers |
SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655) |
| Compatible Fiber/Cable |
0.25-3.0mm/Indoor Cable |
| Cleaved Length |
Coating Diameter: 0.125-1mm/Cleave length:8-16mm |
| Splicing Mode |
Preset 41 splicing modes, storable 100 modes |
| Typical Splice Loss |
SM: 0.03dB/MM: 0.02dB/DS: 0.05dB/NZDS: 0.05dB/G657: 0.03dB (ITU-T Standard) |
| Return Loss |
≥60db |
| Lighting |

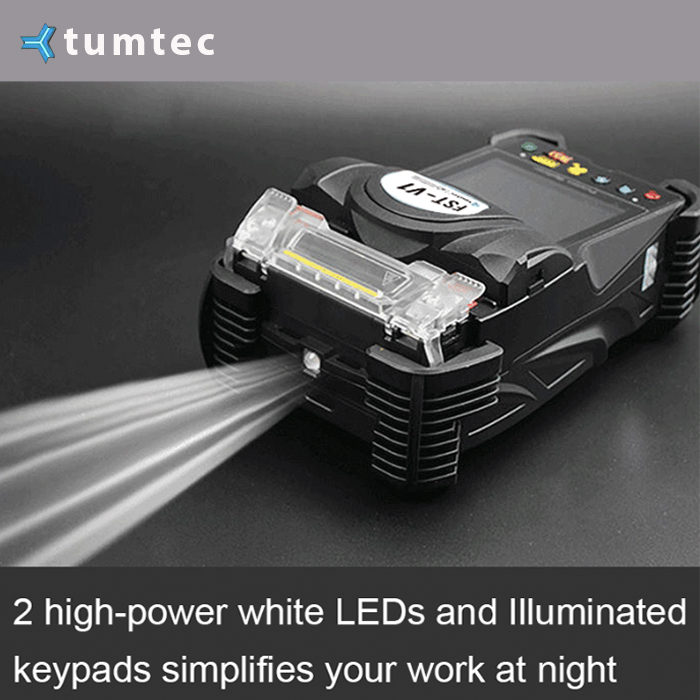

2 powerful white LEDs |
| Splicing Time |
SM fast mode: 6s |
| Estimated Splice Loss |
yes |
| Protection Sleeve Length |
20-60mm |
| Heating tank |
Preset 5 kinds of thermal heating tube: 20/30/40/50/60mm, Max 100 modes |
| Heating Time |
Fast heating time: 13s, Typical Heating Time: 30s |
| Results Storage |
20000 latest records & 200 images |
| Tension Test |
1.5-2.0N |
| Display |
3.5″ high-resolution display with touchscreen |
| Fiber View & Magnification |
X,Y,XY,X/Y:380×Magnification |
| Power Supply |
AC Input 100-240V,DC Input 12-15V |
| Battery capacity |
2200mAh battery capacity |
| Heating times |
typical above 120 times(splicing+heating) |
| Operating Methods |
Button/Touch Screen |
| Automatic Calibration |
Automatic ARC calibration by air pressure and temperature |
| Electrode Life |
Automatic ARC calibration by air pressure and temperature |
| Terminal |
USB 2.0 |
| Weight |
1.15 KG (including rubber Bumper) |
| Dimension |
132W*205L*98Hmm (including rubber Bumper) |
| Operating Condition |
Operating altitude 0-5000m above sea level, 0-95% relative humiditym-10~50?? max wind 15m/s |
| Storage Condition |
0~95% relative humidity, -40~80?; battery storage: -20~30? |
