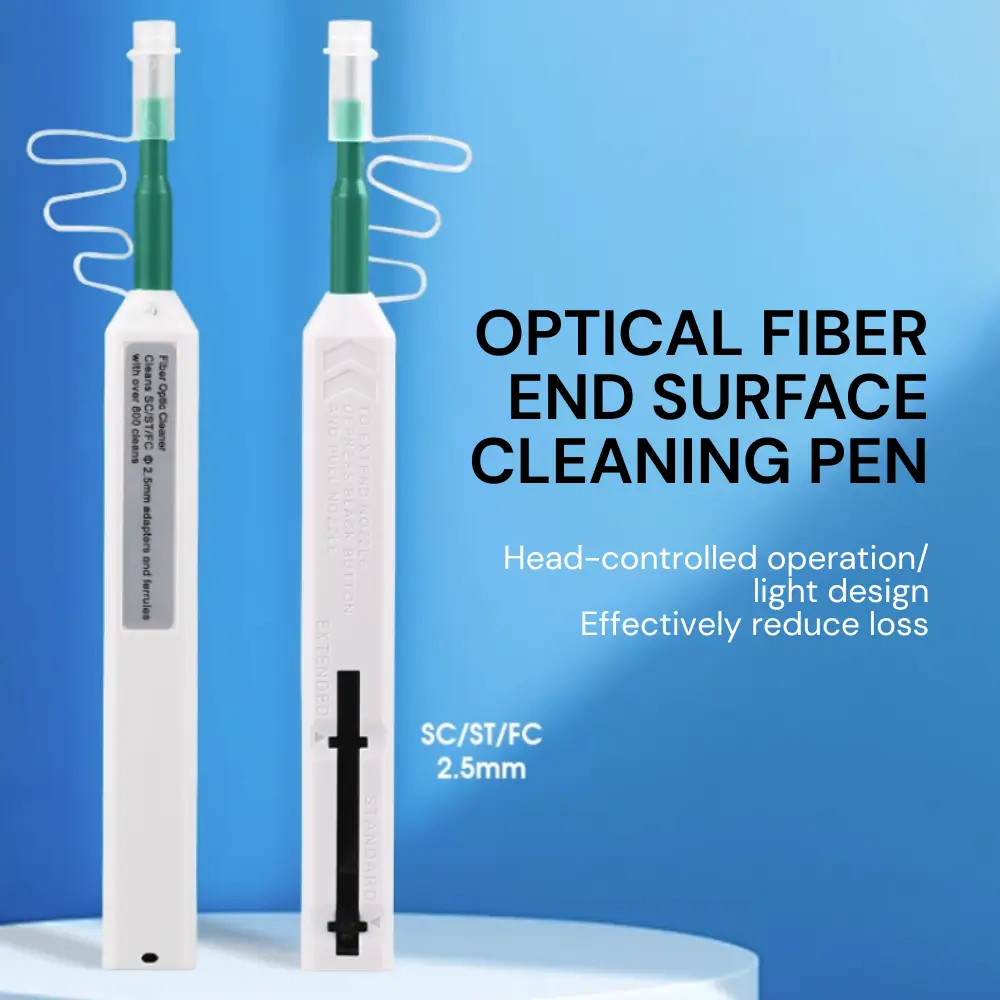

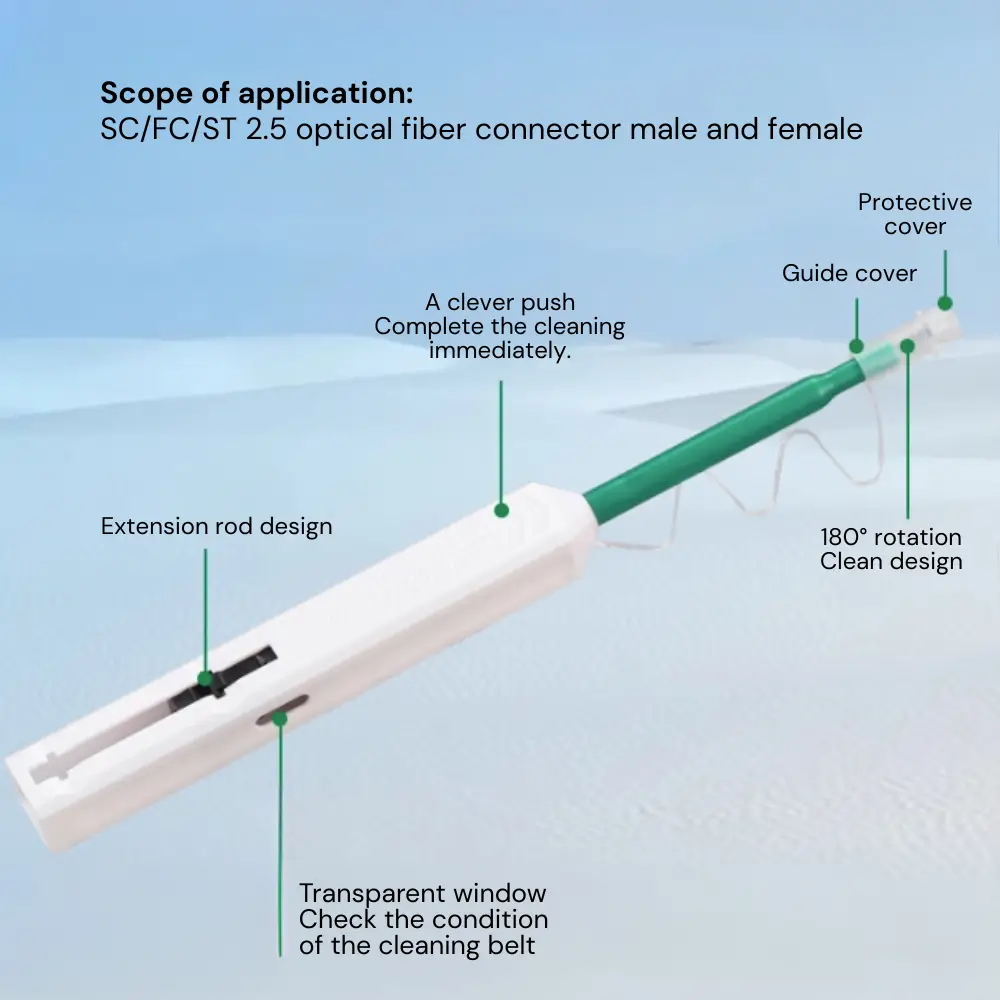

The Fiber Optic Cleaning Pen is a professional one-click cleaning tool designed for fast and reliable connector maintenance.It effectively removes dust, oil, and microscopic debris from ferrule end faces without scratching the surface.Engineered for LC, SC, FC, ST, and MU connectors, it is ideal for FTTH, FTTx, and telecom environments.The push-type mechanism allows instant cleaning with a simple press action.Its anti-static ABS body prevents contamination and ensures safe operation in sensitive optical systems.Compact and lightweight, it is perfect for field engineers and daily installation work.The precision cleaning tape provides consistent performance for over 800 cleaning cycles.An extendable tip design easily reaches recessed or adapter-mounted connectors.The tool helps reduce insertion loss and improves network signal reliability.A dependable and cost-effective solution for fiber installation, testing, and maintenance.
Specifications
-
Model: Fiber Clean Pen
-
Type: One-Click Fiber Optic Cleaner
-
Cleaning Capacity: 800+ cleanings per unit
-
Supported Ferrule Size: 1.25 mm (LC) / 2.5 mm (SC/FC/ST)
-

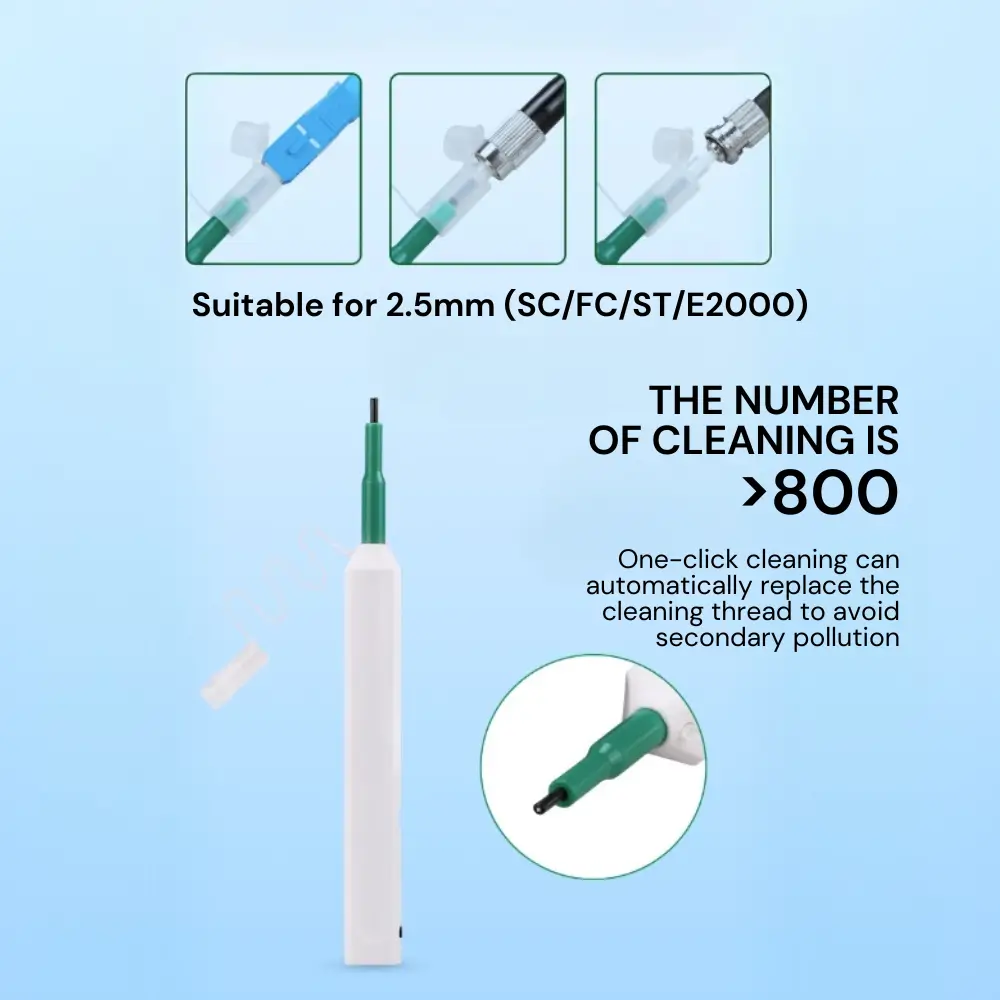

Compatible Connectors: SC / LC / FC / ST / MU
-
Material: Anti-static ABS housing
-
Sleeve Material: Zirconia
-
Size: 200 × 25 × 25 mm
-
Weight: 55 g
-
Color: White / Blue
-
Insertion Loss after cleaning: ≤ 0.2 dB
-
Operating Temperature: –40°C to +75°C
-
Application: FTTx, telecom, data center, server, router maintenance
-
Warranty: 5 Years
-
Certifications: CE, ISO, RoHS, GS
-

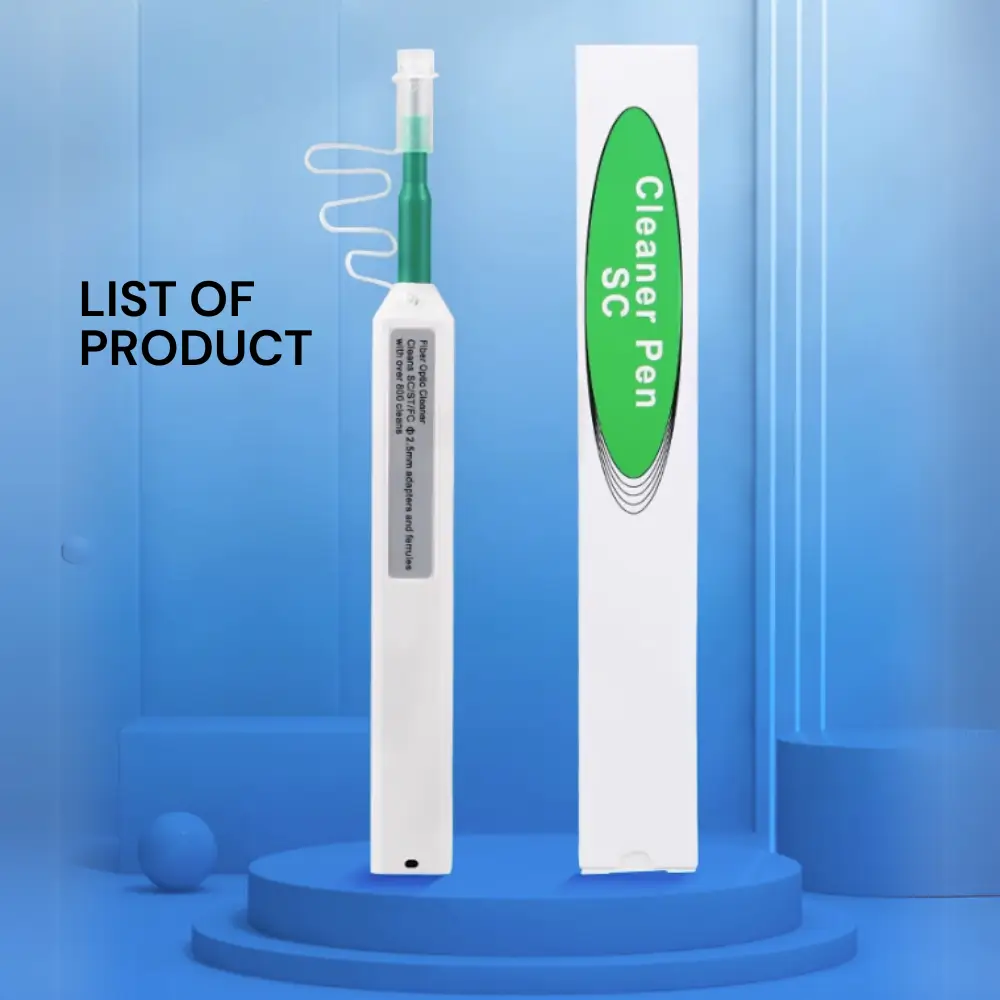

Package: 1 pc / box
-
Origin: Guangdong, China
-
Production Capacity: 50,000 pcs/month
-
HS Code: 9603509190
Key Features
-
One-push automatic cleaning mechanism
-

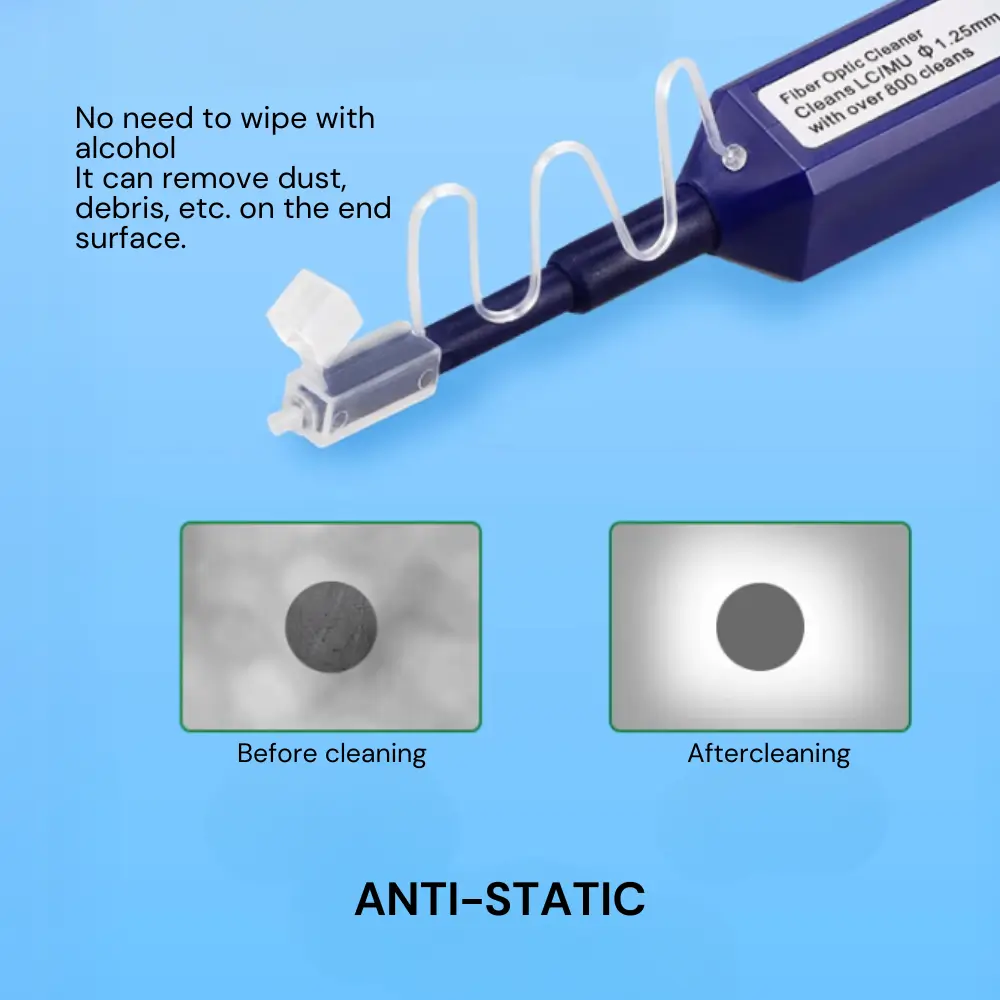

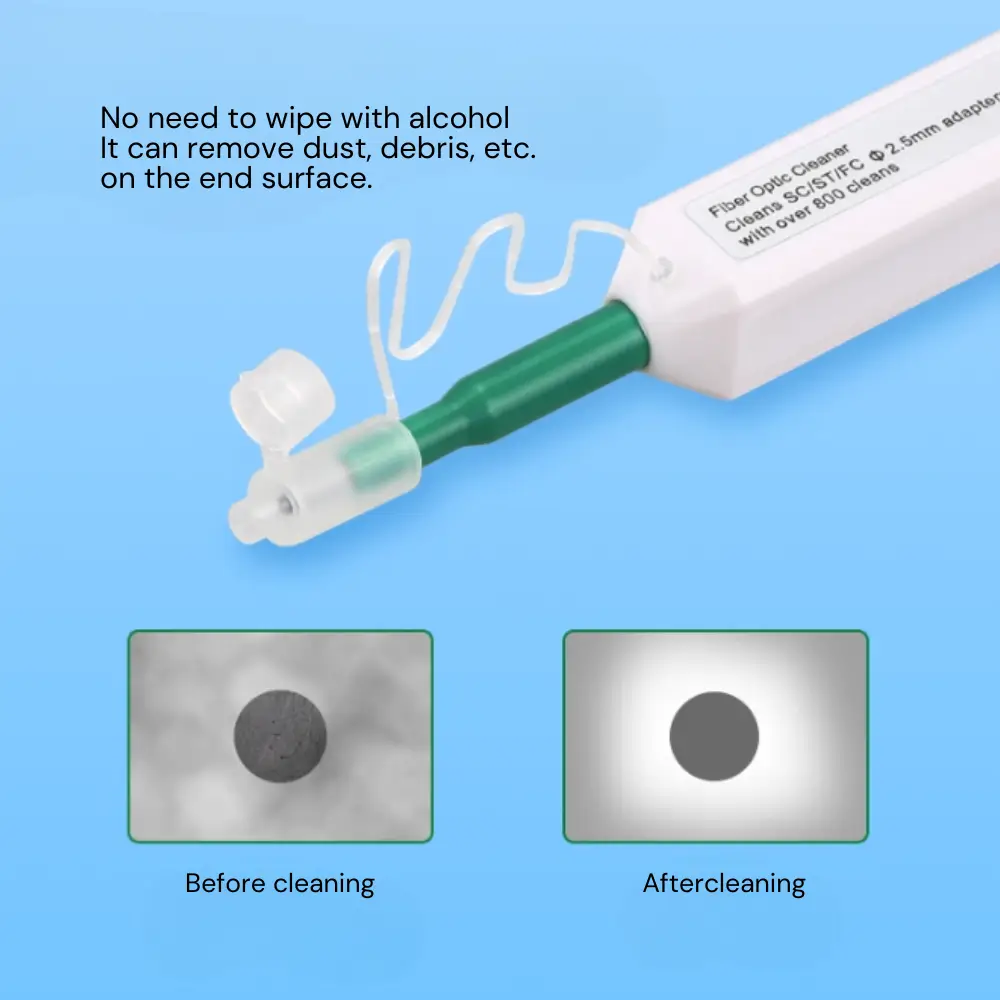

Dry cleaning technology (no alcohol required)
-
Anti-static and dust-free design
-
Audible “click” confirmation when engaged
-

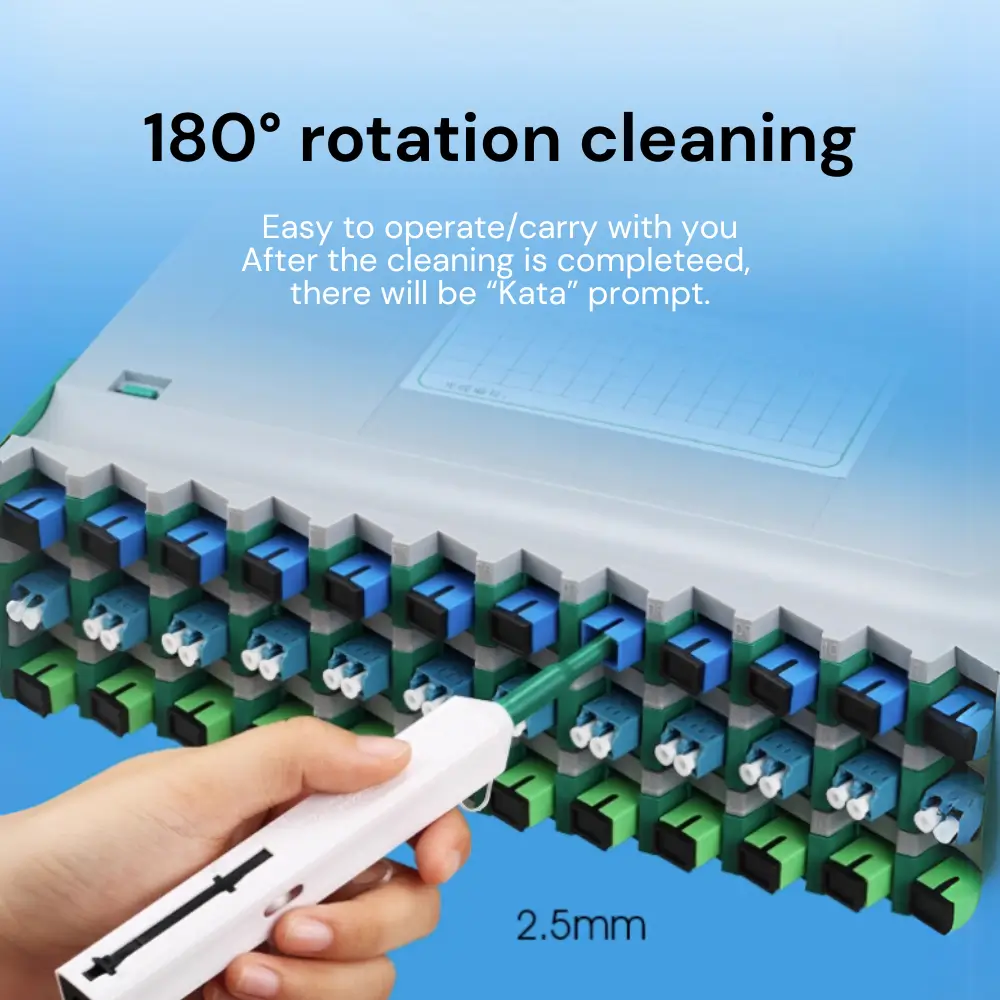

180° rotation for full ferrule sweep
-
Disposable, maintenance-free cartridge
-
Safe for polished fiber end faces
-
Ideal for field and lab use
Applications
-
FTTH / FTTx installation
-
Fiber patch panel maintenance
-
Data center cabling
-
Telecom network deployment
-
Server & router fiber connections
-
Pre-testing before splicing or OTDR measurement
