Overview

1xRS232/485/422 to 4 Fiber Ports HUB Single-mode 20km SC

-Support 1xRS232/485/422 Serial port, 4x100M fiber ports

-Used in conjunction with CSF201to build star network

-RS485/422 port supports 600W/ms anti-lightning and 1.5kV anti-static protection

-RS232 serial port protection circuitsupport hot plug

-The power and dataLEDs can indicate the operating status

-Industrial-grade design ensure the long-term reliability of the product

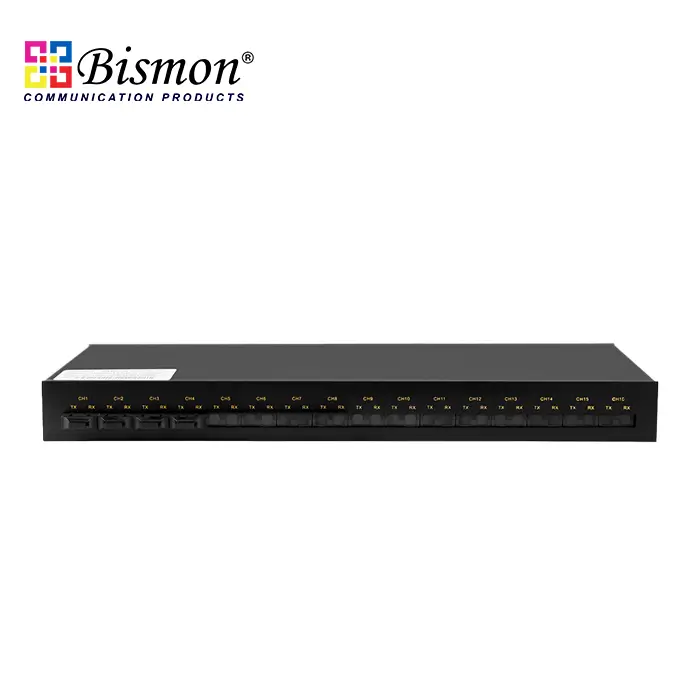

CSF516 series 4-port industrial star fiber network HUB is used to build a star fiber optic network. It achieves transparent transmission of RS232/485/422 on fiber star network, fully adaptive, without changing the user protocol. It solves the contradiction of long communication distance and high communication speed, and many and scattered nodes. It also solves the problems of electromagnetic interference, ground ring interference and lightning damage, which greatly improves the reliability, security and confidentiality of data communication.

CSF516 series adopts a wide range of AC/DC power input and 1U rack-mounted installation; in terms of core components, the product adopts high-quality design solutions, with a transmission rate of 300bps~115200bps, which can realize communication between main control computers, main control computers and microcontrollers or peripherals. It forms a point-to-point and point-to-multipoint remote multi-machine communication network to realize multi-machine response communication. The products are widely used in industrial automation control systems, all-in-one cards, access control systems, parking systems, self-service banking systems, bus toll collection systems, etc. Canteen food sales systems, company employee attendance management systems, highway toll station systems, etc.
