Gigabit 14-port L2+ managed industrial PoE switch ONV
Part number : ONV-IPS33148PFM-BM
Brand : ONV
Price : 25,200.00 Baht
Delivery time : 30 Day
Minimum order quantity : 1 pcs
Size : 165*148*54mm
Warranty : 3 Year
OVERVIEW
The ONV-IPS33148PFM-BM is a Gigabit managed industrial PoE switch independently developed by ONV. It has 4*100/1000Base-X SFP fiber ports and 10*10/100/1000Base-T adaptive RJ45 ports. Port 1-8 can support IEEE 802.3 af/at PoE standard and the single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize power-compliant devices that meet the standard and supply power through the network cable. It can supply power to PoE terminal equipment such as wireless AP, IP camera, VoIP, and industrial sensors through the network cable, and meet the network environment that needs a high-density PoE power supply. It is suitable for intelligent transportation, rail transit, power industry, mining, petroleum, and industrial scenes such as shipping, metallurgy, and green energy construction forming a cost-effective, stable, and reliable communication network.
The ONV-IPS33148PFM-BM has L2+ network management function, supports IPV4/ IPV6 management, static route forwarding, security protection mechanism, ACL/QoS policy, and VLAN, and is easy to manage and maintain. Support multiple network redundancy protocols STP/RSTP/MSTP(<50ms) and (ITU-T G.8032) ERPS(<20ms) to improve link backup and network reliability. When a one-way network fails, communication can be quickly restored to ensure important uninterrupted communication for applications. According to the actual application requirements, you can configure multiple application services such as PoE power management, port traffic control, VLAN division, and SNMP through the Web network management mode.
FEATURE
Gigabit access
- Support non-blocking wire-speed forwarding.
- Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
- Support Gigabit RJ45 port and SFP fiber port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Smart PoE power supply
- PoE network management, realize PoE port power allocation, priority setting, port power status viewing, time scheduling, etc.
- Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.
- PoE port support priority. When the remaining power is insufficient, priority is given to ensuring the power supply of high-priority ports to avoid equipment overload.
- 8*10/100/1000Base-T RJ45 ports support PoE power, meeting the PoE power requirements of security monitoring, industrial automation systems, wireless coverage and other scenarios.
Strong business processing ability
- Support ERPS ring network and STP/RSTP/MSTP to eliminate layer 2 loops and realize link backup.
- Support IEEE802.1Q VLAN, Users can flexibly divide VLAN, Voice VLAN, and QinQ configuration according to their needs.
- Support static and dynamic aggregation to effectively increase link bandwidth, realize load balancing, link backup, and improve link reliability.
- Support QoS, port-based, 802.1P-based and DSCP-based three priority modes and four queue scheduling algorithms: Equ, SP, WRR, and SP+WRR.
- Support ACL to filter data packets by configuring matching rule processing operations and time permissions, and provide flexible security access control policies.
- Support IGMP V1/V2/V3 multicast protocol, IGMP Snooping meets multi-terminal high-definition video surveillance and video conference access requirements.
Security
- Port isolation and storm control.
- IP+MAC+port+VLAN quadruple flexible combination binding function.
- 802.1X authentication provides authentication functions for LAN computers and controls the authorization status of controlled ports according to the authentication results.
Stable and reliable
- CCC, CE, FCC, RoHS.
- The user-friendly panel can show the device status through the LED indicator of PWR, SYS, Link, L/A, and PoE.
- Low power consumption, aluminum alloy housing, and excellent heat dissipation to ensure stable operation of the switch.
Easy O&M management
- CPU monitoring, memory monitoring, Ping detection, and cable detection.
- HTTPS, SSLV3, SSH V1/V2, and other encryption methods make management more secure.
- RMON, system logs, and port traffic statistics facilitate network optimization and transformation.
- LLDP facilitates the network management system to query and determine the communication status of the link.
- Web network management, CLI (Console, Telnet), SNMP (V1/V2/V3), Telnet and other diversified management and maintenance methods.

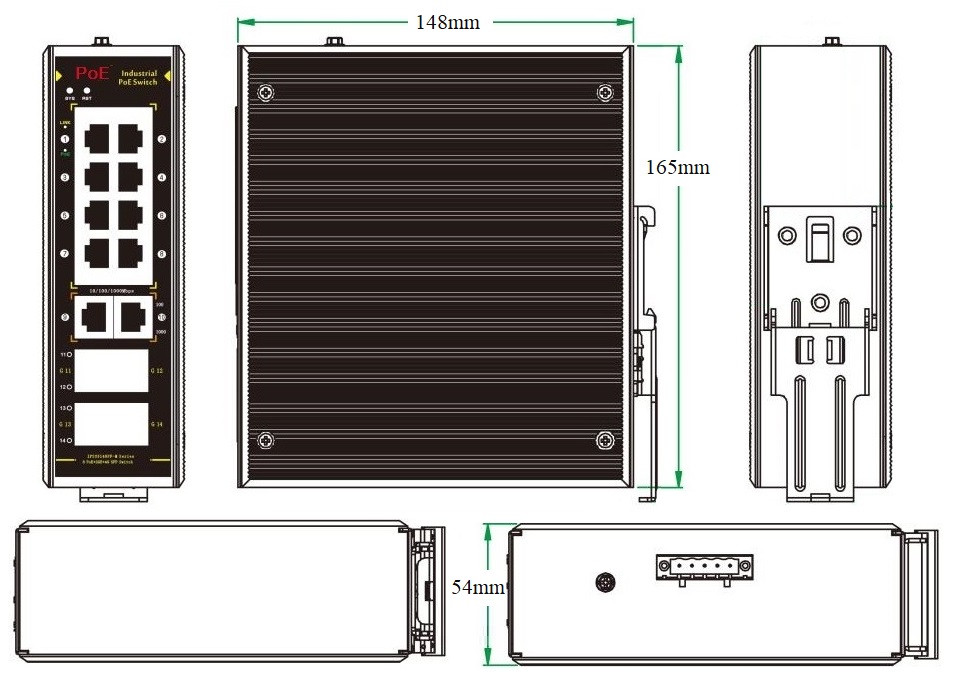

DIMENSION
