Technical Details

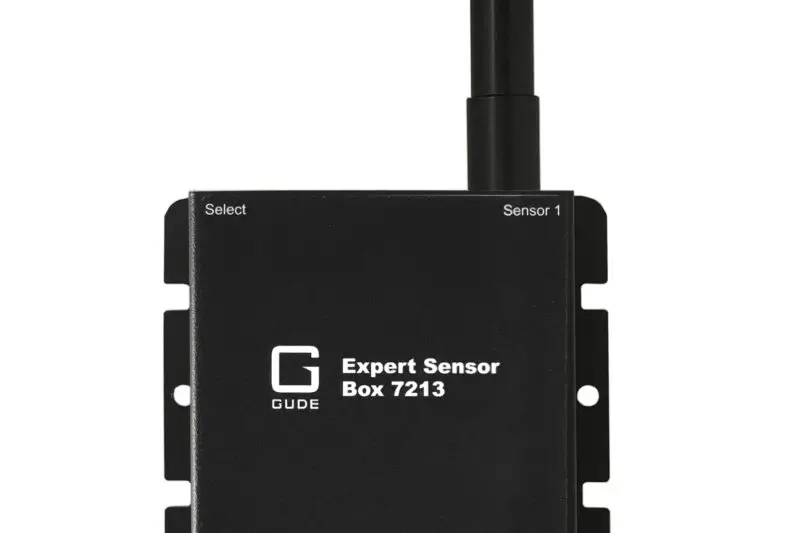

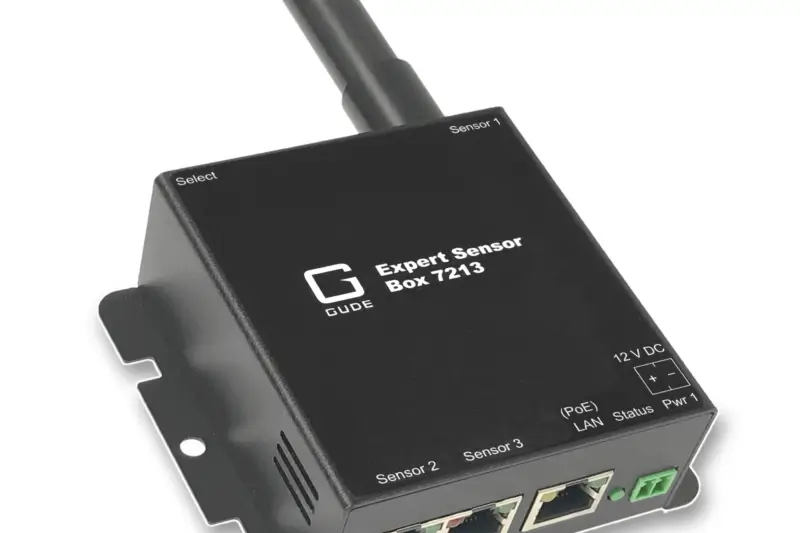

1. Powdered sheet steel case, LxWxH: 100 x 34 x 90 mm (incl. brackets, excl. sensor pipe)
2. Plastic sensor pipe, Length: 94 mm, Diameter: 15 mm
3. Weight: approx. 300 g
4. Operating temperature: 0 – 50 °C
5. Operating temperature sensor pipe: -20 – 80 °C
6. Storage temperature: -20 – 70 °C
7. Relative humidity: 0-95% (non-condensing)
8. Temperature measuring range: -20 °C to +80 °C at ±2 °C (maximum) and ±1 °C (typical)
9. Humidity measuring range: 0-100% at ±3% (typical) and 10-80% at ±2% (typical)
10. Air pressure measuring range 300-1100 hPa: -20 °C to 0 °C at ±1.7 hPa (typical) and 0 °C to +65 °C at ±1 hPa (typical)

Electrical Connections

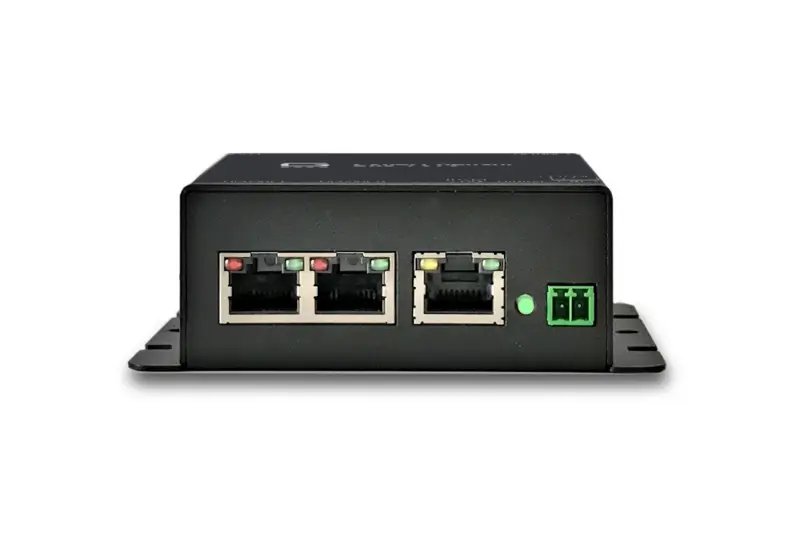

1. 1 connector for external power supply (industrial clamp, 2-fold)
2. 2 sensor connectors RJ45 for optional sensors for temperature, humidity, air pressure sensor
3. 1 Ethernet connector RJ45 (10/100 Mbit/s)
4. Power supply also via Power-over-Ethernet (7213-11, 7213-12, 7213-13)

Security

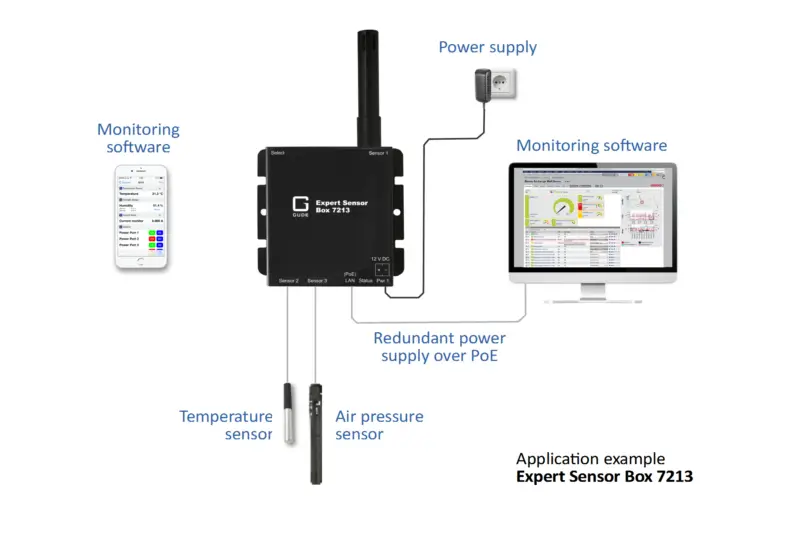

1. 2 connectors for combined plug-&-play sensors (temperature, humidity and air pressure) to prevent frequently occurring physical hazards such as overheating and increased humidity or air pressure
2. Additional power supply via Power-over-Ethernet (PoE) possible
3. Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
4. Encrypted e-mails (SSL, STARTTLS)
5. Access protection by IP access control
6. Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
7. Password protected access

Operation

1. Firmware update via Ethernet during operation (no restart required)
2. Simple and flexible configuration via web browser, Windows or Linux program
3. Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
4. Rapid commissioning thanks to free and reliable drivers from our technology partners
5. Mounting on DIN rail thanks to mounting clip
6. Robust sheet steel housing with versatile mounting options
