LC/UPC-LC/UPC Patch Armored Fiber optic LSZH Jacket 3.0MM Single-mode 10M Simplex
Part number : 9SLCLCPS100-AR
Brand : BISMON
Price : 0.00 Baht

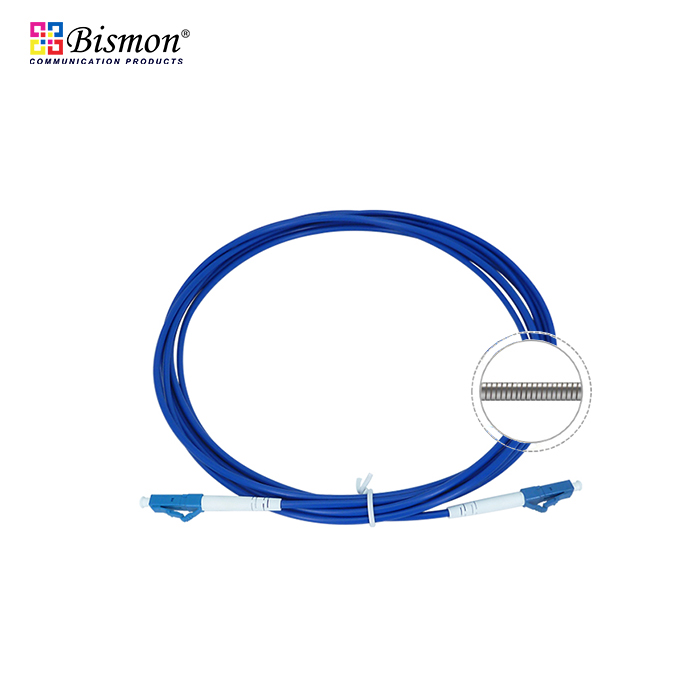

LC/UPC-LC/UPC Patch Armored Fiber optic LSZH Jacket 3.0MM Single-mode 10M Simplex, Blue color

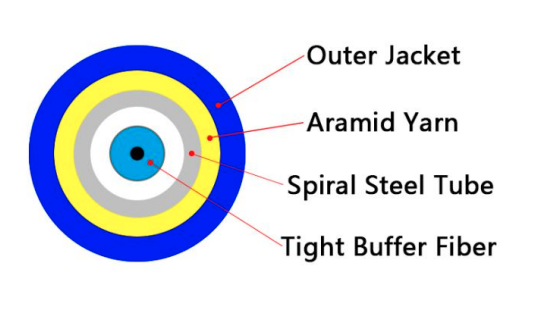

Indoor armored cable is a new type of rodent-proof cable. The optical cable has the characteristics of tensile resistance, compression resistance, and bending resistance. Armored fiber patch cords can be laid in all kinds of harsh environments. It has stainless steel tube to protect optical fibers and provides better security for the whole system.
Features
Flexible stainless steel tube to protect optical fibers from damage
Good performance of torsion, tensile strength, pressure, and anti-rodent
Various connectors are available complying with international standards, such as FC/SC/ST/LC, etc
Applications
Fiber optic sensing / Telecommunication networks
CATV / LAN & WAN / Test Equipment / National defense
FTTX, FTTH(Fiber to the Home) / Oil & Ga,Broadcast & Industrial
Specification
|
Item |
Singlemode |
Multimode |
|||
|
Outer diameter |
3.0mm |
3.0mm |
|||
|
Standard color |
Blue |
Gray or Aqua |
|||
|
Insertion Loss |
≤0.3dB |
||||
|
Return Loss |
SM/UPC≥55dB, SM/APC≥60dB, MM≥35dB |
||||
|
Operating temperature |
-20??+70? |
||||
|
Storage temperature |
-20??+70? |
||||
|
Tensile strength |
Short term |
900N |
|||
|
Long term |
450N |
||||
|
Compression resistant strength |
≥3000N/100MM |
||||
|
General attenuation |
1310nm |
≤0.4dB/km |
850nm |
≤3.0dB/km |
|
|
1550nm |
≤0.3dB/km |
1300nm |
≤1.0dB/km |
||
|
Minimal Bending radius |
≥20D |
≥20D |
|||
|
Printing contents |
OPTICAL CABLE SM(G657A) 3.0mm 2C PVC XXXXM |
OPTICAL CABLE MM(62.5/125) 3.0mm 2C PVC XXXXM |
|||
