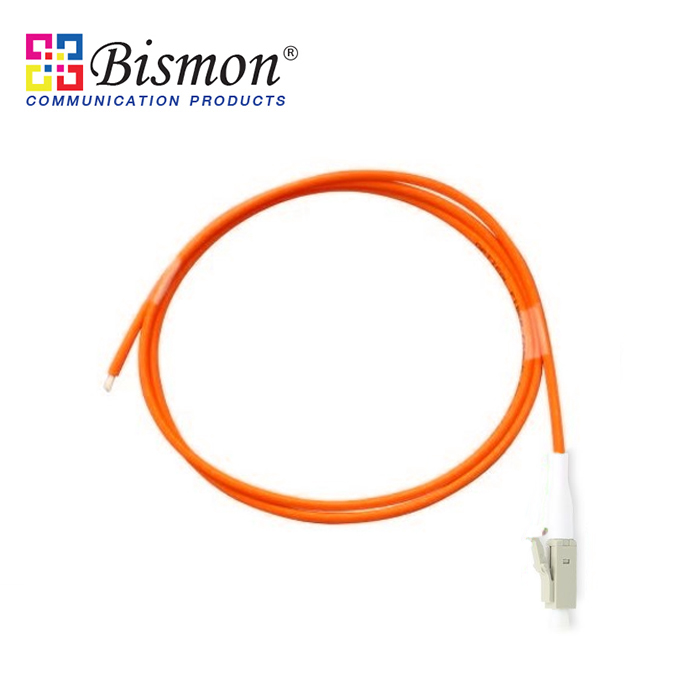

LC/UPC Pigtail Fiber simplex 1.5M, Multi-mode 50/125um(OM2)
Part number : 5MLCPP015
Brand : Bismon: Fiber Pigtail
Price : 72.00 Baht
Credit Card:
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
OVERVIEW
LC/UPC Pigtail Fiber optic simplex 1.5M Multi-mode 50/125um(OM2)
| Features |
| : PC,UPC Polishing |
| : High return loss,Low insertion loss |
| : High reliability,High temperature stability |
| : Compliant with Telecordia GR-326-Core, TIA/EIA and IEC |
| : Insert draw connection (simple,easy) |
| : Comply to IEC standard |
| : Multi-mode(OM2) attenuation (dB)/km: 3.5@850nm/1.5@1310nm |
| : Bandwidth OFL(MHz-km): 500@850/500@1310nm |
| Specifications | |
| Item | Multi-Mode 50/125um (OM2) conforms to ITU-T G651 |
| Inserton loss(dB) | ≤0.25 |
| Temperature(?) | -40~+80 |
| Repeatability(dB) | ≤0.1 |
| Durability | ≥ 1,000 Matings |
| Return loss(dB) | PC≥45,UPC≥50,APC≥65 |
| Cable diameter(mm) | Ø3.0, Ø2.0, Ø0.9 |
| Tensile Strength(N) | ≥90N(OD:3.0), ≥ 70N (OD:2.0mm) |
| Bend radius min. | 20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm |
| Cable design | PVC Jacket or LSZH (Low smoke zero halogen ) material, Orange color |
