OVERVIEW

A fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the waveform itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver cannot accept the signal generated from a high-power light source.

Features

 • Metal Ion Doped Fiber

 • High-power Light Source Durability

 • Wavelength Independence / Precise Control of Attenuation Range

 • High Attenuation for Connector & In-line Type Attenuators

 • Attenuation Levels Ranging from 1dB to 30dB

 • Standard and Premium Tolerances, plus Custom Configurations.

 • 1310nm, 1550nm, 1250-1625nm, and 1350/1550nm Dual Wave Lengths

Application

 • Fiber optical CATV

 • Fiber optical telecommunication system

 • Fiber optical sensor

 • FTTx

• Idea for WDM Application

• Dynamic Power Leveling in Optical

• Dynamic Power Balancing in DWDM Systems

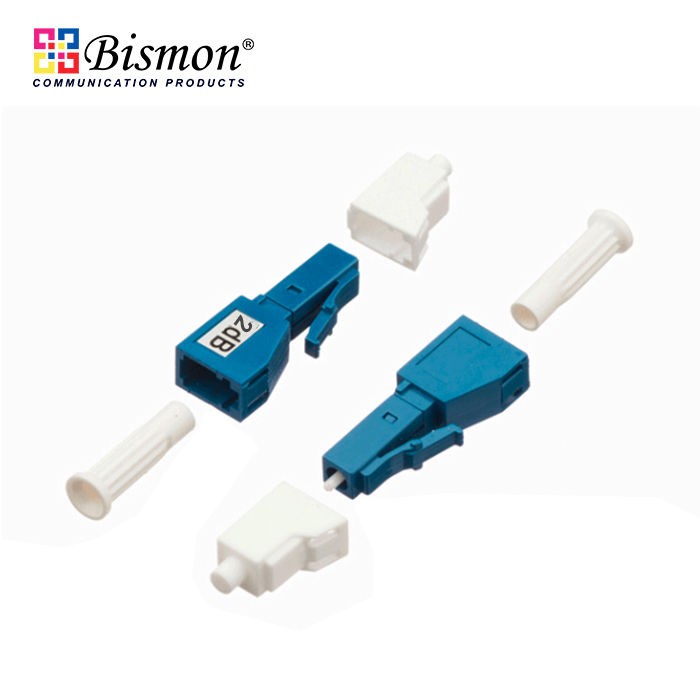

Specification

Connector:       LC/UPC male-LC Female

Mode:               Single-Mode

Wavelength:    1310/1550nm

Attenuation:    2dB

Return Loss UPC type:    55dB

Polarization Dependent Loss:    0.2dB

Durability:    500 Cycles

Operating Temperature:   -40 C - 75 C

Humidity:    75 C 95% RH
