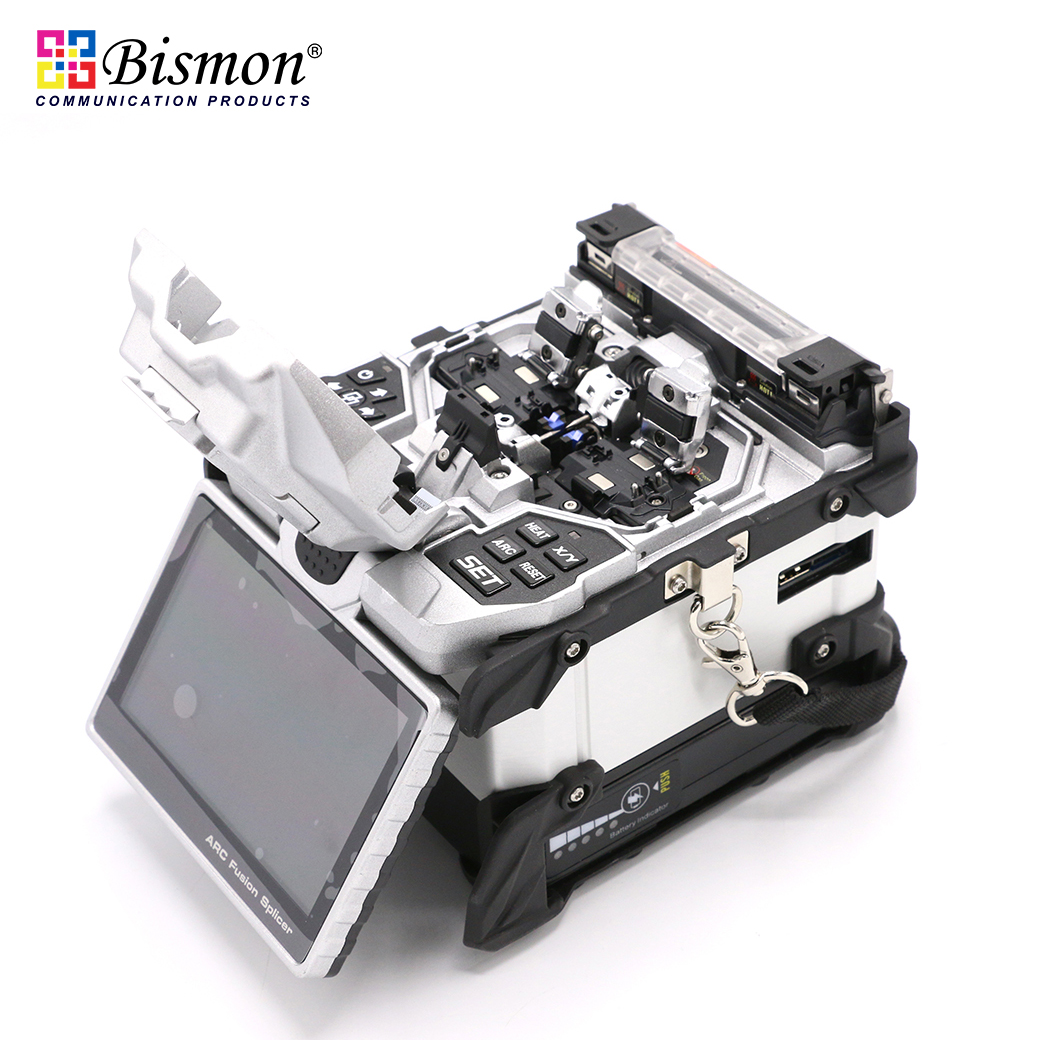

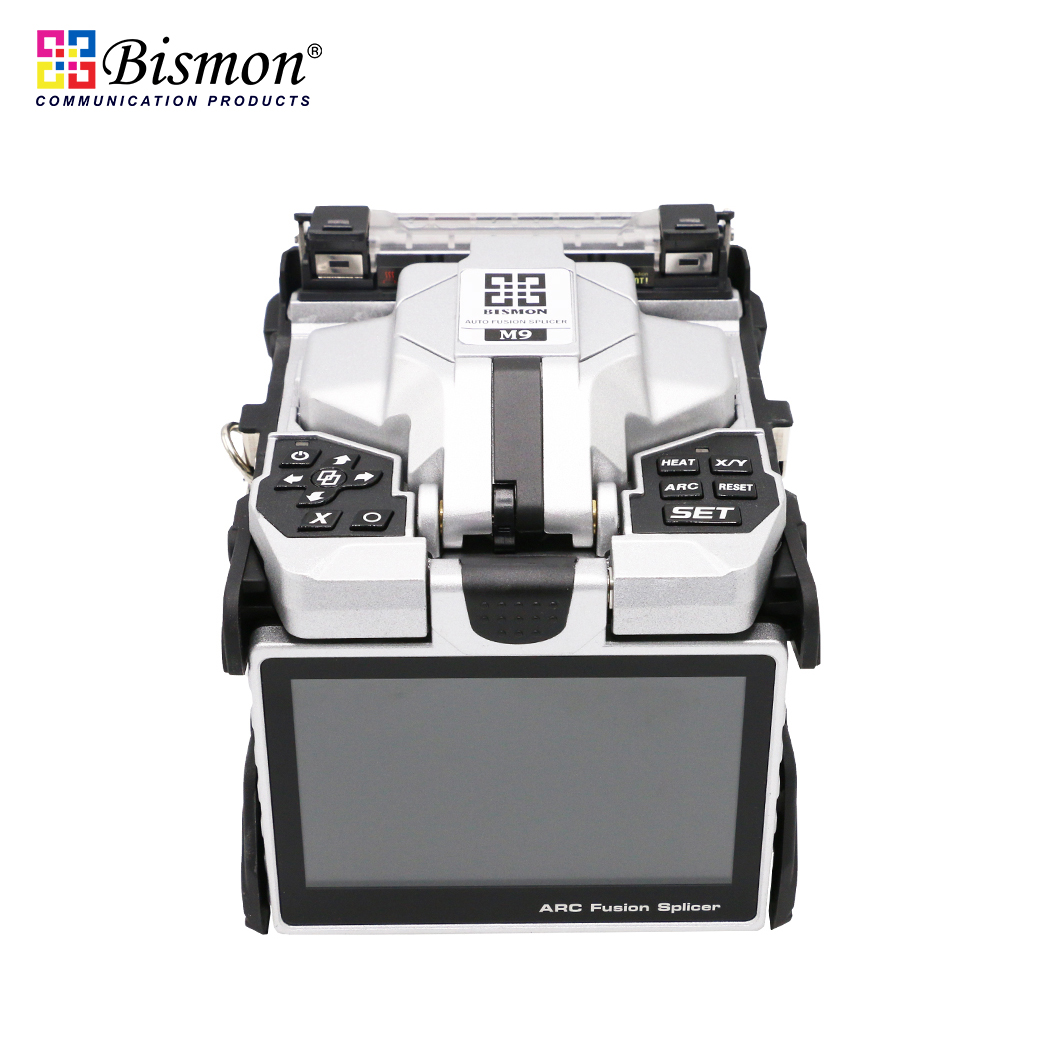

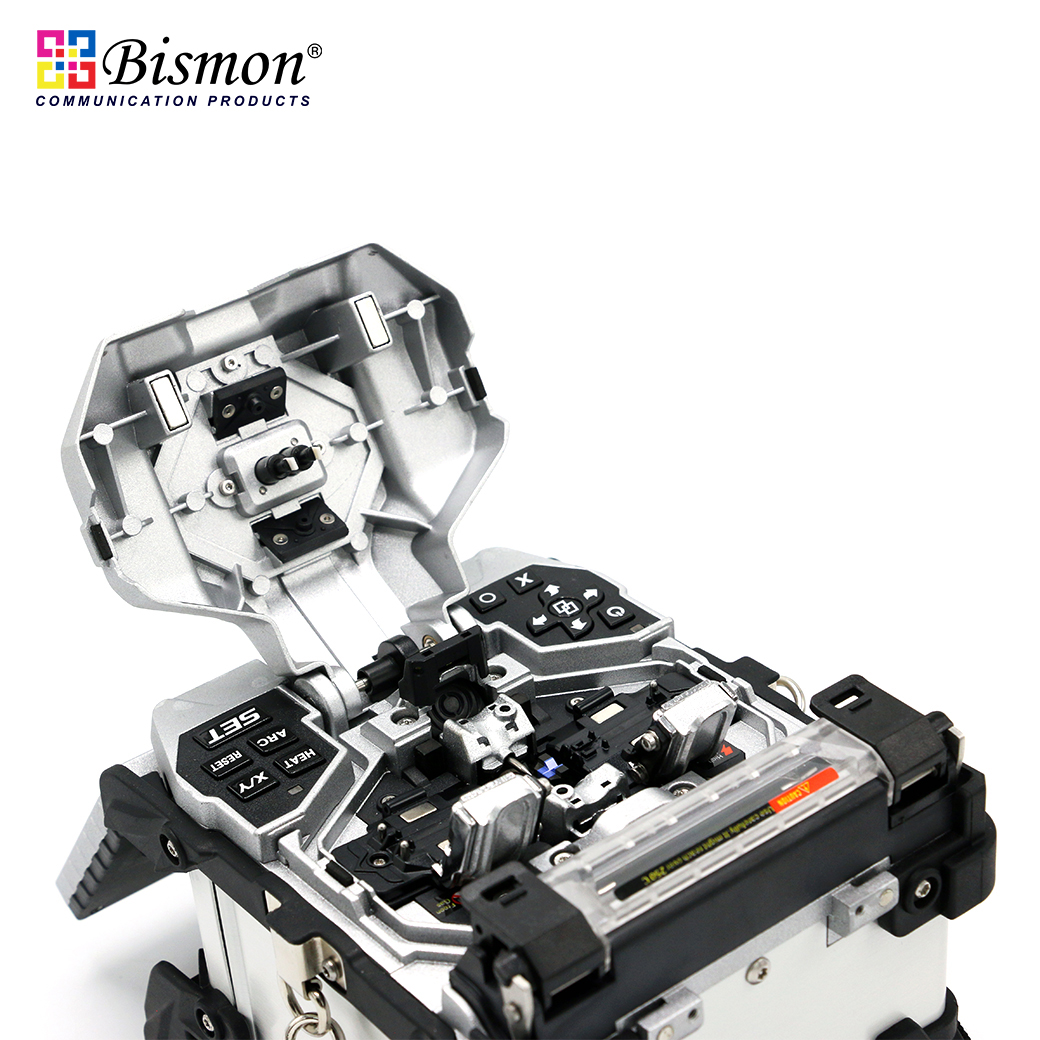

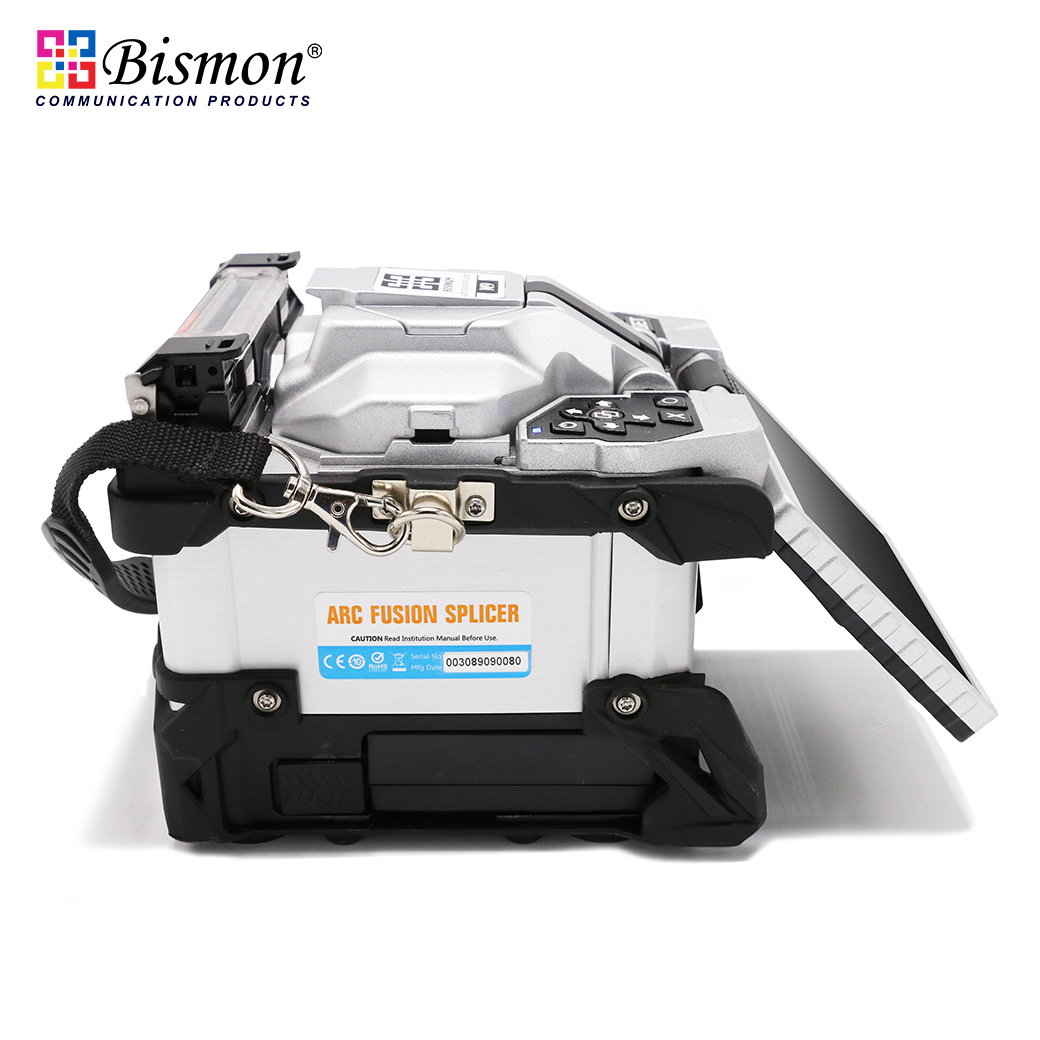

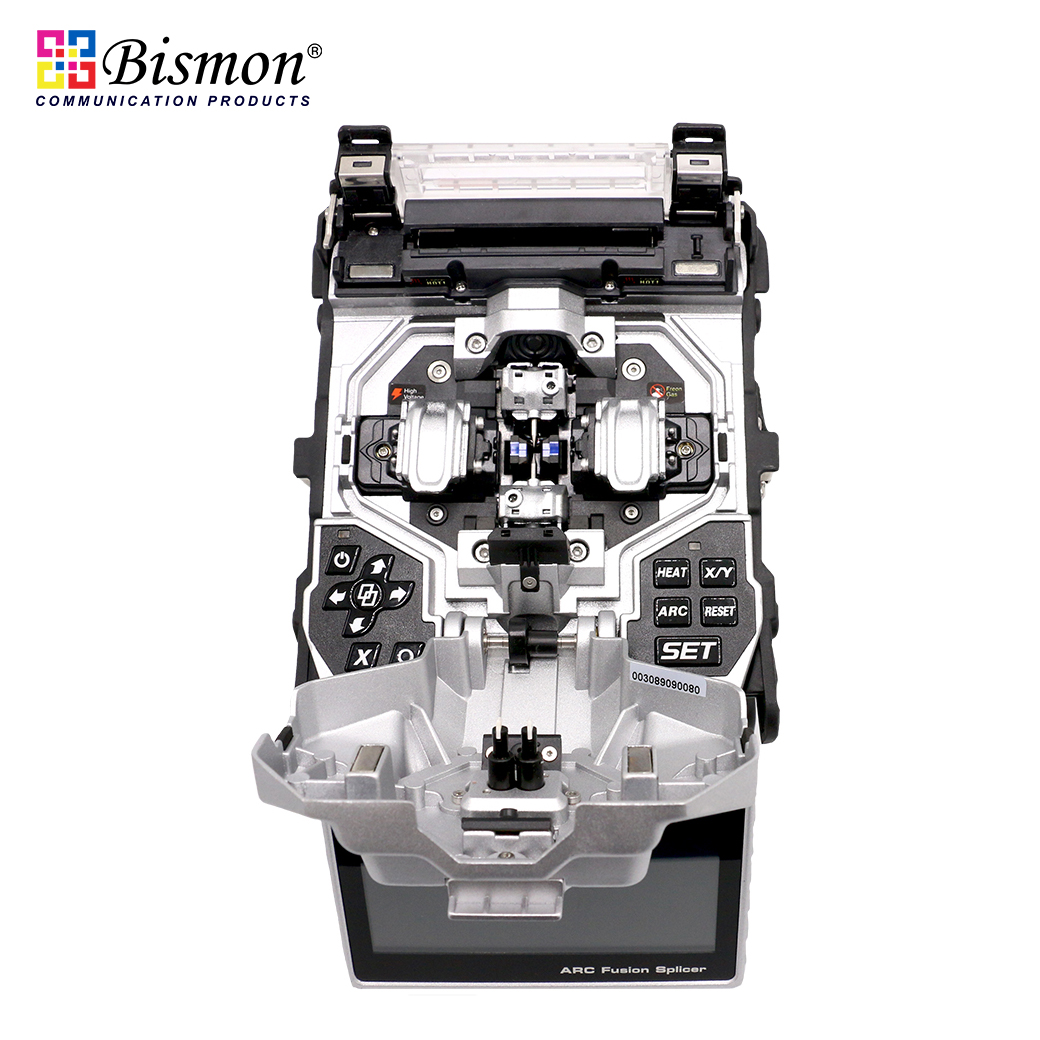

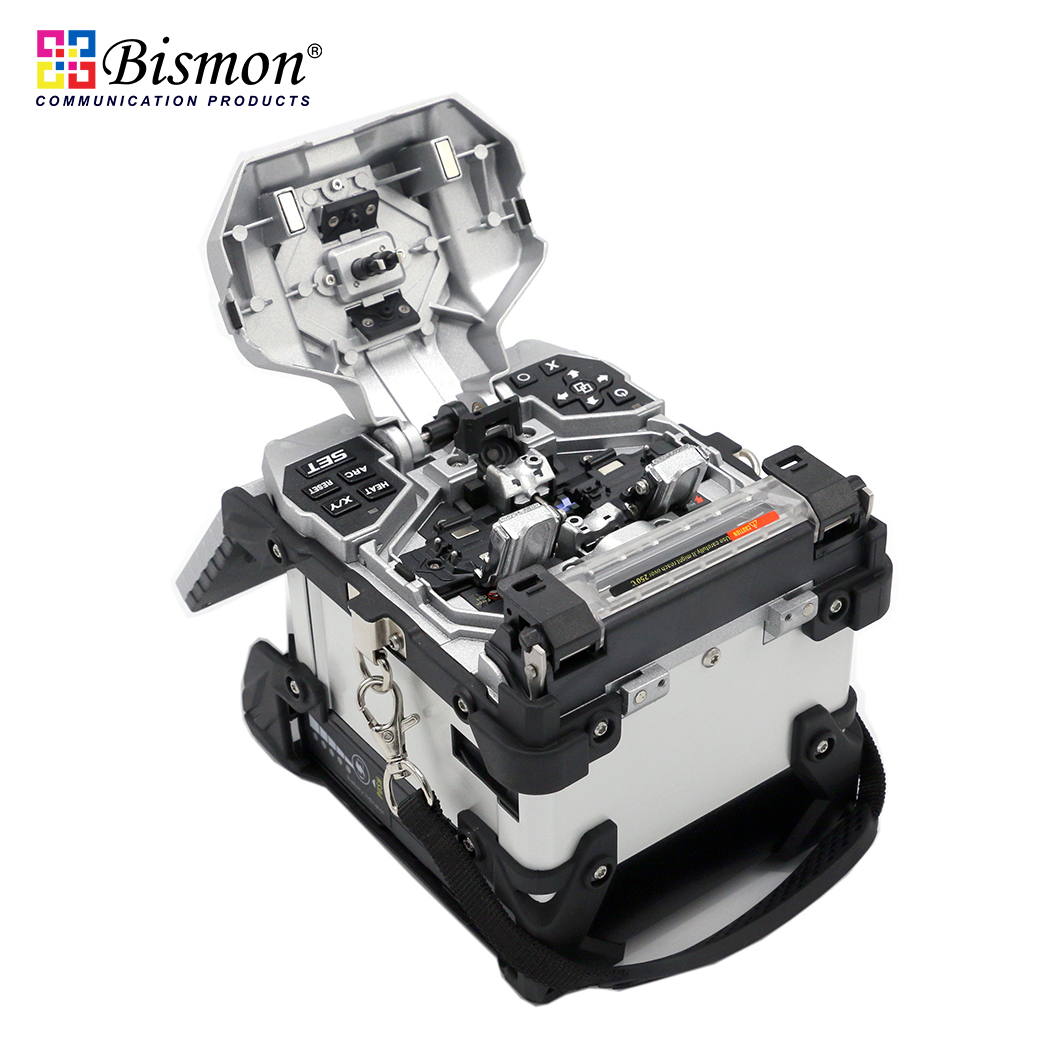

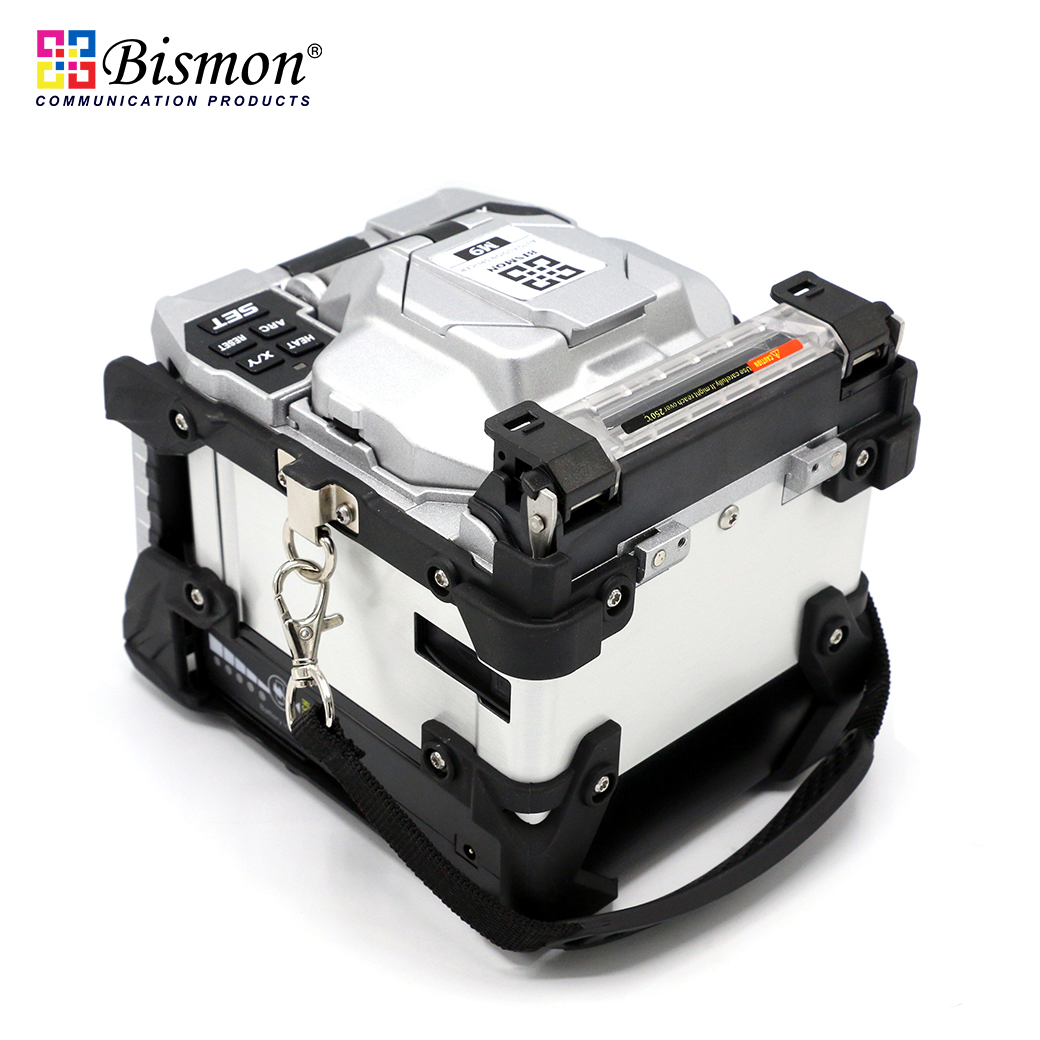

M9-Auto Fusion Splicer Core Alignment 6 Motor
M9-Auto Fusion Splicer Core Alignment 6 Motor เป็นอุปกรณ์เชื่อมต่อใยแก้วนำแสงความเที่ยงตรงสูงที่ออกแบบมาสำหรับงานระดับแบ็กโบนโครงข่าย (Backbone) ระยะไกลกว่า 50 กิโลเมตร โดยใช้เทคโนโลยี 6 มอเตอร์ในการจัดแนวแกนกลาง (Core Alignment) เพื่อให้ได้ความแม่นยำและลดการสูญเสียแสงในการเชื่อมต่อให้ต่ำที่สุด มีความสามารถในการจัดตำแหน่งแบบ V-groove ที่แม่นยำ โหมดเชื่อมต่อแบบอัตโนมัติ และมีสมบัติทนทุกสภา
Part number : M9
Brand : BISMON
Price : 126,666.67 Baht / set
Delivery time : 15 Day
Minimum order quantity : 1
Warranty : 2 years
(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)
High precise 6 motors Multifunction Backbone fusion splicer
Fusion Splicer this model used for maintenance and project for backbone project, like over 50km. It adopts the precision core to core alignment method to ensure the precision and low splicing loss.

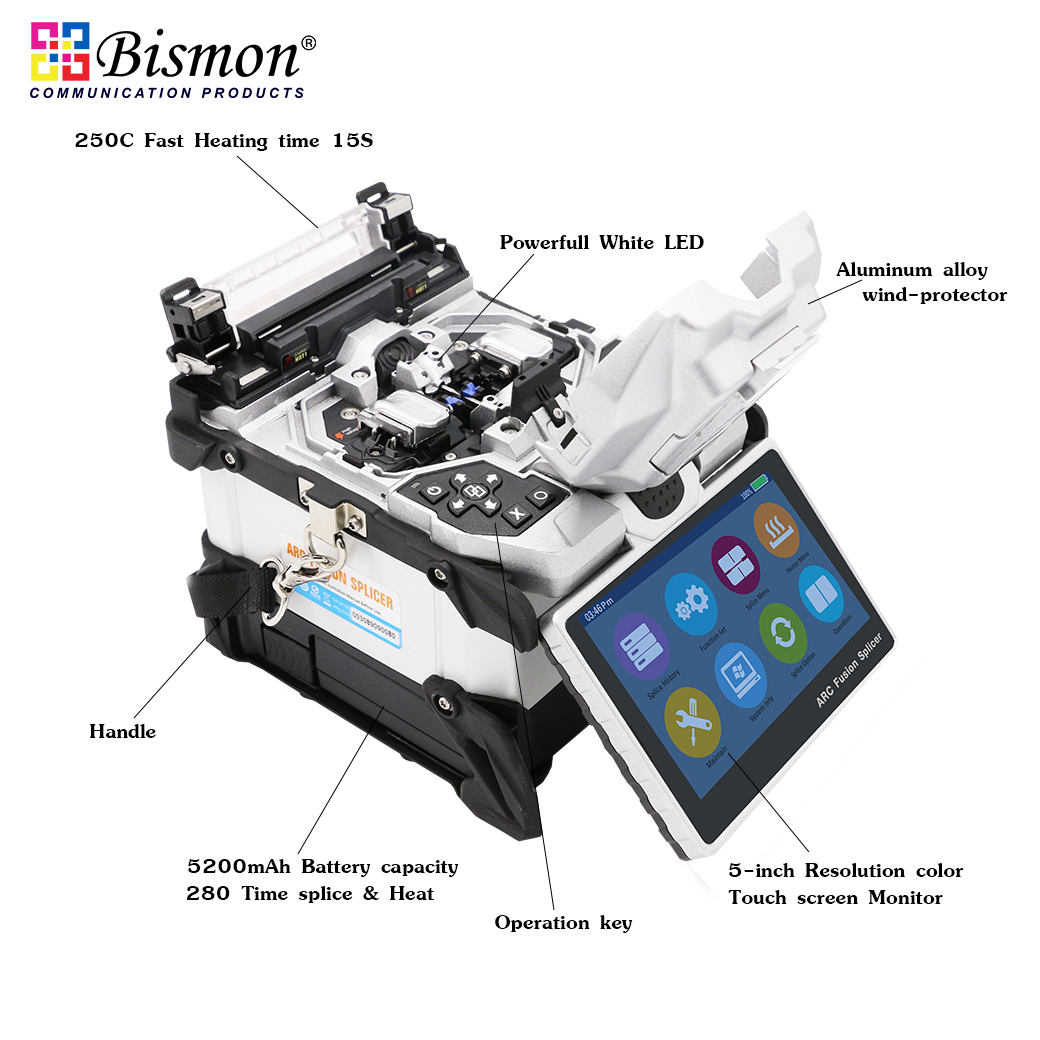

Feature
• 6 motors core alignment

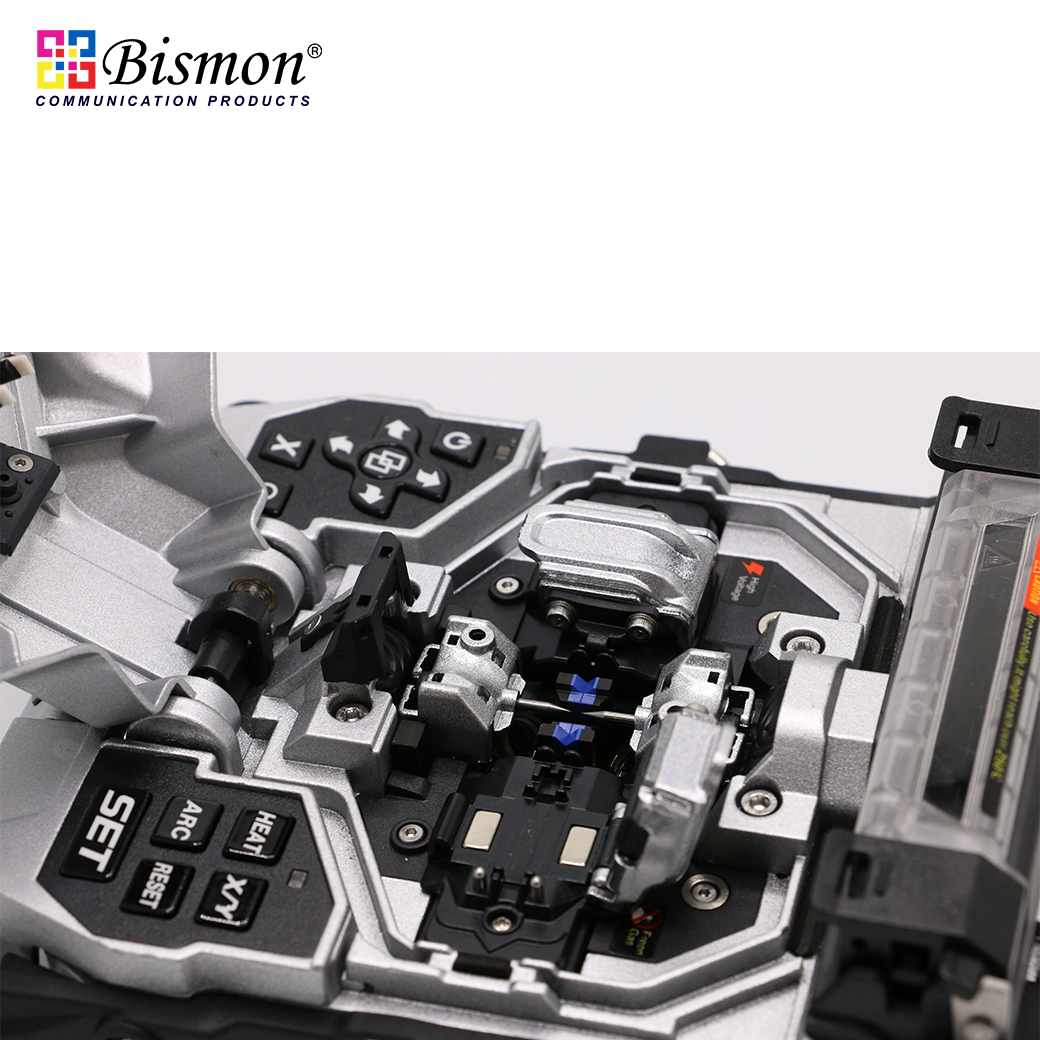

• V-groove precise alignment, high quality and low loss
• Auto-splicing mode, using friendly design
• Dust-proof, water-proof, high temperature resistance, adapting to various altitude and harsh environment
• 5.0” resolution color LCD touch screen, 500X magnification, visible clearly with bare eyes
• Packed with detachable 5200mAh battery, more than 280 times of splicing and heating
• High-power LED white light simplifies your work at night
| Fusion Splicer | ||||||
| Feature |
|
|||||
| Model | M9 | |||||
| Dimension | 135*160*135 mm. W*L*H (excluding rubber bumper) 140*165*135 mm. W*L*H (including rubber bumper) |
|||||
| Weight | 2250G (with battery) 1870G (without battery) |
|||||
| Motor | 6 Motor | |||||
| Splicing Method | Core Alignment technology | |||||
| Number of Fiber | Single | |||||
| Applicable Fibers | SM(ITU-T G.652 & G.657) MM (ITU-T G651) DS(ITU-T G.653) NZDS(ITU-T G.655) |
|||||
| Compatible Fiber/Cable | 0.25 - 3.0 mm / indoor Cable | |||||
| Cleaved Length | Diameter : 0.125 - 1mm / Cleaver Length: 8 - 16mm | |||||
| Cladding Diameter | 80 - 150 um | |||||
| Splicing Mode | Pre-set 41 splicing modes, max 100 modes | |||||
| Heating Mode | Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes |
|||||
| Typical Splice Loss | SM : 0.02 dB MM : 0.01 dB DS : 0.04 dB NZDS : 0.04 dB G.657 : 0.02 dB (ITU-T Standard) |
|||||
| Return Loss | ≥ 60 dB | |||||
| Lighting | 3 White LEDs | |||||
| Splicing Time | Quick mode: 6 Seconds | |||||
| Estimate Splice Loss | Available | |||||
| Heating Sleeve Length | 20 ~ 60 mm | |||||
| Heating Time | Quick heating time: 15 Seconds, typical heating time: 30 Seconds |
|||||
| Results Storage | The last 2000 results | |||||
| Tension Test | 1.96 - 2.25N | |||||
| Operating Condition | Operating Altitude : 0 - 5000m above sea level, 0 - 95% relative humidity , -10 ~ 50 °C, Max Wind 15m/s |
|||||
| Storage Condition | 10 ~ 95% relative humidity, -40 ~ 80 °C | |||||
| Display | 90° bi-directional view, 5" Color High-Resolution Display with touch screen |
|||||
| Fiber View &Manification | X, Y, XY, X/Y: 480X Magnification | |||||
| Power Supply | AC Input 100 -240 V , DC input 12- 15V | |||||
| No. of Splice/ Heating with Battery | 5200 mAh Battery Capacity Typical 280 times (Splice + Heat) |
|||||
| Operating Methods | Button/Touch Screen | |||||
| Automatic Calibration | Automatic arc calibration by air pressure and temperature |
|||||
| Electrode Life | 5000 arcs | |||||

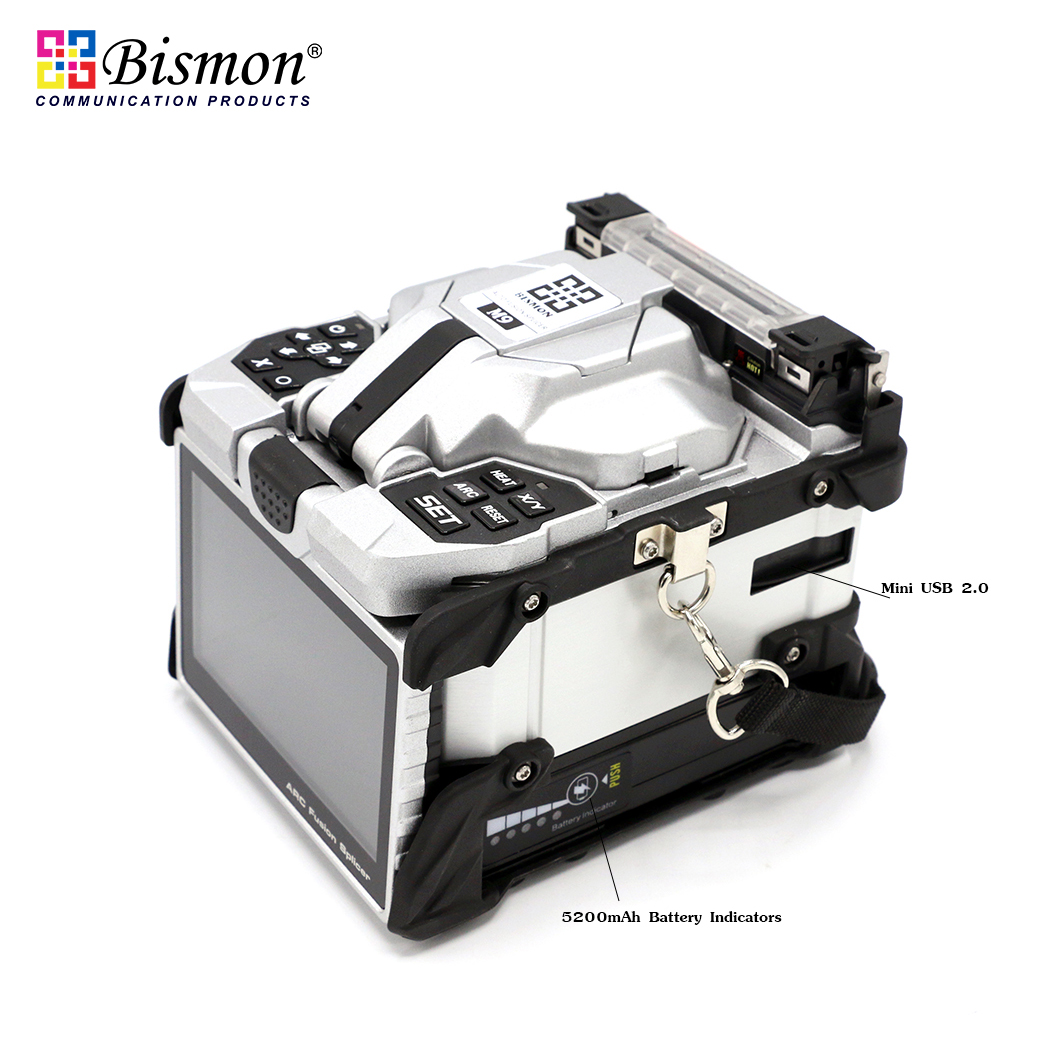

| Terminal | Mini USB 2.0 |
