Name: (Meanwell)Industrial DIN-Rail Power adapter 480W Single Output Industrial DIN RAIL with PFC and Parallel Function SDR-480P-48
Brand: Mean Well(MW)
SKU: SDR480P48
Price: 6560.00 THB
Availability: InStock

(Meanwell)Industrial DIN-Rail Power adapter 480W Single Output Industrial DIN RAIL with PFC and Parallel Function SDR-480P-48

Part number : SDR-480P-48

Brand : Mean Well(MW)

Price : 6,560.00 Baht

(Ex-Vat 7%)

Delivery time : 2 Day

Minimum order quantity : 1 Pcs

Warranty : 3 Year

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

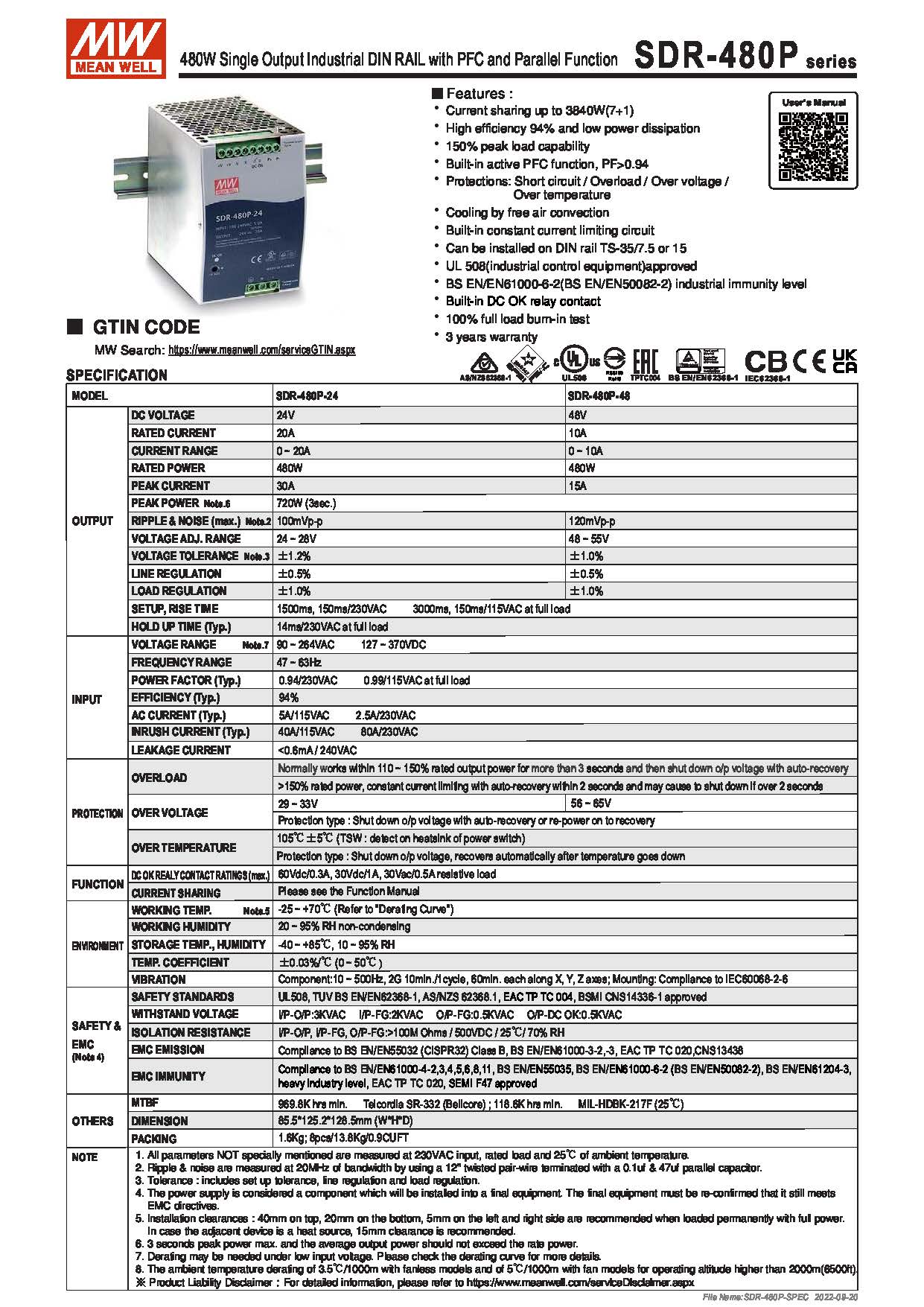

Specifications
Technical data
Brand	Mean Well
Item number	SDR-480P-48
Series	SDR-480P
Description	AC-DC Industrial DIN rail power supply; Output 48Vdc at 10A; Metal casing; Ultra slim width 85.5mm; Parallel function
Application	Installation UL 508
Application	ITE EN/UL/IEC 60950
Technology	AC/DC
Power Format	DIN rail
Output Power (W)	480
Output Voltage (V)	48
Output Current (A)	10
Input Voltage (V)	110/230 universal input
Input Voltage (V)	90 - 264
IP Rating	No IP assigned
Width (mm)	85.5
Height (mm)	125.2
Depth (mm)	128.5
Control Signals	DC OK
Dimming Technology	No Dimming
Information
Commodity	8504408390
Warranty pack	36 Months Bring-In
RoHS	Compliant
Packing quantity	8
Net weight (gram)	1680
Net weight (gram)	1680
