OVERVIEW

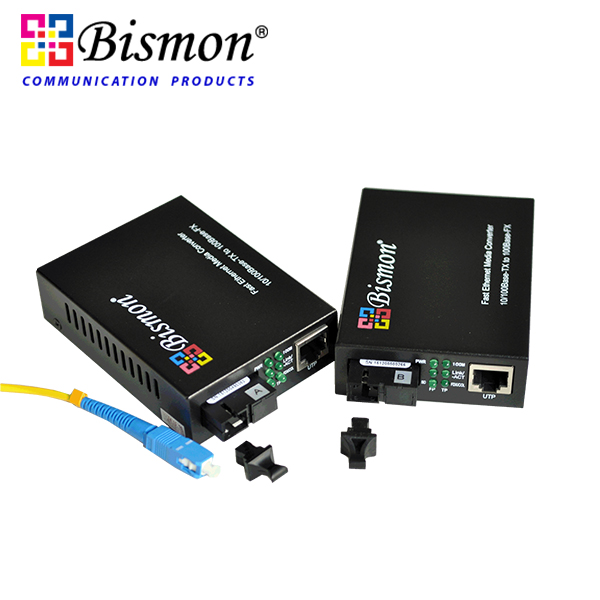

B1-3304-S100 10/100M Single Mode Single Fiber Media Converter

Feature

•  Card-type or stand-alone, apply in centralized management 2U aluminum chassis

•  Broadcast filtering feature/Address auto learning/ Automatic update feature/Store and forward operating mechanism

•  Cache is 512KB, MAC address table is 4KB

•  Ethernet 10Base-T or 100Base-Tx to 100Base-Fx fiber media converter

•  Support IEEE 802.3u, IEEE 802.3x, IEEE 802.3

•  Supports full-duplex or half-duplex backpressure flow control work, and with auto-negotiation capability

•  TP port supports 100Mbps, 10Mbps, two TP port could match different rate (When full-duplex bandwidth up to 2*Mbps)

•  Provide remote link loss diagnostics, TP port and FX port link connection diagnostic, dynamic data transmission, full / half-duplex, rate indicator

•  Provide 1 RJ-45 port, and support automatically cross-recognition, connected with a switch, set line

•  FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc.

•  Excellent after-sales service, providing three years quality assurance and life-long maintenance services
