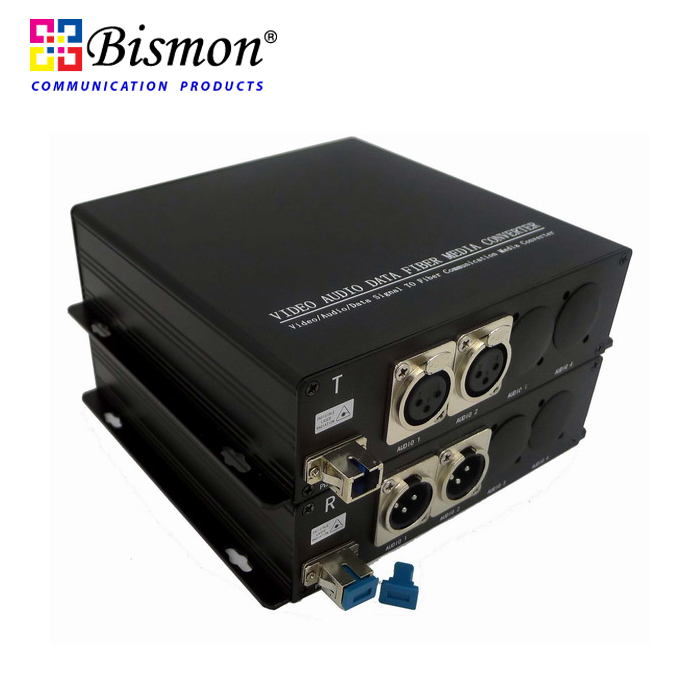

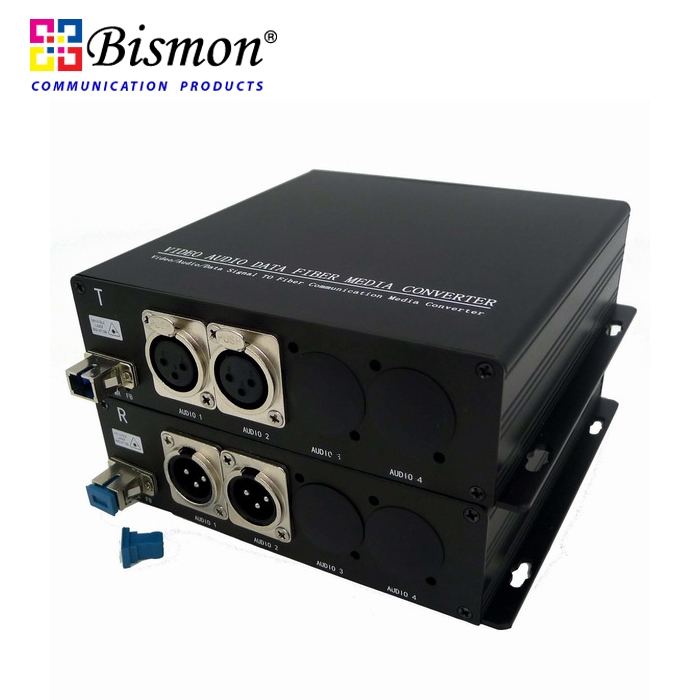

Mic + Line Audio to Fiber optic Single fiber 20KM(SM), FC Connector


Part number : B1-MLAUBXLR-FC

Brand : BISMON

Price : 0.00 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

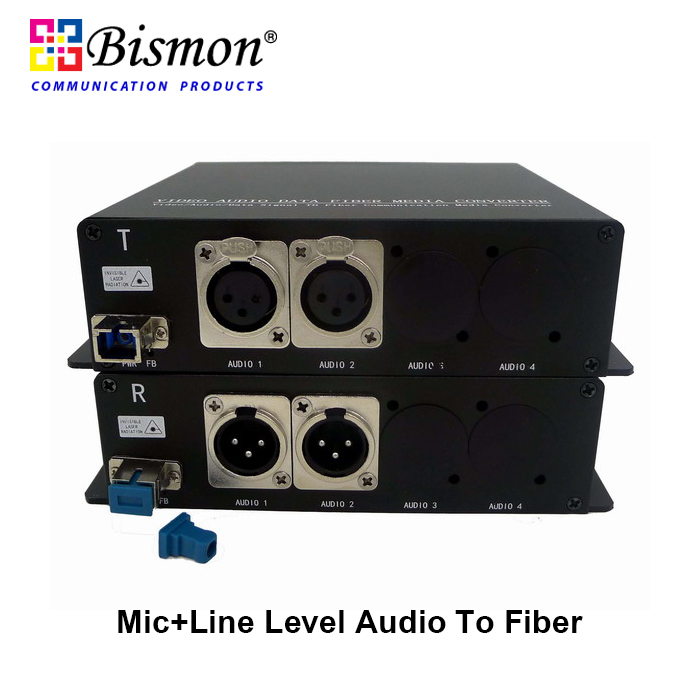

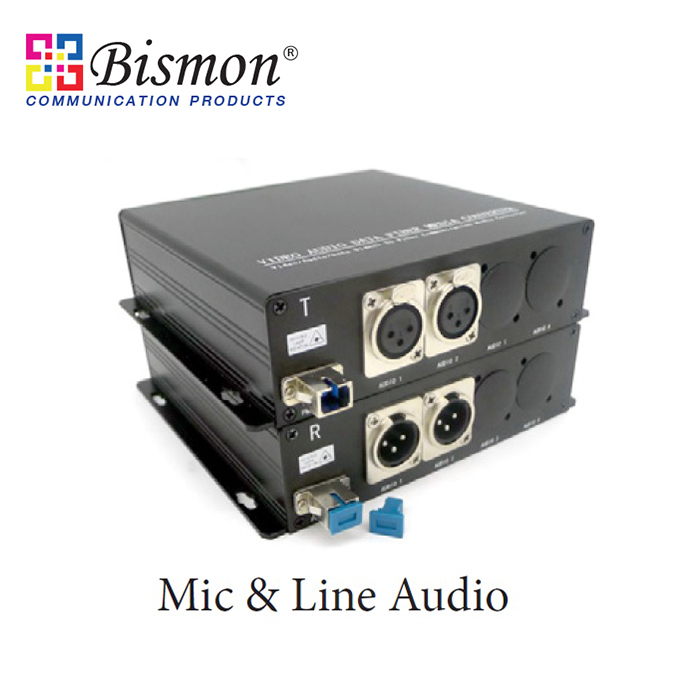

Mic&Line Level Audio To Fiber support 1 ch Mic level and 1 ch Line level 16-bit digitally encoded broadcast quality balanced audio over one multimode or single-mode optical fiber. These fiber optic transmitter and fiber optic receiver are typically used in applications for Rental, Staging, Theater, Stadiums, Theme Parks, Broadcast/Studio, CCTV audio and Professional AV applications, etc, and are available for stand-alone or rack-mount installations. FC, ST or SC optical connectors are optional.

Plug and Play design ensure adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status.

Specifications

Optical
Optical connector FC
Connector XLR
Audio Mic&Line Level
Wavelength 1310nm&1470nm~1610nm
Output Power -14~ -8dBm /   -5~0dBm
Optic fiber 50/125u multimode?62.5/125u multimode?9/125u single mode
Rx sensitivity -30dBm
Optical connector FC /ST /SC /LC (optional)
Distance 0~500M (MM)   /   0~20KM/40KM/60KM/80KM   (SM)

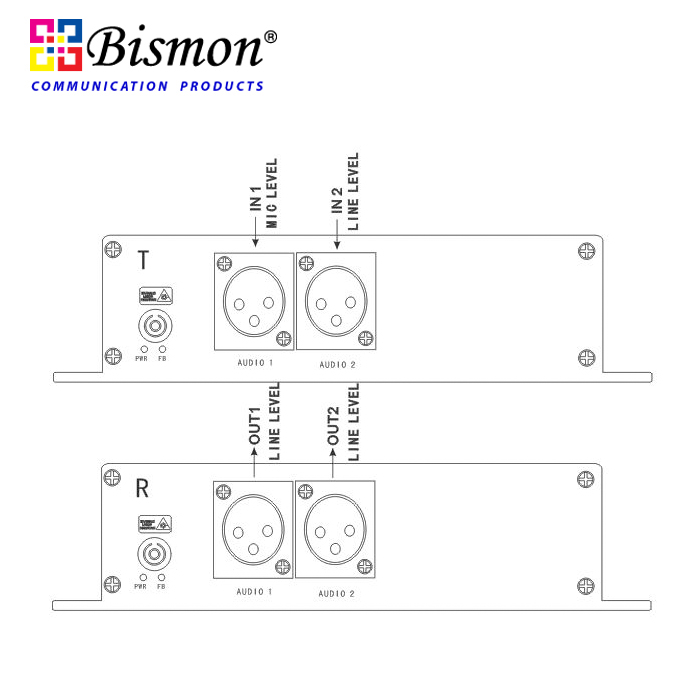

Mic level & Line level Balanced Audio
Input Connector XLR (female)
Output Connector XLR (male)
Mic level Audio
Number of Channels Input:1
Input Impedance 2k Ohm
Dynamic Range 60dB
Line level Audio
Number of Channels Input:1, Output:2
Input / Output Impedance 10K Ohm
Input capacitance LINE inputs 10 pF
Max input/output voltage 1.228Vp-p (+4dBu)
Frequency Response 20 Hz to 24kHz @±3dB
Sample Rates From 48kHz
SNR > 80dB
Electrical & Mechanical?
Input Power Requirements: DC 5V@2A
Power Adapter: AC 90V~240V
Power Consumption: < 5W

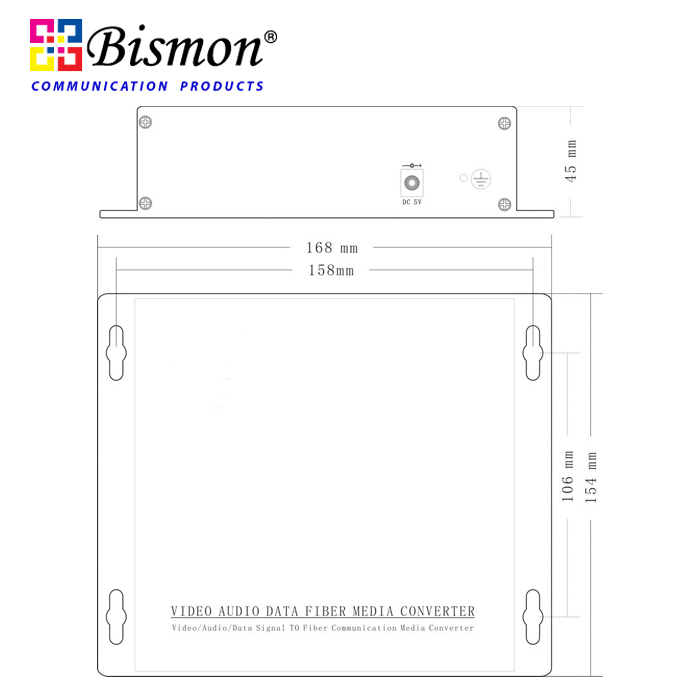

Stand-Alone Dimensions: 168mm × 154mm × 45mm
Shipping Weight: (include Transmitter & Receiver ) 2.5kg
Environmental
Operating Temperature: -20°C ~ +75°C
Storage Temperature: -40°C ~ +85°C
Relative Humidity: 0% ~ 95% (non-condensing)
MTBF: >100,000 hours




XLR connector Audio to over fiber optic cable
