Technical Details

1. Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
2. Powdered sheet steel plate, LxWxH: 139 x 35 x 91 mm
3. Weight: approx. 440 g
4. Operating temperature: 0-50 °C
5. Storage temperature: -20 – 70 °C
6. Relative humidity: 0 – 95 % (non condensing)

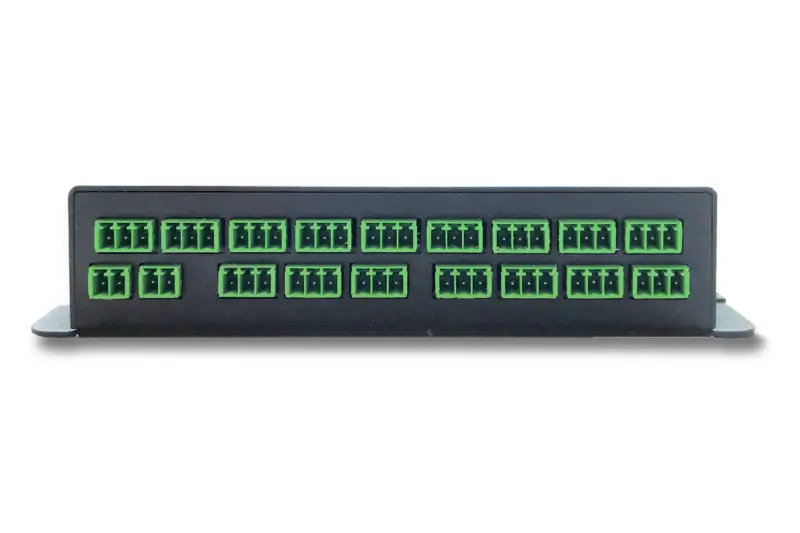

Electrical Connections

1. 2 power supply connectors (industrial clamp, 2-fold)
2. 4 switchable outputs (industrial clamp, 3-fold)
3. 12 passive signal inputs (industrial clamp, 3-fold

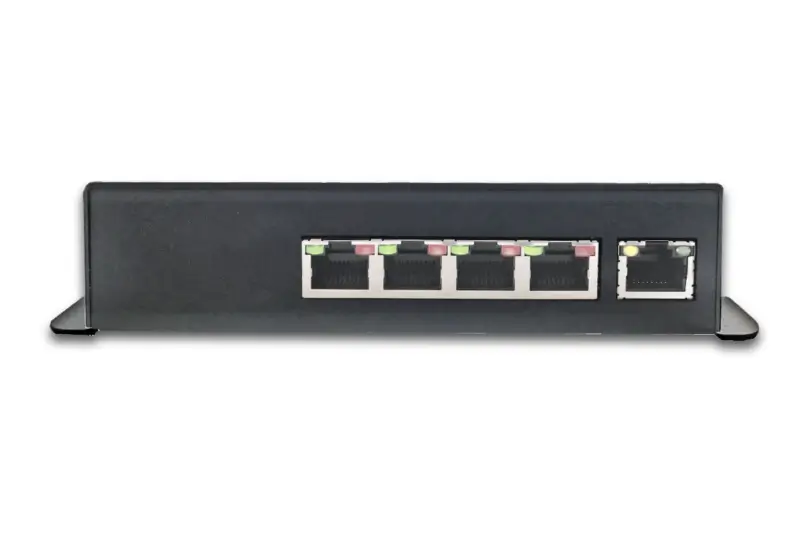

4. 4 sensor connectors (RJ45) for optional tempertaure, humidity and air pressure sensors
5. 1 Ethernet connector RJ45 (10/100 Mbit/s), power supply also Power-over-Ethernet possible (2111-2)

Switching functions

1. 4 switchable, potential-free relay outputs with changeover connector (NO and NC)
2. High switching capacity 36 V, 3 A
3. Automatic switching of relay outputs depending on sensor thresholds or inputs possible
4. Relays have high contact reliability even with very small loads
5. Self-healing function thanks to 4-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates an automatic restart if necessary

Security

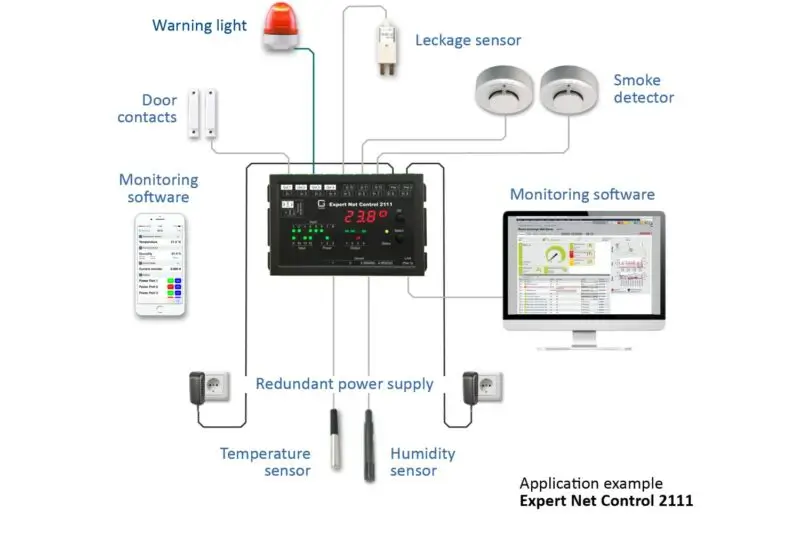

1. 4 connectors for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure
2. 2 power connectors for redundant power supply (12 V DC), as well as Power-over-Ethernet
3. Additional power supply through Power-over-Ethernet (PoE) possible (2111-2)
4. Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT, SSH, Telnet)
5. Encrypted e-mails (SSL, STARTTLS)
6. Access protection by IP access control
7. Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
8. Password protected access

Operation

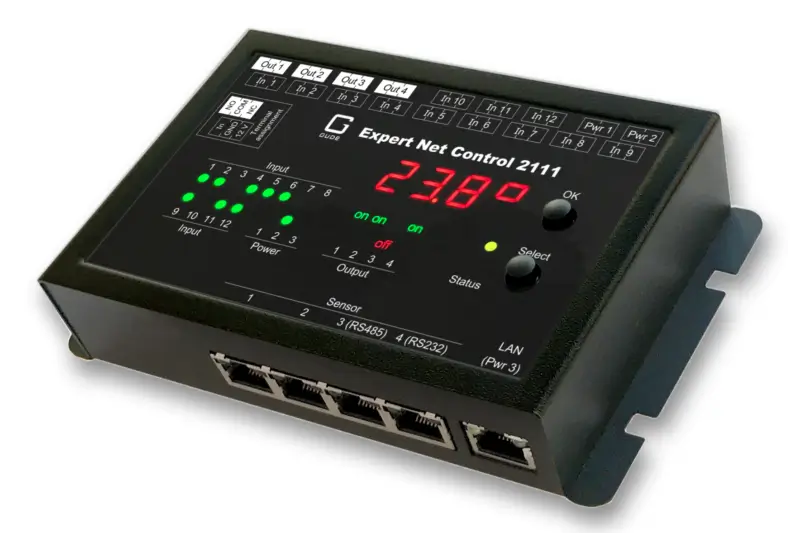

1. Easy-to-read LED display for displaying total current, IP address and sensor values
2. Firmware update via Ethernet during operation (no restart required)
3. Simple and flexible configuration via web browser, Windows or Linux program
4. Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
5. Rapid commissioning thanks to free and reliable drivers from our technology partners
6. Easy mounting on DIN rail thanks to mounting clip
7. Robust sheet steel housing with versatile mounting options
8. Montageclip 0860 allows attachment to DIN rail
