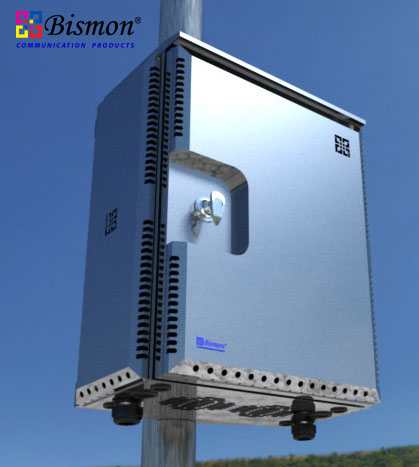

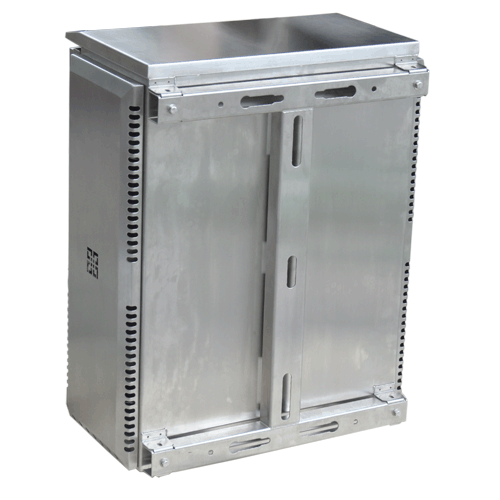

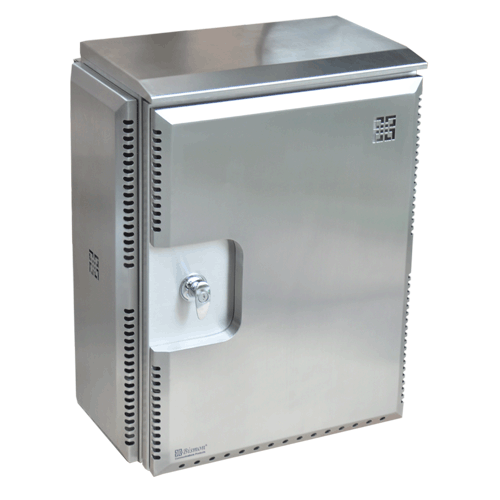

Professional Outdoor Cabinet Wall Mount Fiber 96 Port-stainless (Double Layer)


Part number : B1-WM96-OUT-SLR

Brand : BISMON

Price : 35,866.67 Baht
(Dealer price can log-in/ Exclude Vat)



OVERVIEW

Wall-Mount Outdoor Fiber Optic made of Stainless steel high quality and a long time for use. They can compliant with IP55 or IP 65 standard. they can accommodate the fiber from 12-96 Fiber support ST/SC/FC Cable entry 8 port use cable glands EG/PG29 depend on cable dia. 2 PCS The cable can be held the preformed holes by a 2 section cable inlet or cable feed through grommets

Specification

Brand Bismon
Model B1-WM96-OUT-SLR
Equipment Type Wall Mount Enclosure
Size 600 mm x 440 mm x 245 mm (HighxWidthxDepth)
Standard Compliant IP55 or IP 65 standard.
Material Stainless Steel
Application Can use for CCTV & IP Camera solution or other fiber optic solution
Features • One door lockable and Double Layer steel sheet protech UV
  • Double folded gutter at door frame to increase rigidity and prevents water from entering while the door is opened

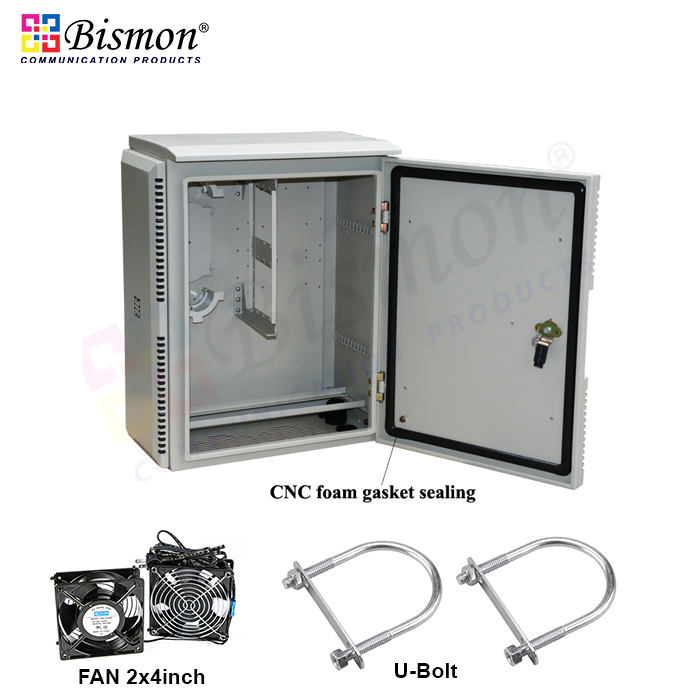

  • Provided 4mm thickness CNC foam gasket for protection waterproof for body closure

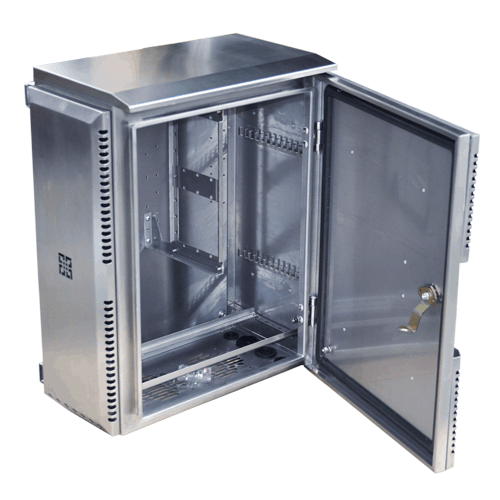

  • 4 welded studs for fixing mounting plate and service equipment inside
  • Surface finished cabinet with epoxy-polyester coating.
  • All screw or nut made of stainless steel
  • Can Change one panel 12-96 port, Max. Capacity use for snap-in plate 6 or 12 port
  • Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 8 pcs
  • Can support Multi-mode & Single-mode for 1 plate splice tray 12 or 24 port maximum 8 ea

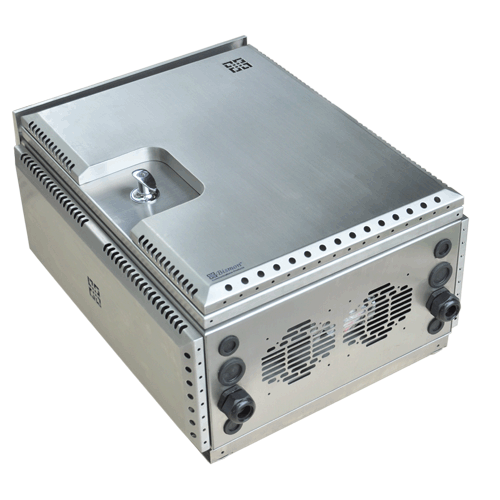

  • Can support FAN 2x4” for airflow at Bottom of Cabinet
  • Complete set tools for hang on pole and support 4 hole for wall type
  • Can support steel plate for stand UPS 500-1000VA below wall box
  • Can support hinges provide 130 deg. door opening.
Option (Made to order) -
Wall mount Outdoor for CCTV and Enclosure fiber optic - One door lockable and double layer stainless steel protect UV - Size: 600mm x 440x245 mm.(HxWxD) - Provided 4mm thickness CNC foam gasket for protection waterproof for body closure - 4 welded studs for fixing mounting plate and service equipment inside - All screw or nut made of stainless steel - Can support snap-in plate adapter 6 or 12 port and Max. 96 port, support ST/SC/FC/LC - Can support Splice tray 12 or 24 core max.8 pcs - Can support FAN 220VAC 4inch x 4inch : 2 pcs - Double folded gutter at door frame to increase rigidity and prevents water from entering while door is opened. - Complete set tools for hang on pole and support 4 hole for wall type - Can support steel plate for UPS 500-1000 VA below wall box - Can support hinges provide 130 deg. door opening
