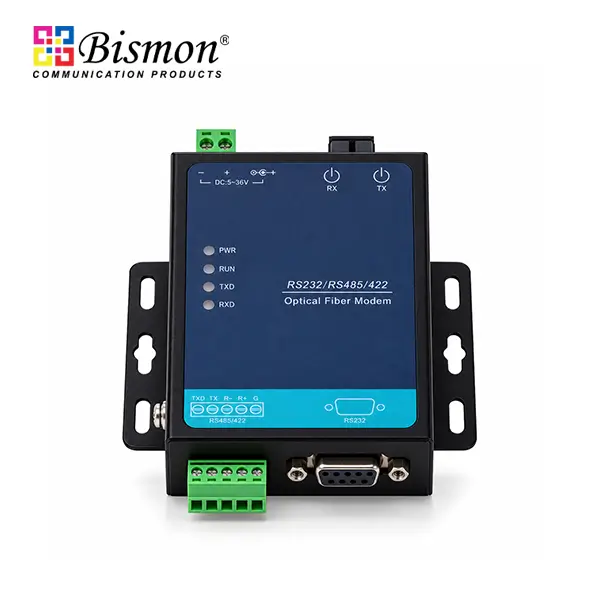

RS232/485/422 to Single-Fiber (BiDi) Fiber Converter(SC port) SM 20km Industrial grade(A)

Name: RS232/485/422 to Single-Fiber (BiDi) Fiber Converter(SC port) SM 20km Industrial grade(A)
Brand: BISMON
SKU: B1DIDUSS20A
Price: 6000.00 THB
Availability: InStock

RS232/485/422 to Single-Fiber (BiDi) Fiber Converter(SC port) SM 20km Industrial grade(A)

▸ คำอธิบายภาษาไทย
ตัวแปลงสัญญาณ RS232/RS485/RS422 เป็นไฟเบอร์ออปติก แบบ Single-Fiber ฝั่ง A (ส่ง 1310nm / รับ 1550nm) ส่งข้อมูลได้ไกล 20 กม. บนไฟเบอร์ Single-mode เพียง 1 Core ช่วยประหยัด Core ไฟเบอร์ได้ 50% รองรับ Baud Rate อัตโนมัติ 300-115200bps และ RS485 สูงสุด 128 Nodes ป้องกันสัญญาณรบกวนและฟ้าผ่า ต้องใช้งานคู่กับฝั่ง B (1550nm/1310nm) เสมอ รับไฟ DC 5?36V ตัวเครื่องโลหะ IP40 รับส่งข้อมูลระบบ Solar Cell (Inverter, Smart Meter, Data Logger) ได้ เหมาะกับงาน PLC, SCADA และระบบอุตสาหกรรม

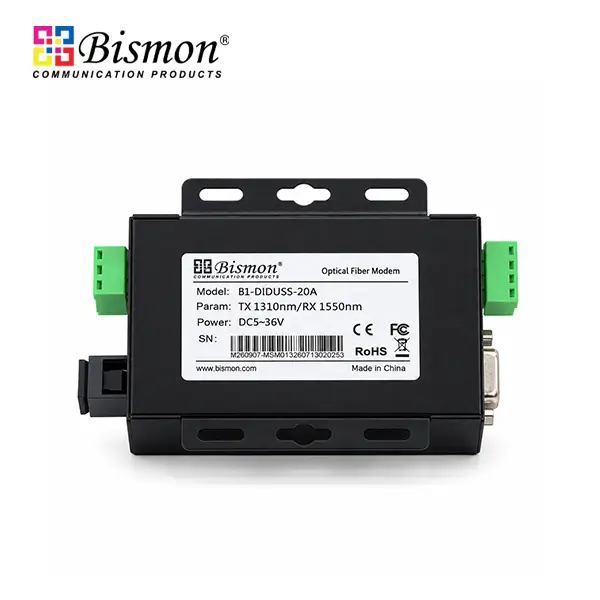

Part number : B1-DIDUSS-20A

Brand : BISMON

Price : 6,000.00 Baht / pcs

(Dealer price can log-in/Ex-Vat 7%)

Delivery time : 2 days

Minimum order quantity : 1 pcs

Warranty : 2 Year

ใหม่ / NEW ขอใบเสนอราคา & สั่งซื้อออนไลน์ได้แล้ว / Request a quote & order online

ใบเสนอราคาRequest Quote

สั่งซื้อออนไลน์Order Online

เครดิตเทอมCredit Term

จัดส่งทั่วไทยNationwide

กดเมนูด้านบนเพื่อเพิ่มสินค้าลงตะกร้า แล้วขอใบเสนอราคา / สั่งซื้อ / เครดิตได้ทันที / Click to add to cart, then request a quote, order, or credit

Credit Card:

(Online ชำระด้วยบัตรเครดิต ไม่มีชาร์จ)

Product Description

Industrial Serial to Fiber Optic Converter – 1 Core Single-Fiber, Used in A/B Pairs(ใช้งานเป็นคู่) ราคาต่อตัว

A Type (1310/1550nm) TX

The Bismon B1-DIDUSS-20A Single-Fiber is an industrial-grade RS232/RS485/RS422 to fiber optic converter designed for long-distance serial data transmission.

Its key advantage is full bidirectional communication over a single fiber core using WDM (Wavelength Division Multiplexing) technology.

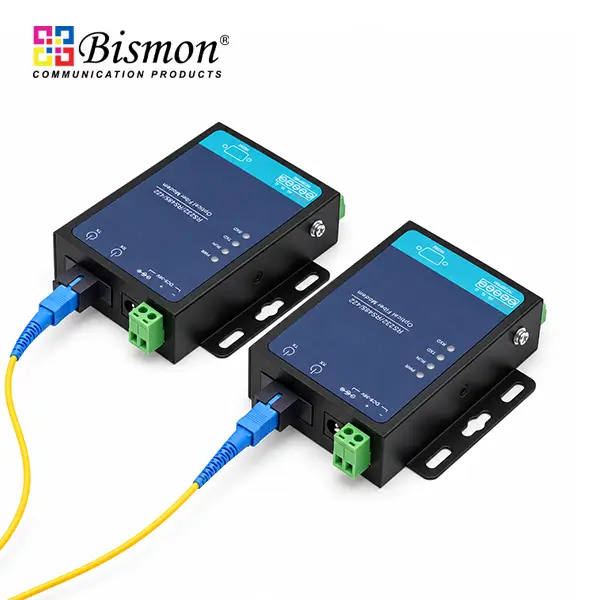

The converters work as a matched pair: A side transmits at 1310nm / receives at 1550nm, and B side transmits at 1550nm / receives at 1310nm.

This saves up to 50% of fiber cores, making it ideal for existing cables with few spare cores or leased fiber billed per core.

It supports a standard transmission distance of 20km over 9/125µm single-mode fiber.

Data is transmitted transparently, with automatic baud rate detection from 300bps to 115200bps – no configuration required.

RS485 data direction is controlled automatically without RTS/DTR signals, supporting up to 128 nodes.

Fiber transmission eliminates the EMI, ground loop and lightning damage problems common to long copper serial lines.

The unit accepts DC 5–36V with reverse polarity protection, in an IP40 metal housing rated for -40°C to +85°C.

Ideal for PLC, SCADA, energy meters, building automation, access control, parking systems and toll station applications.

Why Choose Single-Fiber for RS485 to Fiber Systems?

Industrial RS485 traffic is low-bandwidth (up to 115.2kbps) but often has to travel long distances between buildings, substations or field equipment. Dedicating two fiber cores to such a small data stream wastes valuable cable capacity. Single-fiber technology makes far more efficient use of your fiber infrastructure.

Item	Dual-Fiber (2 Cores)	Single-Fiber (1 Core)
Fiber cores per link	2 cores	1 core (50% saving)
Wavelength	Same wavelength on both sides	A: 1310/1550nm, B: 1550/1310nm
Leased fiber cost (per core)	2×	Half the cost
Connectors / loss points	2 connectors per side	1 connector per side
Risk of TX/RX crossover errors	Yes	None (single core)
Expansion on existing cable	Limited	Up to 2× more links
Installation	Any two identical units	Must use an A + B pair

Features

Feature	Description
Single-Fiber WDM (BiDi)	Bidirectional transmission over one fiber core
A/B Paired Operation	A: TX 1310nm / RX 1550nm; B: TX 1550nm / RX 1310nm
3-in-1 Serial Interface	Supports RS232, RS485 and RS422
Auto Baud Rate	Automatic detection from 300bps to 115200bps
RS485 Auto Direction	Automatic data flow control, no RTS/DTR required
Multi-Node Support	RS485 up to 128 nodes
Long Distance	20km standard over single-mode fiber
Wide Power Input	DC 5–36V with reverse polarity protection
Industrial Grade	IP40 metal housing, -40°C to +85°C
EMC Protection	Compliant with IEC 61000-4-2 / 4-4 / 4-5

Functions

Function	How It Works
Serial to Fiber Conversion	Converts RS232/485/422 electrical signals to optical signals over fiber
Transparent Transmission	Passes data without protocol changes – works with Modbus RTU and other serial protocols out of the box
Wavelength Multiplexing	Separates transmit and receive directions using 1310nm and 1550nm on one core
Point-to-Point / Point-to-Multipoint	Connects master and slave devices in single or multi-point networks
Zero-Delay Conversion	Internal conversion with no added latency
Status Monitoring	LED indicators for PWR, RUN, TXD and RXD

Benefits

Benefit	Value to Your System
50% Fiber Core Saving	Reuse existing cables with limited spare cores – no new cable runs
Lower Cost	Reduces dark fiber lease, cable, splicing and connector costs
Easy Expansion	Doubles the number of links your existing cable can carry
Simple, Error-Free Installation	One connector per side – no TX/RX crossover mistakes
Fewer Loss Points	Fewer connectors and splices for a more stable link
Surge & Lightning Immunity	Non-conductive fiber fully isolates grounds between sites
EMI Immunity	Reliable near motors, inverters and power cables
Plug-and-Play Compatibility	No changes to existing PLC/SCADA software or hardware
Data Security	Fiber is far harder to tap than copper cable

Specifications

Category	Item	Specification
Serial Port	Standards	EIA RS232, RS485, RS422
	Interface	1× RS232 or RS485/422
	Connector	RS232: DB9 female; RS485/422: 5-pin terminal block, 3.81mm pitch
	RS232 Signals	TX, RX, GND
	RS485/422 Signals	T+/A, T-/B, R+, R-, GND
	Baud Rate	300bps – 115200bps (auto-sensing)
	Nodes	RS485 up to 128 nodes
	Direction Control	RS485 automatic direction detection
Fiber Port	Type	1× single-fiber (BiDi WDM)
	Connector	SC (ST/FC optional)
	Wavelength	A side: TX 1310nm / RX 1550nm B side: TX 1550nm / RX 1310nm
	Fiber Type	Single-mode 9/125µm
	Distance	20km (standard)
	TX Power / Sensitivity	≥ -8dBm / ≤ -20dBm (depends on optical module)
	Bit Error Rate	≤ 10^-9
Status LED	Indicators	PWR, RUN, TXD (fiber transmit), RXD (fiber receive)
Power	Input Voltage	DC 5–36V, reverse polarity protection
	Power Consumption	< 0.3W @ DC 24V (full load)
	Connector	2-pin 5.08mm terminal block or Φ2.5mm DC barrel jack
Physical	Dimensions	96 × 90 × 26 mm
	Housing / IP Rating	Metal, IP40
	Installation	Wall-mounted
	Weight	Approx. 0.25kg
Environment	Operating Temp	-40°C to +85°C
	Storage Temp	-40°C to +85°C
	Humidity	5–95% (non-condensing)
EMC	ESD	IEC 61000-4-2 Level 4 (contact ±8kV, air ±15kV)
	Surge	IEC 61000-4-5 Level 3 (power & RS485: CM ±2kV, DM ±2kV)
	EFT	IEC 61000-4-4 Level 4 (power ±4kV, RS485 ±2kV)
