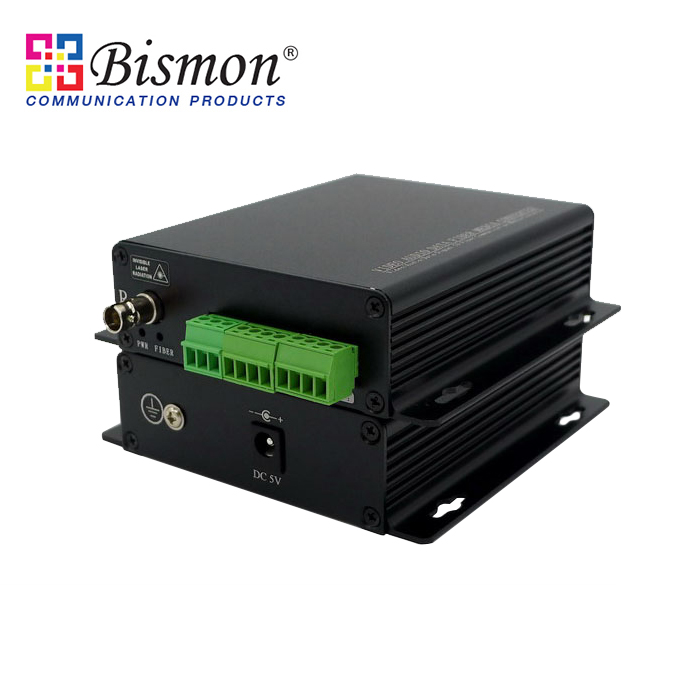

RS485/232/422 Over Fiber
Part number : B1-RSF004
Brand : BISMON
Price : 0.00 Baht
OVERVIEW
RS232/RS485/RS422 to Fiber support RS-485, RS-232, RS-422 data over one multimode or single-mode optical fiber. The serial data support RS-485, RS-232, RS-422 data protocols. These fiber optic transmitters and fiber optic receivers are typically used in applications with PTZ Control, Access Control System, CCTV surveillance, Industrial control, ITS, etc, and are available for stand-alone or rack-mount installations FC, ST or SC optical connectors is optional.
Plug and Play design ensure adjustment-free installation and operation, and optical adjustments are never required. LED indicators are provided to instantly monitor the system operating status
| Specifications | |
| Opitcal | |
| Wavelength | 1310nm&1550nm |
| Output Power | -12~-3dBm |
| Rx sensitivity | -30dBm |
| Transmission Distance | 50/125u multimode? |
| 9/125u single mode? 20/40/60/80km | |
| Optical connector | FC?ST?SC (optional) |
| Data | |
| Data protocol | RS232, RS422, RS485, Manchester, BIPHASE data |
| Data rate | 0~500 Kbps |
| Error rate | < 10-9 |
| Connector | Standard terminal lead |
| Electrical & Mechanical | |
| Input Power Requirements: | DC 5V@2A |
| Power Adapter: | AC 90V~240V |
| Power Consumption: | < 5W |
| Stand-Alone Dimensions: | 104mm × 104mm × 28mm |
| Shipping Weight: | (include Transmitter & Receiver ) 0.75kg |
| Environmental | |
| Operating Temperature: | -20°C ~ +75°C |
| Storage Temperature: | -40°C ~ +85°C |
| Relative Humidity: | 0% ~ 95% (non-condensing) |
| MTBF: | >100,000 hours |
