Overview

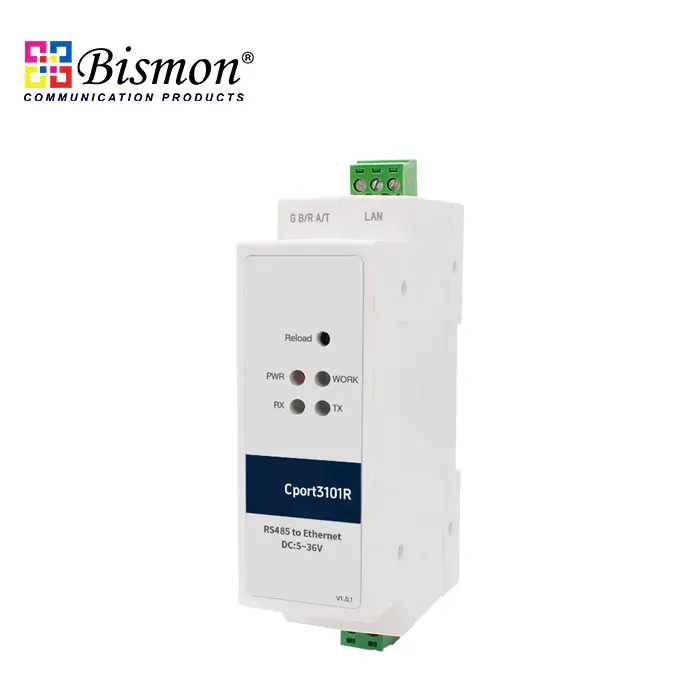

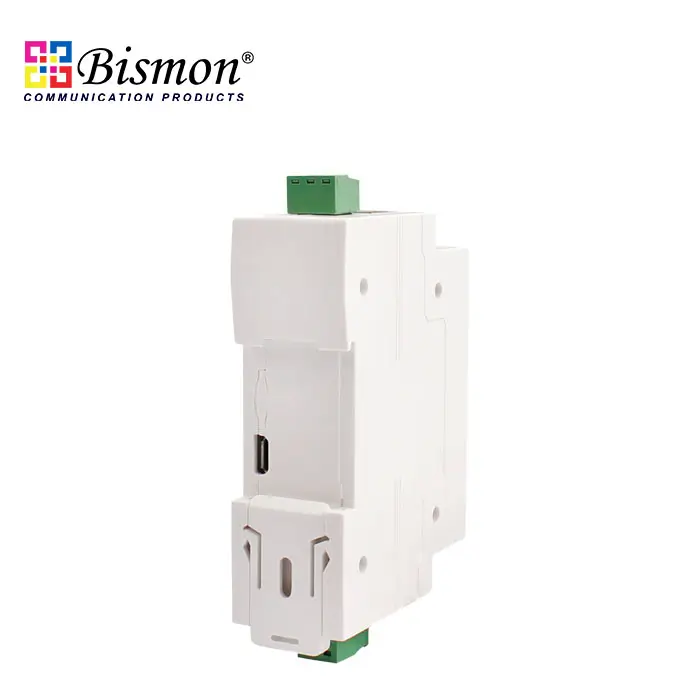

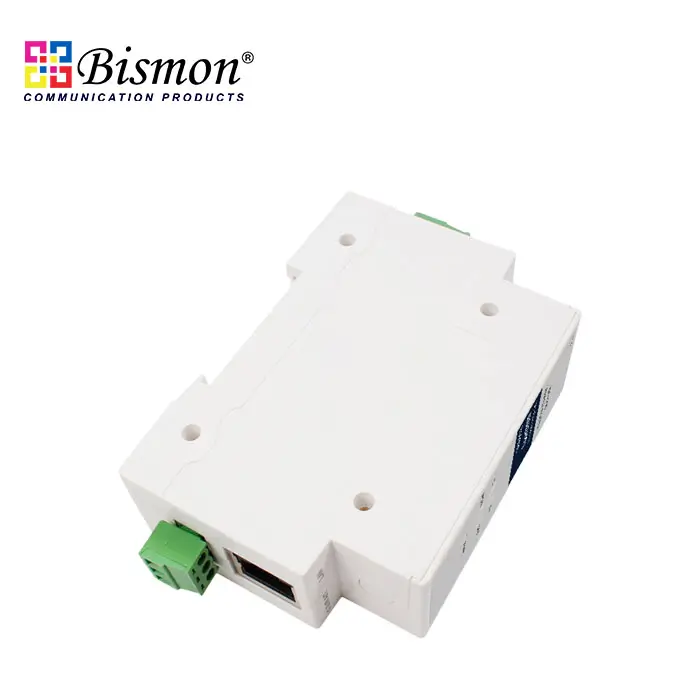

B1-Cport3101R-485 Modbus RS485 to Ethernet converter can realize bidirectional transparent transmission between RS485 and Ethernet. It carries ARM processor, low power, fast speed, high stability. Via web-page or software, RS485 to Ethernet Converter can realize serial data and TCP/IP data package transparent transmission.

Product Features

- ARM base on Cortex-M0 kernel, and reliable TCP/IP protocol stack

- Industrial working temperature range from -40C ~85C

- Auto-MDI/MDIX, RJ45 port with 10/ 100Mbps

- Support TCP server, TCP client, UDP server, UDP client, HTTPD client and modbus TCP work mode

- Serial port baud rate can be set from 600bps to 460.8Kbps, parity: None, Odd, Even, Mark, Space

- Support self-defined heartbeat package, keep the connection can never crash

- Support self-defined registration package, check the station of the connection, which also can sed as the self-defined package head. Users can use the MAC as the registration package.

- Under the TCP server mode, the number of the client connected to the server can be set from 1-8, default 4

- Under the TCP server mode, if the number of the clients number is 8, kick the old one or not can be set

- Configure the parameters via the webpage, AT command, serial protocol and net protocol, provide setting protocol, and users can put into their software

- Support TCP client short connection, the disconnection interval can be set

- Support timeout restart( no data and restart), the restart time can be set

- Before the TCP connection build, client the buffer data or not can be set

- Support DHCP, obtain the IP automatically

- The global unique MAC address bought from IEEE, also users can define MAC address

- Support DNS function, and analyze the domain name. The DNS server address can be set

- Upgrade firmware via network

- Support hardware and software restore default settings

- Running across the gateway, converter and the router

- Running in LAN or in access the external net
