Description

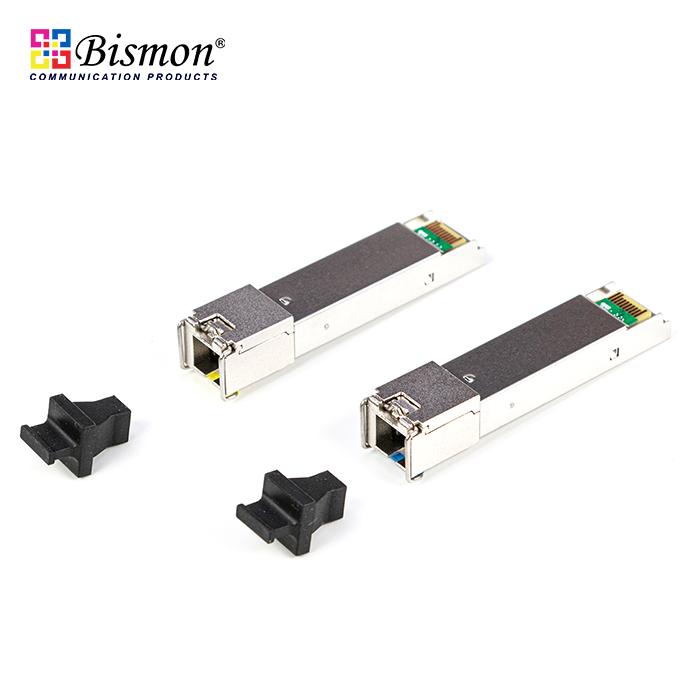

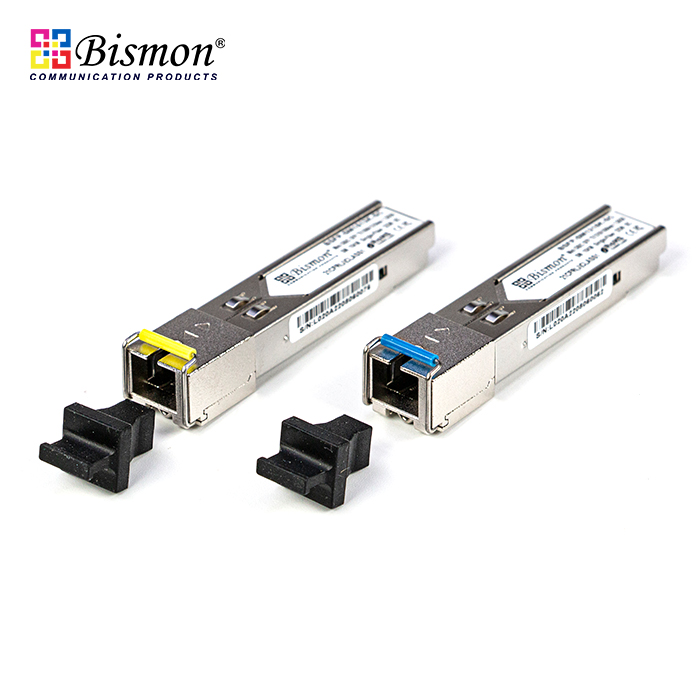

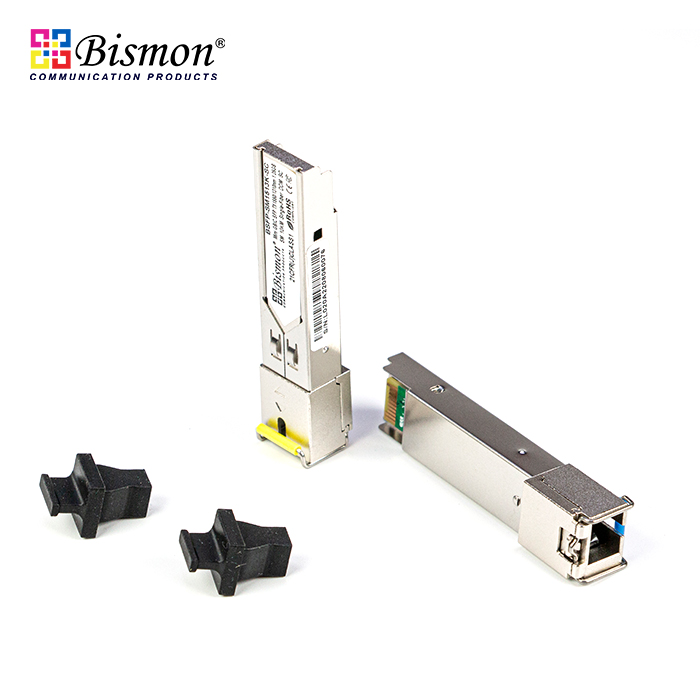

BISMON’s BSFP-SM1315K-SC Transceivers are high-performance, cost-effective modules that have a single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to 14dB link budge ensure this module 1000Base-LX Ethernet 1.25GB distance 10km application.

Features

• Up to 1.25Gb/s Data Links
• Hot-Pluggable
• Single SC connector
• Up to 10 km on 9/125μm SMF
• 1310nm FP laser transmitter
• 1550nm PIN photo-detector
• Single +3.3V Power Supply
• Monitoring Interface Compliant with SFF-8472
• Maximum Power <1W
• Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
• RoHS compliant and Lead Free

Applications

• 1000Base-LX Ethernet
• Metro/Access Networks
• 1×Fiber Channel
• Other Optical Links
