OVERVIEW

BISMON’s BSFP-SM1310K-20 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of four sections: the LD driver, the limiting amplifier, the FP laser and the PIN photo-detector .The module data link up to 20KM in 9/125um single mode fiber

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

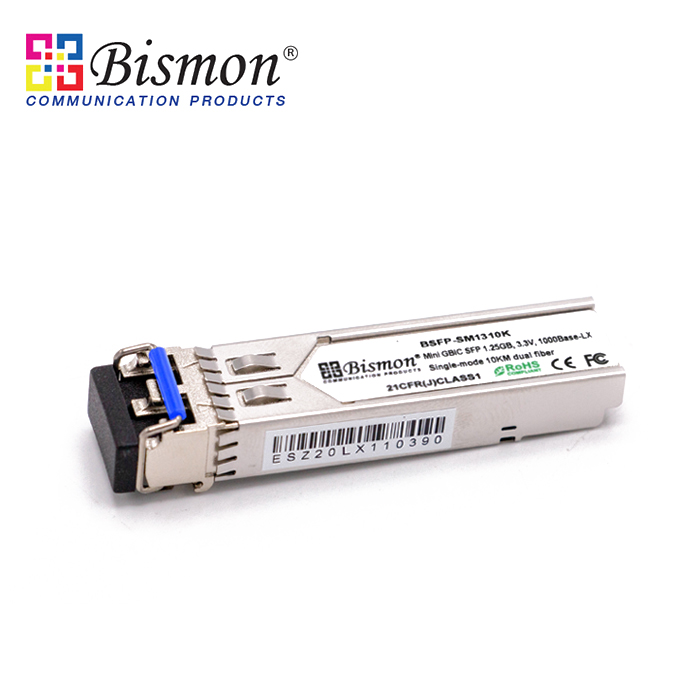

BSFP-SM1310K-20 Mini-GBIC SFP 1.25GB, 3.3V, 1000Base-LX, SM 20km

Feature

 • Up to 1.25Gb/s data links

 • DFB laser transmitter and PIN photo-detector

 • Up to 20km on 9/125μm SMF

 • Hot-pluggable SFP footprint

 • Duplex LC/UPC type pluggable optical interface

 • Low power dissipation

 • Metal enclosure, for lower EMI

 • RoHS compliant and lead-free

 • Single +3.3V power supply

 • Compliant with SFF-8472

 • Case operating temperature

             Commercial: 0°C to +70°C

             Extended: -10°C to +80°C

             Industrial: -40°C to +85°C

Applications

 • Switch to Switch Interface

 • Gigabit Ethernet

 • Switched Backplane Applications

 • Router/Server Interface

 • Other Optical Links
