OVERVIEW

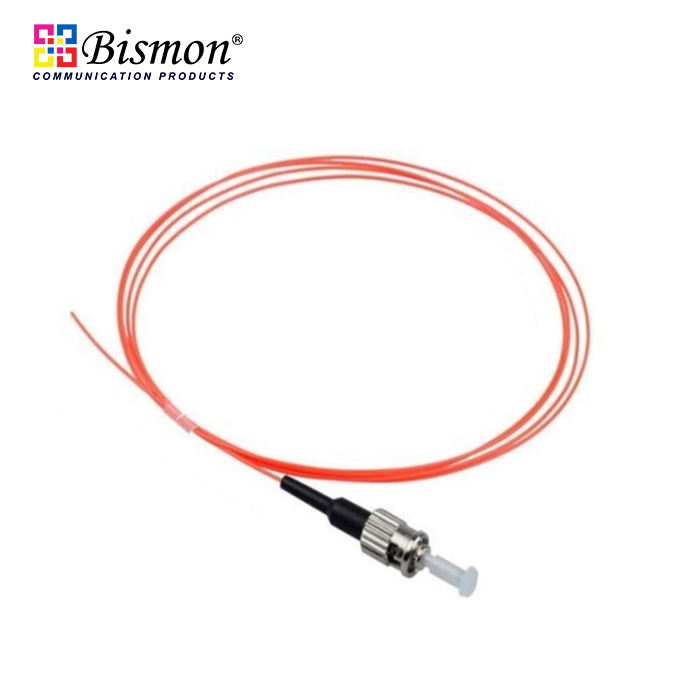

ST Pigtail Fiber optic Multi-mode 62.5/125um(OM1) Simplex, length 1.5 meters, OD:0.9mm, PVC Sheath
Features:
• UPC Polishing
• High return loss, Low insertion loss
• High reliability, High temperature stability
• Compliant with Telecordia GR-326-Core, TIA/EIA and IEC
• Insert draw connection (simple, easy)
• Comply to IEC standard
Applications:
• 10GB/s high speed LAN Network
• Telecommunication networks
• Local area networks (LANs)
• Wide area networks (WANS)
• High speed and legacy networks with Gigabit & Fast Ethernet
• Supports video, data and voice service
Specifications
Fiber Type: Single Mode (G.652.D, G.657A1, G.657A2)
Insertion loss(dB): ≤0.2
Temperature(C): -40~+80
Repeatability(dB): ≤0.1
Durability: ≥ 1,000 Matings
Return loss(dB): PC≥45, UPC≥50, APC≥65
Cable diameter(mm): Ø3.0, Ø2.0, Ø0.9
Tensile Strength(N): ≥90N(OD:3.0), ≥ 70N (OD:2.0mm)
Bend radius min.: 20mm @OD:0.9mm, 23mm @OD:2.0mm, 25.3mm@OD:3.0mm
