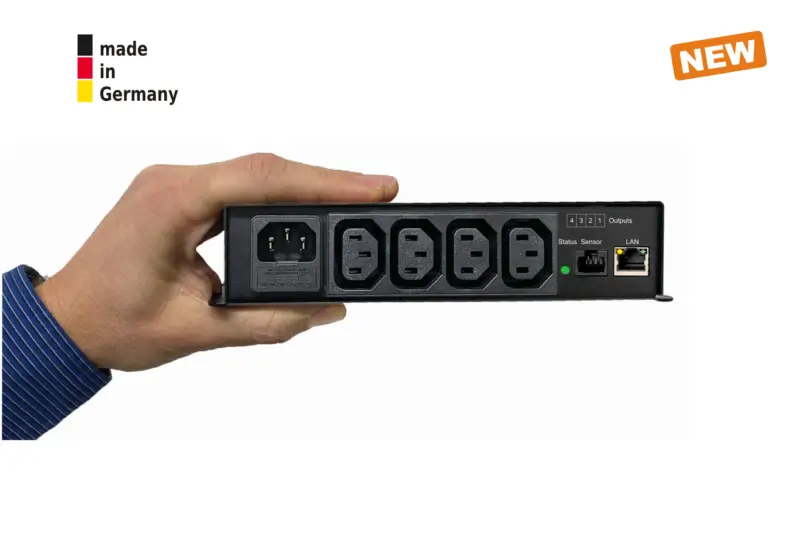

Small and smart 4-fold switched and metered PDU
Expert Power Control 1141-1 for more operational security and energy efficiency in small installations
- Demonstrably fewer and shorter outages of your critical IT and AV infrastructure
- Compact housing design allows space-saving integration even in confined small AV environments such as media furniture
- Detect AV and IT problems at an early stage: Proactive power and environment monitoring
- Measurably increased energy efficiency (Green IT and AV): Electricity cost and CO2 savings through controlled switching off of devices
- Integrate anywhere: Quickly and easily integrate anywhere with API interface: HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH und MQTT/MQTTS 3.1.1
- Fix AV and IT problems quickly and effectively: Remote reboot or with the self-healing function (automatic restart) thanks to integrated watchdogs
-
Key Features
- Simple and quick mounting even in the smallest AV installation
- Event and schedule controlled switching
- Precise current metering of up to 9 electrical units
- Connector for plug-and-play sensors
- Self-healing function
- Hybrid surge protection (SPD type 3)
---------------------------------------------------------------------------------------------------------------
Expert Power Control 1141-1
เพื่อความปลอดภัยในการทำงานและประสิทธิภาพด้านพลังงานที่สูงขึ้นสำหรับการติดตั้งขนาดเล็ก
-
ลดจำนวนและระยะเวลาของการหยุดทำงานของโครงสร้างพื้นฐาน IT และ AV ที่สำคัญได้อย่างเห็นผลจริง
-
ดีไซน์ตัวเครื่องกะทัดรัด ช่วยให้ประหยัดพื้นที่ สามารถติดตั้งได้แม้ในสภาพแวดล้อม AV ขนาดเล็ก เช่น ในเฟอร์นิเจอร์มัลติมีเดีย
-
ตรวจจับปัญหา AV และ IT ได้ตั้งแต่ระยะเริ่มต้น: ด้วยการตรวจสอบพลังงานและสภาพแวดล้อมเชิงรุก
-
เพิ่มประสิทธิภาพด้านพลังงานอย่างชัดเจน (Green IT และ AV): ลดค่าไฟฟ้าและการปล่อย CO? ด้วยการควบคุมการปิดเครื่องที่ไม่จำเป็น
-
สามารถผนวกรวมได้ทุกที่: ติดตั้งและเชื่อมต่อได้อย่างรวดเร็วและง่ายดายผ่าน API เช่น HTTP/HTTPS (REST API) JSON, SNMP, Modbus TCP, Telnet, SSH และ MQTT/MQTTS 3.1.1
-
แก้ปัญหา AV และ IT ได้อย่างรวดเร็วและมีประสิทธิภาพ: ด้วยการรีบูตจากระยะไกล หรือใช้ฟังก์ชัน self-healing (รีสตาร์ทอัตโนมัติ) จาก watchdogs ที่ติดตั้งมาในตัว
คุณสมบัติหลัก
-
ติดตั้งง่ายและรวดเร็ว แม้ในระบบ AV ขนาดเล็กที่สุด
-
การควบคุมการสวิตช์ตามเหตุการณ์หรือกำหนดเวลา
-
การวัดกระแสไฟฟ้าที่แม่นยำสำหรับอุปกรณ์ไฟฟ้าได้ถึง 9 ชิ้น
-
มีพอร์ตสำหรับเซนเซอร์แบบ Plug-and-Play
-
ฟังก์ชัน Self-healing
-
การป้องกันไฟกระชากแบบผสม (Hybrid Surge Protection – SPD type 3)



Technical Details
- Integrated type 3 overvoltage protection (L-N, L/N-PE), status retrievable via network
- High-inrush relay: max. 4 sec: 30 A /max. 20 ms: 80 A
- Measurement of key electrical parameters: current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
- Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
- LxDxH: 187 x 95 x 43 mm (without mounting brackets)
- Weight: approx 880 g
- Operating temperature: 0-50 °C
- Storage temperature: -20 – 70 °C
- Relative humidity: 0 – 95 % (non condensing)
Electrical Connections

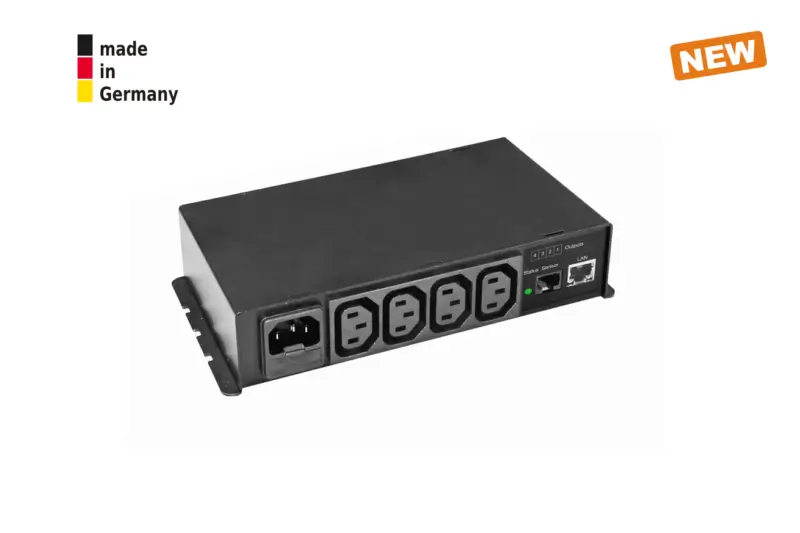

- 1 power supply IEC C14 (max. 10 A, 230 V)
- 4 power ports IEC C13 (max. 10 A)
- 1 Ethernet connector RJ45 (10/100 Mbit/s)
- 1 serial interface RS232 (terminal clamp, 3-pole)
- 1 sensor connector (RJ45) for plug-&-play sensors
Switching function
- Each power port can be switched via HTTP(S), SNMP, ModbusTCP or command line interface via Telnet, SSH, MQTT/MQTTS and serial interface
- Programmable on/off sequences for remote reboots (Remote Reboot)
- Power ports can be switched when preset sensor thresholds are exceeded
- Self-healing function thanks to 4-channel watchdog: Each power port can be assigned its own Watchdog (ICMP/TCP), which initiates a fully automatic restart if necessary
- Switching state and switch-on delay up to 9999 seconds (166 minutes) individually adjustable for each output port after power failure
- Current peaks due to increased inrush currents are automatically prevented by sequential switch-on with a latency of 1 second
Metering function
- Power consumption metering (kwH) with 2 energy counters: one counter counts consistently, the other counter is resettable
- Metering of current (A), voltage (V), phase angle, power factor, frequency (Hz), active power (W), apparent power (VA) and reactive power (VAr)
- Connector for combined plug-and-play sensors (temperature, humidity and air pressure) to prevent often occurring physical hazards like overheating and increased humidity or air pressure
Security
- Integrated type 3 overvoltage protection prevents damage to the device and connected loads
- Long-life High-Inrush Relays prevent welding of relay contacts during inrush current peaks
- Generation of status messages and alarms (e-mail, syslog, SNMP traps MQTT/MQTTS, SSH, Telnet)
- Encrypted e-mails (SSL, STARTTLS)
- Access protection by IP access control
- Encrypted communication through SSL (TLS 1.1, 1.2, 1.3) and SSH
- Password protected access
- Beeper for audible alarm when sensor limits are exceeded/deceeded
Operation

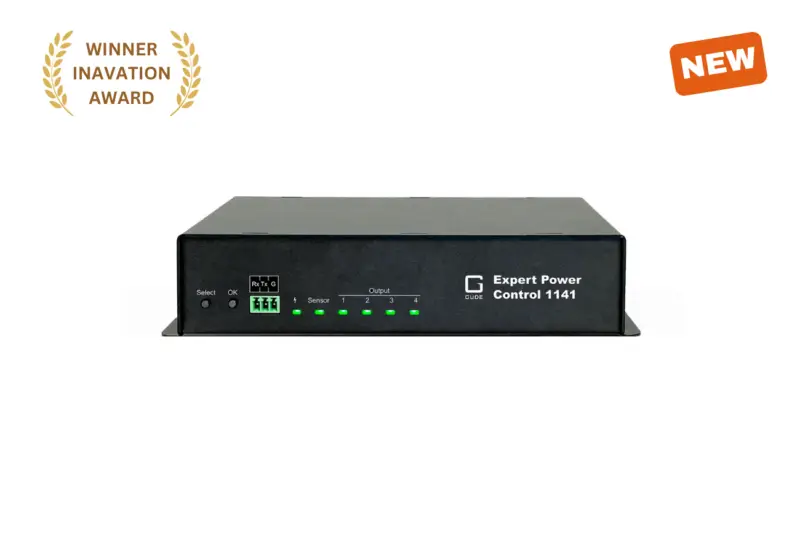

- Easy-to-read LEDs displaying switching status of outlets and device status
- Firmware update via Ethernet during operation (no restart required)
- Simple and flexible configuration via web browser, Windows or Linux program
- Dynamic assignment of an IP address via DHCP or manual assignment of static IP address
- Rapid commissioning thanks to free and reliable drivers from our technology partners
