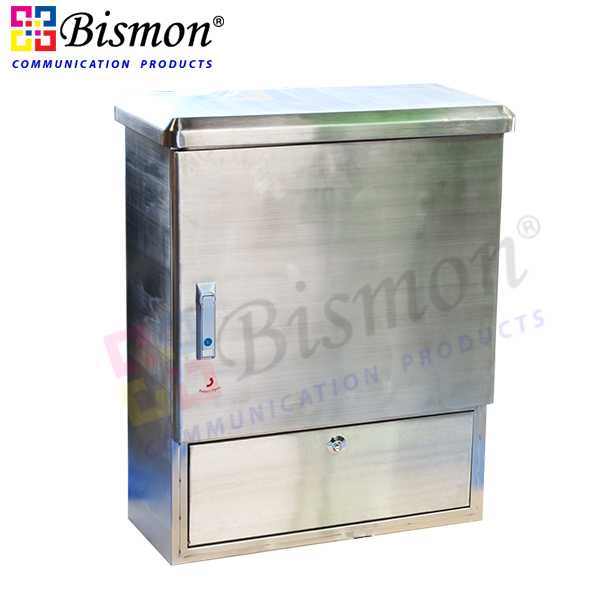

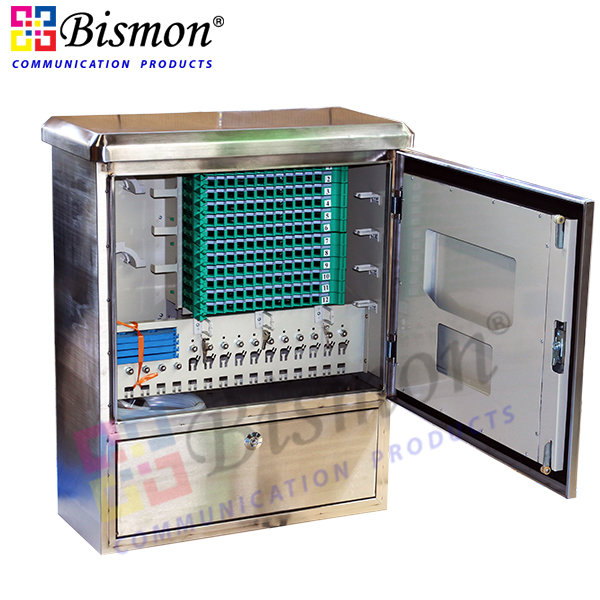

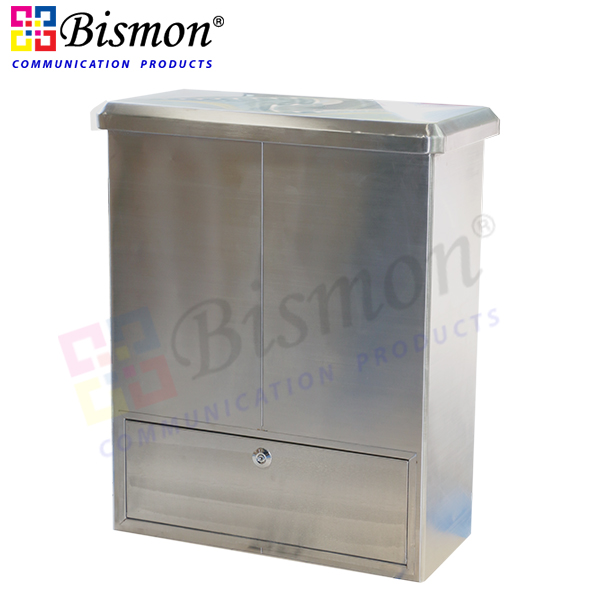

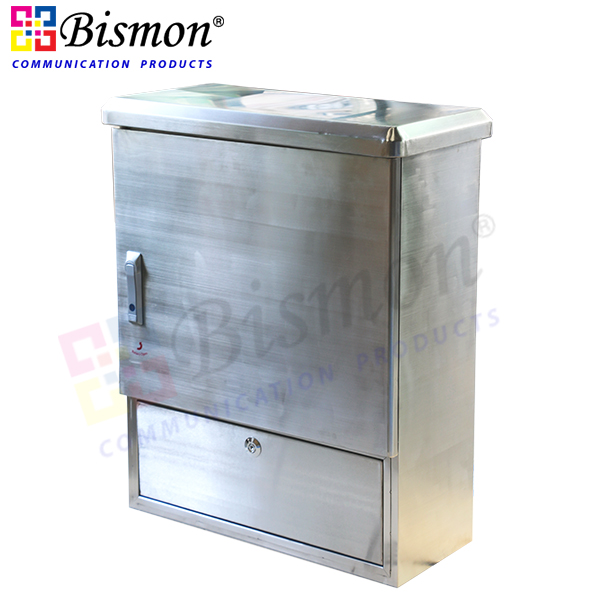

(Stanless Steel) 144 Core Cabinet Outdoor Fiber optic
Part number : B1-18-C-144(STS)
Brand : BISMON
Price : 48,666.67 Baht
| OVERVIEW |
| B1-18-C144ST serial outdoor cabinet is designed for the connection between the Optical fiber cable and the main points, and it is a kind of port device. It has the function of direct or indirect connection, coiling, storage, and dispatching on the fiber cable. |
| Feature |
| • Cabinets are made of double side wiredrawing stainless steel, with the protection grade reaching IP65. Modular design |
| • Flexible configuration and quick installation |
| • Suitable for ribbon and no ribbon optic fibers |
| • 30 °oblique installation of adapters, preventing eyes from laser's hurts and ensuring the fiber bending radius |
| • Suitable for inserting installation of SC, FC,ST(additional flange) adapters |
| • The bending radii are ensured to be more than 40mm in anyplace. Reliable fiber introduction, grounding and fixing |
| • Swap convenient |
| • Suitable fiber integrated and optical fibers |
| • A special suspension mechanism is designed to enable ground mounted, wall?mounted or aerial for users’ requirement. |
| Specification |
| • Environmental temperature:-25~+60. |
| • Relative humidity: less than 95%(When the temperature is below 40). |
| • The dew-proof, the rainproof, the dustproof, and thief-proof are up to YD/T988-1998 standard. |
| • Insulation resistance between the cabinet and the earthing device: ≥2×104MΩ/500VDC. |
| • Voltage-resistance strength between the cabinet and the earthing device: non-puncture, no arc-over under 3000VDC/1min. |

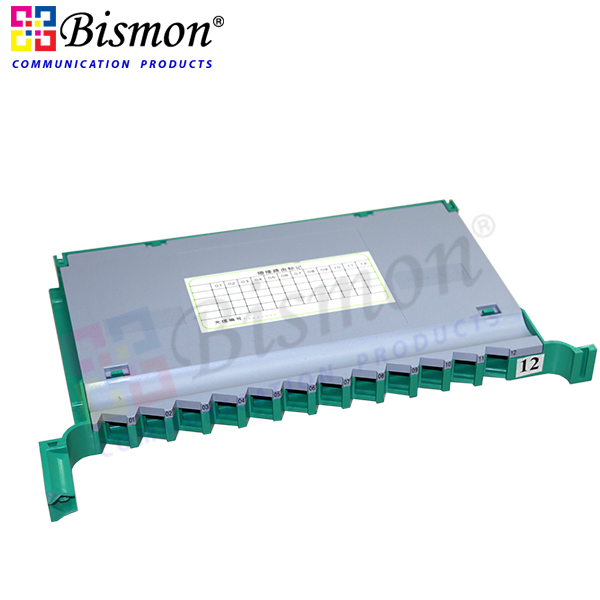

| • Support Tray Max: 12 core (Adapter SC simplex, FC-Square type) |
| • Capacity 144 core |
| • Dimension 700x844x340mm |
| • Material 204/304 Stainless Steel |
|
• Net weight 190kgs
|
