Functions & Features
Available Protocols
- SNMPv1, v2c and v3 supported; accepts NMS monitoring as well as actively sends trap packets to target hosts; support IPv4 and IPv6 TCP/IP protocol
- MODBUS TCP/IP
- MQTT
- Web monitor and set up through network browser with built-in web server
- Remote authentication: LDAP, 802.1x
- Others telnet, SSH, FTP, SFTP, BOOTP, DHCP, SMTP, SNTP, WOL, Syslog
- MIB supports RFC1628 and Delta proprietary UPSv4 and UPSv5 MIB
Management
- Scheduling: perform planned UPS power on & off and battery testing
- Regular power on & off: can set up UPS power on and off time
- Regular battery discharging testing
- Smart shutdown: can send power off signal to connected host actively if the host computer has the ShutdownAgent installed
- Optional environment probe can integrate ambient temperature and humidity with 4 additional digital inputs for total cabinet monitoring
Event Log Recording and Export
- Event sequence and UPS parameter data recording
Complies with ICS Security Standards
- IEC 62443-4-1 Secure product development lifecycle requirements
- IEC 62443-4-2 Technical security requirements for industrial automation and control system components
Technical Specifications

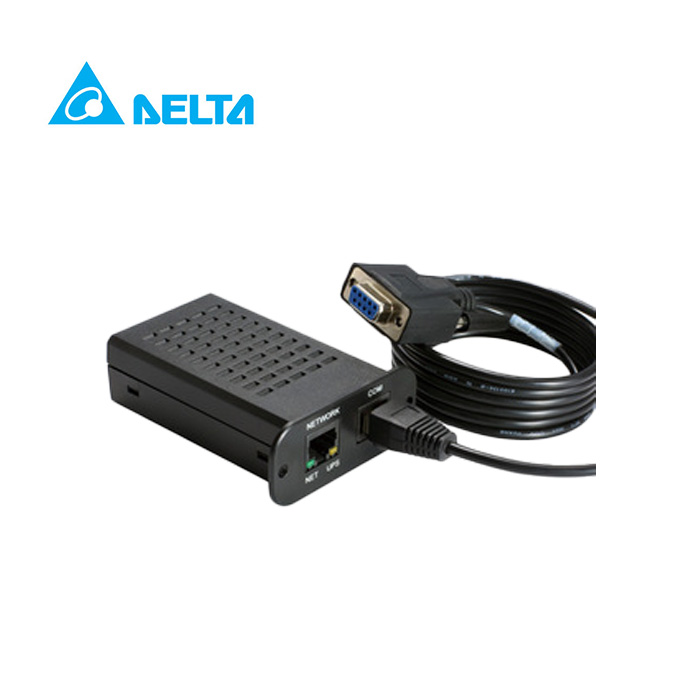

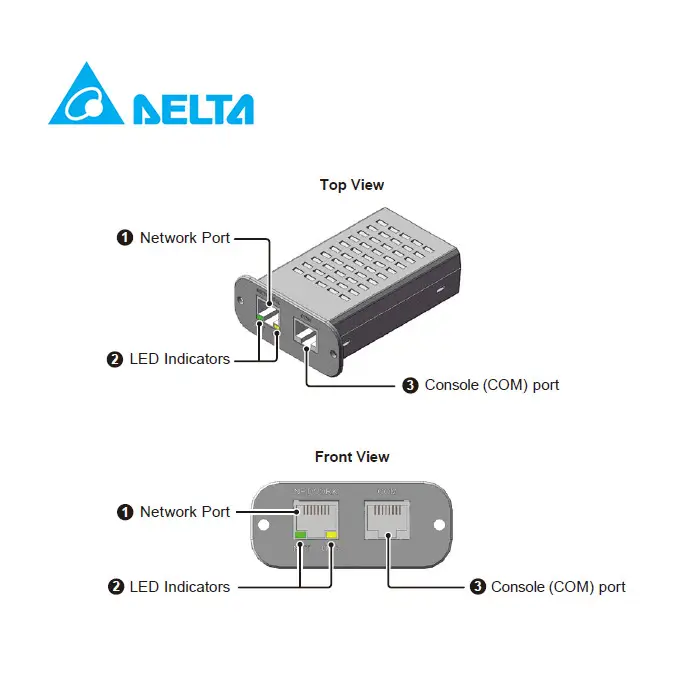

Model Mini SNMP IPv6 Card
Deployment
Network Connection 10/100 M RJ45 Connector
Input Power 12 Vdc
Power Consumption < 2 W
Operation Temperature 0 to 60°C
Operation Humidity 0-95%
Physical
Dimensions 87 x 70 x 30 mm
Net Weight 75 g
Conformance
Standard EN 55032:2015+A11:2020, EN 55035:2017+A11:2020
Product Certifications FCC Class B, CE, UL
Sustainability RoHS, REACH
