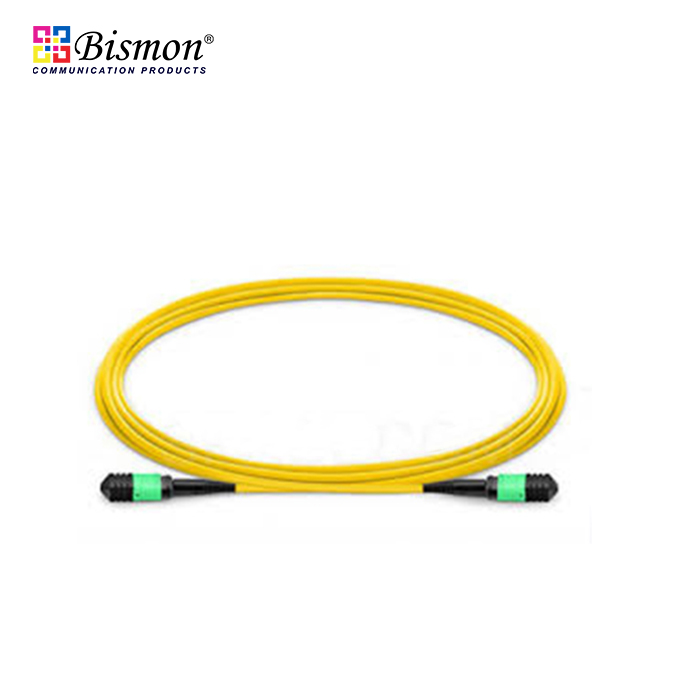

Type:A MPO/APC-MPO/APC(Female) 12 Fibers, PVC, SM 9/125um(OS2) 20M

MPO-MPO Singlemode 12 fibers Fiber Optic Patch Cord
Compatible to PSM4 QSFP+ and QSFP28

MTP (MPO) 12 fibre patch cables are mainly used to directly connect between QSFP+ (or QSFP28) transceivers or to connect MTP (MPO) trunk cables to QSFP+ (QSFP28) transceivers.

Polarity A MTP (MPO) patch cables and with female connectors on each end and will enable a direct connection for SR4 transmission between two QSFP type transceivers.

Model Number: MPO Singlemode 9/125um
Inserion Loss: ≤ 0.6dB SM OS2

Connector-Type: High connectivity MPO

Cable type: 3.2 mm round LSZH jacketed cable

Connector End face: MPO end face geometry requirements: EN50377-15-1

Polishing Quality:: Polished end-face quality: IEC61300-3-35

Our MPO patch cables are designed for data center solutions supporting the topologies such as 10
Gigabit Ethernet, Fiber Channel or Infiniband - as specified in the data center standards EN50173-5 and
ISO/IEC 24764.

MPO Detail:

MPO patch cables are used to make the interconnections between the MPO cassettes or connections to active
equipment with MPO/MTP interface.

In cases where an MPO patch cord is connected (through an MPO coupler) to another MPO patch cable, one of
the two MPO connectors must be male (equipped with pins).

MPO patch cables are available in 3 different wire map configurations: Straight, Total Flipped or Pair Flipped

MPO patch cables are available in multi-mode and single-mode fiber cable.

Applications :

-Disaster Recovery

-Backbones

-Building Fiber Optic Distribution

-Quick setup of new wiring hubs


-Warehouses
