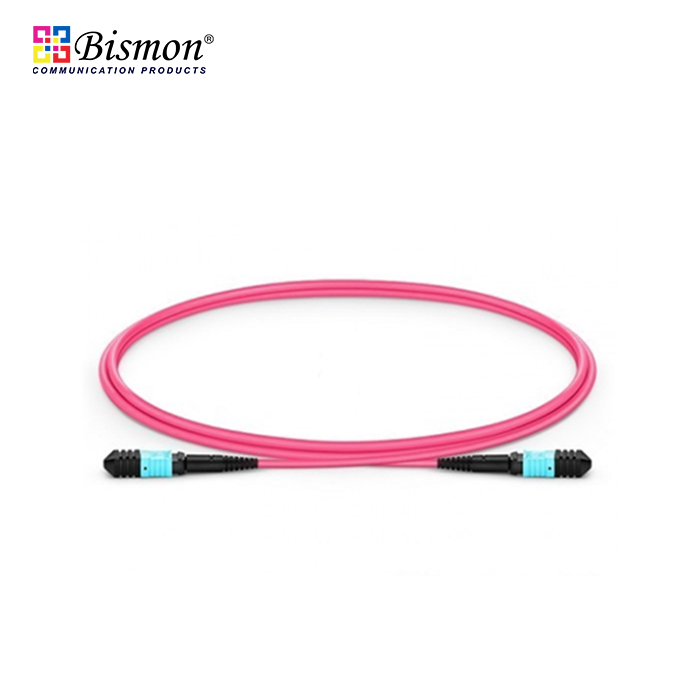

Type:B MPO(female)-MPO(Female) 12 Fibers, PVC, MM 50/125um(OM4) 1M

• Fiber Cable Description: OM4 MTP/MTP 12 Strand Multi-Fiber Patch Cable | 100G OFNP Laser Optimized Multimode Fiber (LOMMF), Jumper Cord. Twelve (12)  50/125 optical fiber cores,  Type B (Key up to Key up) type polarity. High bandwidth fiber for high speed, low loss, data transmission.
• Fiber Patch Cable, 12 Fiber Patch Cable, Plenum OFNP Rated, 1/10/40/100Gb, Zip-cord Reinforced, Fiber Optic Cable.
• Core/Cladding: Corning 50µm (micron) diameter fiber core / 125µm diameter cladding. The fiber optic core is surrounded by a transparent, low refraction, cladding material. Light is contained within the fiber core (total internal reflection) causing the fiber within the patch cord assembly to act as a wave-guide. Light travels through the fiber bouncing off the boundary between core and cladding.
• Optical Modality Details: Ethernet Over OM4 Multimode Fiber 3500 / 4700 MHz-km Modal Bandwidth 850nm / 1300nm | Fast Ethernet 100Base-FX 2000m | 1Gb (1000Mb) Ethernet 1000Base-SX 550m (Requires mode-conditioning patch cord) | 10Gb Ethernet 10GBase-SR 400m | 40Gb Ethernet 40GBase-SR4 150m (550m QSFP+ eSR4) | 100Gb Ethernet 100GBase-SR10 150m.
• Fiber Network Bandwidth: 3600/500 MHz-km @850/1300 nm (OM4 - Optimized for 850nm VCSELs / higher speed).
