Specification

Main Input Voltage

230 V

Main Output Voltage

230 V

Rated power in W

960 W

rated power in VA

1600 VA

Product or component type

Uninterruptible power supply (UPS)

Input Connection Type

IEC 60320 C13

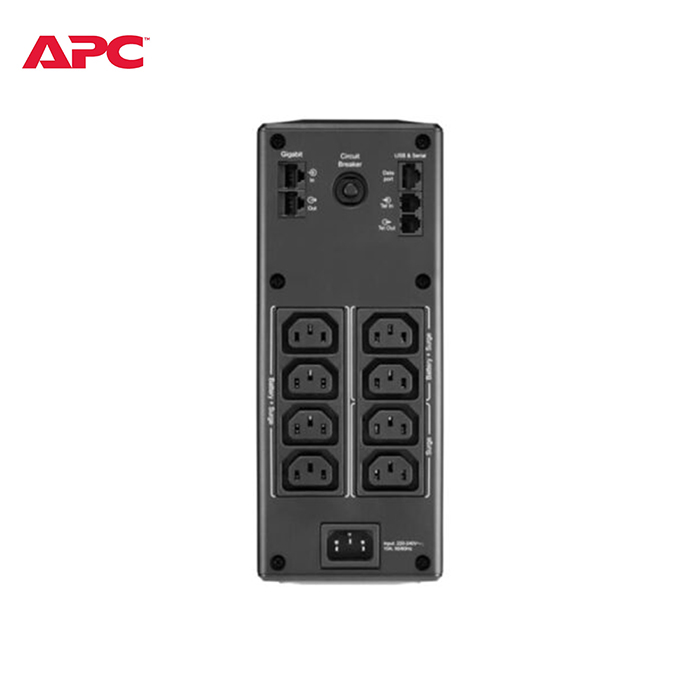

output connection type

6 IEC 60320 C13
2 IEC 60320 C13 surge

Battery type

Lead-acid battery

Range of product

Back-UPS Pro

Batteries & Runtime

รันไทม์

View Runtime Graph

ประสิทธิภาพ

View Efficiency Graph

Number of battery filled slots

0

Number of battery free slots

0

Battery recharge time

16 h

Number of battery replacement quantity

1

Battery voltage

24 V

Battery capacity

9.0 Ah

Battery charger power

11 W rated

Battery life

3…5 year(s)

Replacement battery

APCRBC166

Extended runtime

0

General

Provided equipment

user manual
USB cable

Number of power module free slots

0

Number of power module filled slots

0

Redundant

No

Physical

Colour

Black

Height

10 cm

Width

25 cm

Depth

38.2 cm

Net weight

10.9 kg

Mounting preference

No preference

Mounting mode

Not rack-mountable

Two post mountable

0

USB compatible

No

Input

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

176...294 V

Maximum input current

10 A

Switching current capacity

10 A

Output

Maximum configurable power in W

960 W

Output frequency

50/60 Hz +/- 1 Hz sync to mains

UPS type

Line interactive

Maximum configurable power in VA

1600 VA

Conformance

Product certifications

A-Tick
C-Tick
CE
EAC
RCM
TISI

Marking

GS Mark

Standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Environmental

Ambient air temperature for operation

0…40 °C

Relative humidity

0…95 % non-condensing

Operating altitude

0...10000 ft

Ambient air temperature for storage

-15…45 °C

Storage Relative Humidity

0…95 % non-condensing

Storage altitude

0.0000000000…15240.0000000000 m

Acoustic level

45 dBA

Heat dissipation

21.5 Btu/h

Communications & Management

control panel

Multifunction LCD status and control console

Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rate

509 J

Noise suppression

Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

Packing Units

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

33 cm

Package 1 Width

22.5 cm

Package 1 Length

48.5 cm

Package 1 Weight

11.65 kg

SCC14

10731304346910

Contractual warranty

Warranty

2 years repair or replace, 3 years repair or replace for European Union countries
