OVERVIEW

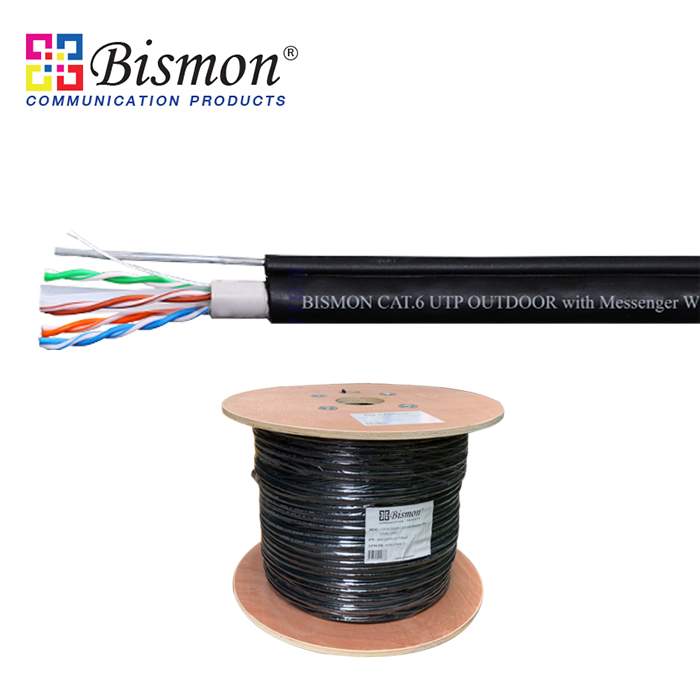

BISMON Category6 4 Pair UTP OUTDOOR with Messenger Wire and Double Jacket 23AWG solid bare copper(High-grade copper), Cable provides significant headroom above all TIA/EIA and ISO/IEC category 6/class E transmission performance specifications. combine our high-performance category 6 connectivity with Category 6 cable and use for backbone ethernet LAN gigabit network. It is designed for use in horizontal cabling situations and supplied in 305m (1,000ft) easy pull out reels. These category 6 systems exceed ANSI/TIA/EIA-568-B.2-1 Category 6 performance requirements, providing usable bandwidth well beyond 600 Mhz, UL 444 CMX type for Outdoor grade

Cat.6 UTP Outdoor Cable Double Jacket with Messenger Wire แบบมีลวดสลิง เพื่อสำหรับยึดจับสาย หรือ แขวนเสาไฟฟ้า เพื่อความสะดวกต่อการติดตั้ง

Applications

•  Broadband Video and voice, ISDN

•  Voice over Internet Protocol (VoIP)

•  Power over Ethernet (PoE)- IEEE 802.3af, IEEE 802.3at

•  Link for IP Camera and backbone network

•  Analog & Digital Voice, Analog & Digital Video

•  Support 10Gbps Gigabit Ethernet (55Meters)

STANDARD

•  Standards ISO/IEC 11801 Class E, ANSI/TIA/EIA 568-B.2-1

•  RoHs complies

•  PVC: IEC 60332-1, UL CMR, UL444 Standard CMX Type for Outdoor

•  LSZH: IEC 61034, IEC 60754, IEC 60332-1
