Wall Mount Outdoor Fiber optic 48-72 Core


Part number : B1-WM48-OUT

Brand : BISMON

Price : 6,068.00 Baht
(Dealer price can log-in/ Exclude Vat)

download pdf



OVERVIEW

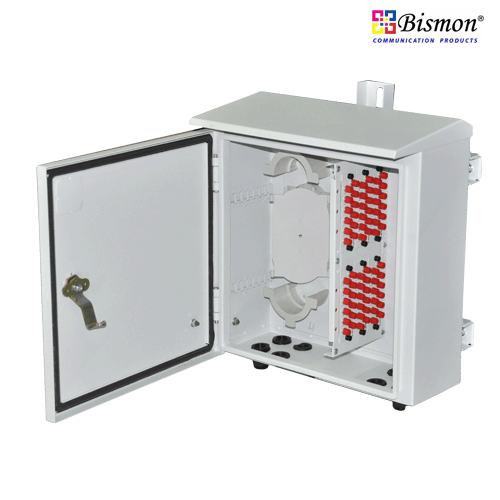

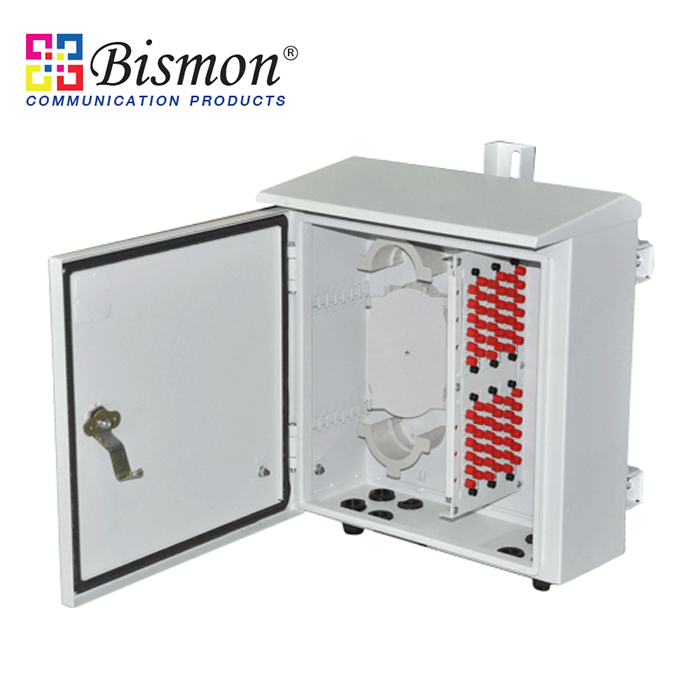

Wall Mount Outdoor Fiber optic 48-72 Core, Can use Snap-in plate and Single Plate 48 Core FC-Adaptor D-type of TOT style. maximum 72 Core ST/SC/FC/LC adaptor panel

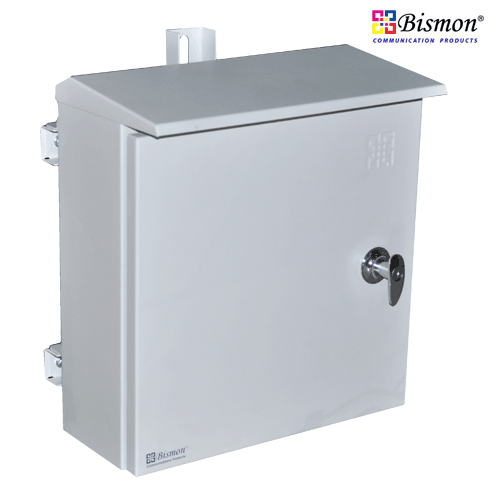

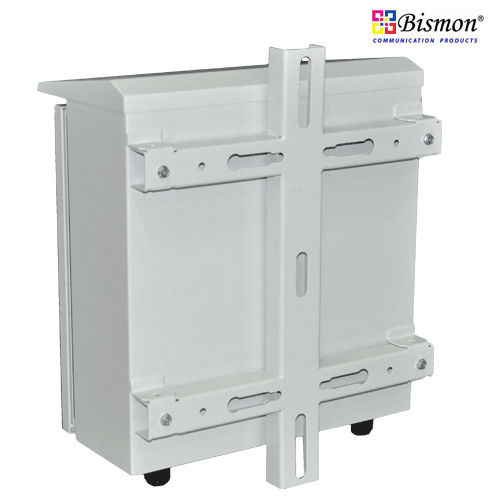

Wall-Mount Outdoor Fiber made of sheet steel 2 mm or stainless steel and powder coated 65 microns. They can compliant with IP55 or IP 65 standard. they can accommodate the fiber from12-72 fiber. Cable entry 4 port use cable glands PG16 (1 inch)depend on cable dia. The cable can be held the preformed holes by a 2 section cable inlet or cable feed-through grommet

Specification

Brand Bismon
Model B1-WM48-OUT
Equipment Type Wall Mount Enclosure
Size 380 mm x 413.5mm x 154mm (HighxWidthxDepth)
Standard Compliant IP55 or IP 65 standard.
Material (EG)-Electro Galvanised Steel
Application Can use for CCTV & IP Camera solution or other fiber optic solution
Features • One door lockable
  • Provided 4mm thickness foam for protection water and rustproof for body closure
  • All screw or nut made of stainless steel
  • Can Change one panel 48-72 port to snap-in plate 6 or 12 port
  • Can support Adaptor fiber optic type to FC-D type, SC, ST, LC
  • Can support splice tray 12 port maximum 5 ea

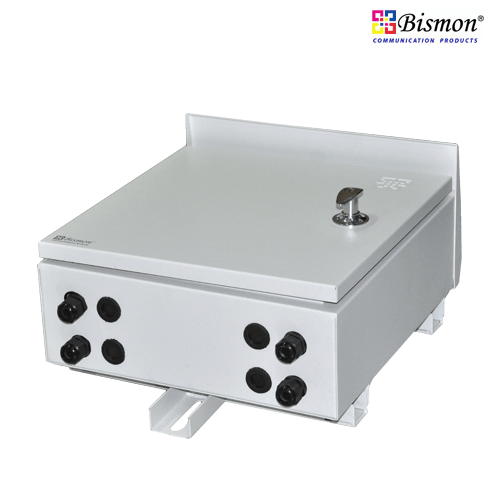

  • 4 IN/ 4 OUT for cable entry dia:1 inch(Cable glands:PG16)
  • Have L shape panel hole for lock cable entry and Out
Option (Made to order) -



- One door lockable - All screw or nut made of stainless steel - Can use Snap-in plate standard or Single plate 48 Core TOT - Support max: splice tray 12 or 24 core up 6 pcs. - 4 IN/ 4 OUT for cable entry dai: 1 inch (Cable grand : PG16)

Product Review



Related Product in - Wall Mount Enclosure Outdoor (48-60F)


Wall-mount-Outdoor-for-CCTV-ตู้กันน้ำสำหรับงานระบบ-CCTV

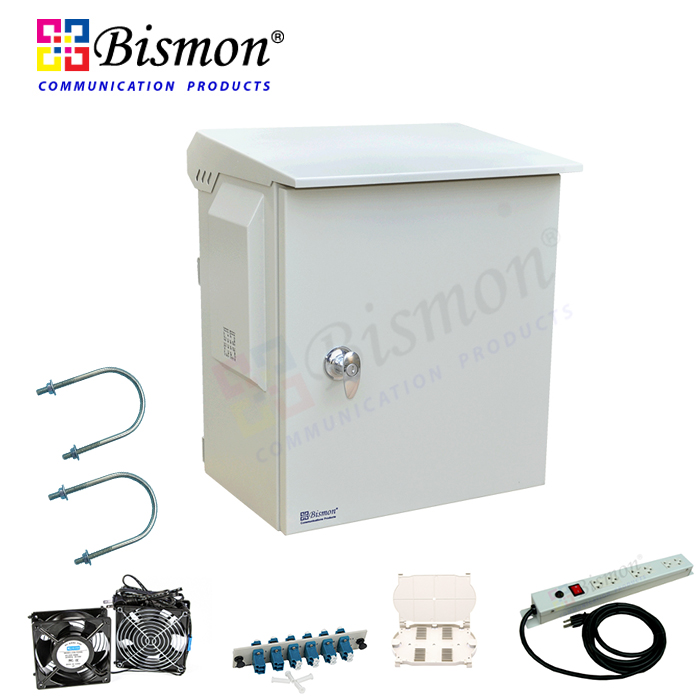

Wall mount Outdoor for CCTV (ตู้กันน้ำสำหรับงานระบบ CCTV)
