Wall Mount Outdoor Fiber optic Double Layer(Pilot Lamp)(600x440x220mm)

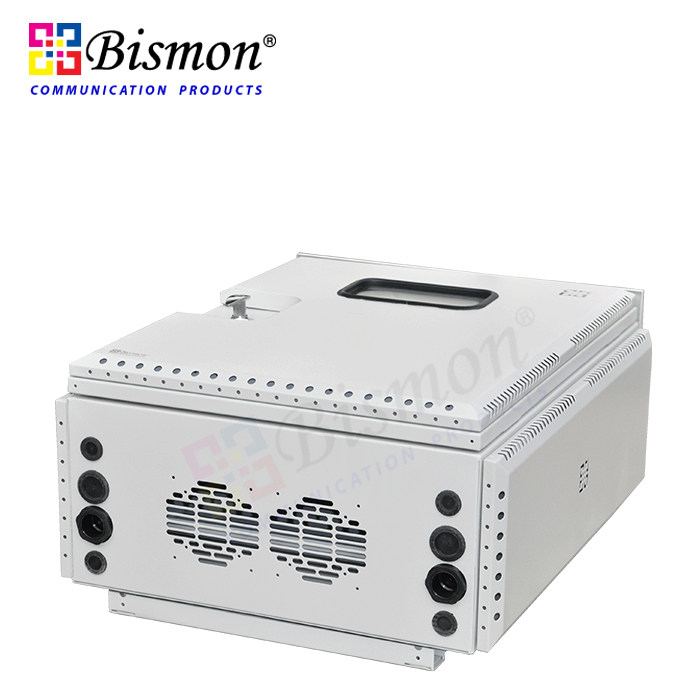

Wall-Mount Outdoor Fiber Optic made of EG(Electro-Galvanized) steel high quality and a long time for use. They can compliant with IP55 or IP 65 standard. they can accommodate the fiber from 12-96 fiber. Cable entry 8 port use cable glands EG/PG29 depending on cable dia. The cable can be held in the preformed holes by a 2 section cable inlet or cable feed-through grommet, Pilot lamp show status.
Brand
Bismon
Model
B1-WM96-OUTR642L
Equipment Type
Wall Mount Outdoor for CCTV Double layer with Pilot-Lamp
Size
600 mm x 440 mm x 220 mm (HighxWidthxDepth)
Standard
Compliant IP55 standard.
Material
(EG)-Electro Galvanised Steel Thick 1.0mm
Application
Can use for CCTV & IP Camera solution or other fiber optic solution
Features

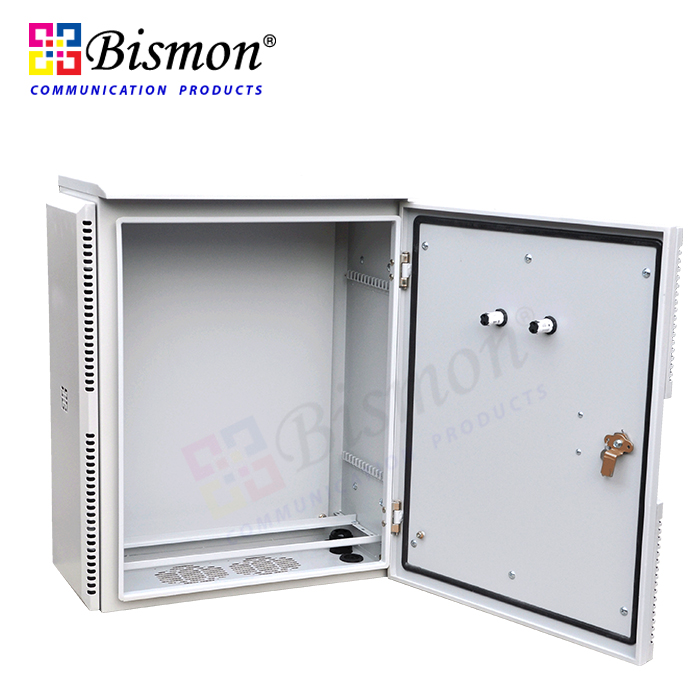

• One door lockable and Double Layer steel sheet protech UV,

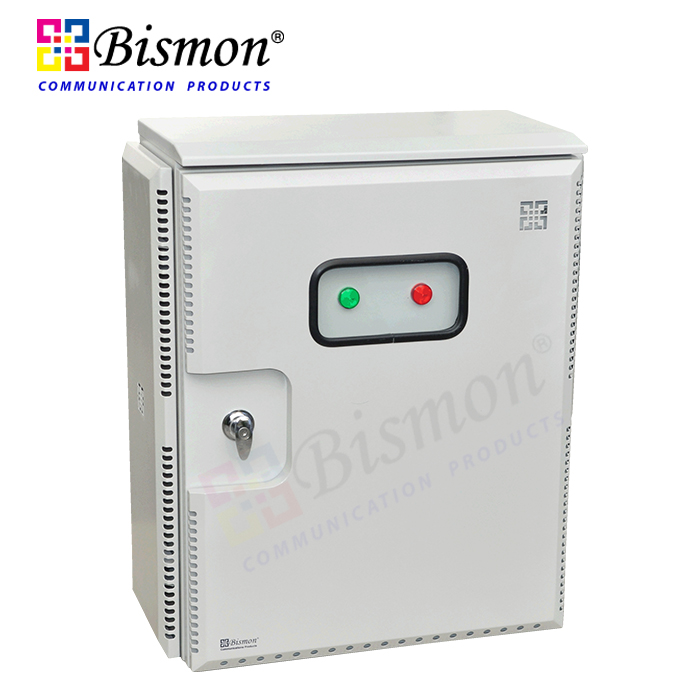

• 2 Pilot Lamp show status LED and GREEN/RED Color in side the cabinet outdoor
• Double folded gutter at door frame to increase rigidity and prevents water from entering while door is opened.
• Provided 4mm thickness CNC foam gasket for protection waterproof for body closure

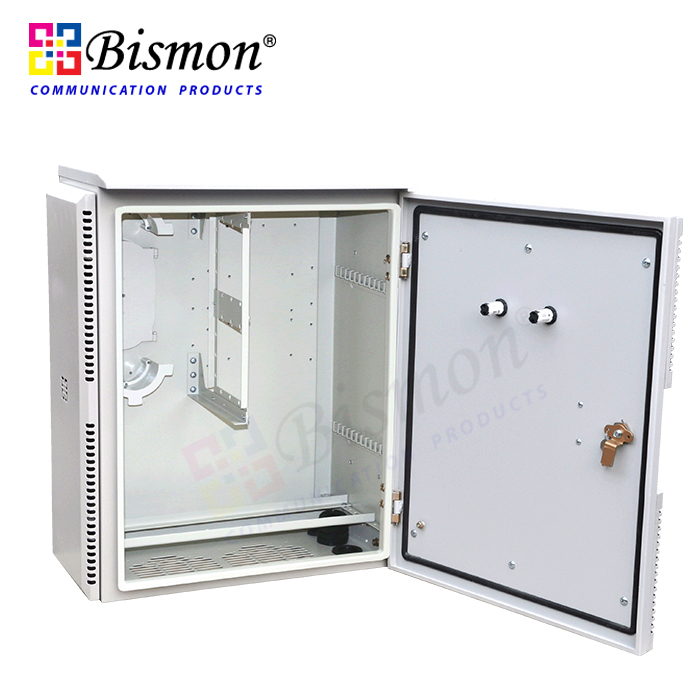

• 4 welded studs for fixing mounting plate and service equipment inside.
• Surface finished cabinet with epoxy polyester coating color outdoor type.
• All screw or nut made of stainless steel
• Can Change one panel 12-96 port Max. Capacity use for snap-in plate 6 or 12 port
• Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 8 pcs
• Can support splice tray fiber optic 12 or 24 port maximum 8 ea
• Can support FAN 2x4” (4x4inch) for air flow
• Complete set tools for hang on pole and support 4 hole for wall type
• Can support steel plate for stand UPS 500-1000VA below wall box
• Can support hinges provide 130 deg. door opening.
Option (Made to order)
-
Brand
Bismon
Model
B1-WM96-OUTR642L
Equipment Type
Wall Mount Outdoor for CCTV Double layer with Pilot-Lamp
Size
600 mm x 440 mm x 220 mm (HighxWidthxDepth)
Standard
Compliant IP55 standard.
Material
(EG)-Electro Galvanised Steel Thick 1.0mm
Application
Can use for CCTV & IP Camera solution or other fiber optic solution
Features
• One door lockable and Double Layer steel sheet protech UV,
• 2 Pilot Lamp show status LED and GREEN/RED Color in side the cabinet outdoor
• Double folded gutter at door frame to increase rigidity and prevents water from entering while door is opened.
• Provided 4mm thickness CNC foam gasket for protection waterproof for body closure
• 4 welded studs for fixing mounting plate and service equipment inside.
• Surface finished cabinet with epoxy polyester coating color outdoor type.
• All screw or nut made of stainless steel
• Can Change one panel 12-96 port Max. Capacity use for snap-in plate 6 or 12 port
• Can support Adaptor fiber type to FC-D type, SC, ST, LC, Max:snap-plate 8 pcs
• Can support splice tray fiber optic 12 or 24 port maximum 8 ea
• Can support FAN 2x4” (4x4inch) for air flow
• Complete set tools for hang on pole and support 4 hole for wall type
• Can support steel plate for stand UPS 500-1000VA below wall box
• Can support hinges provide 130 deg. door opening.
